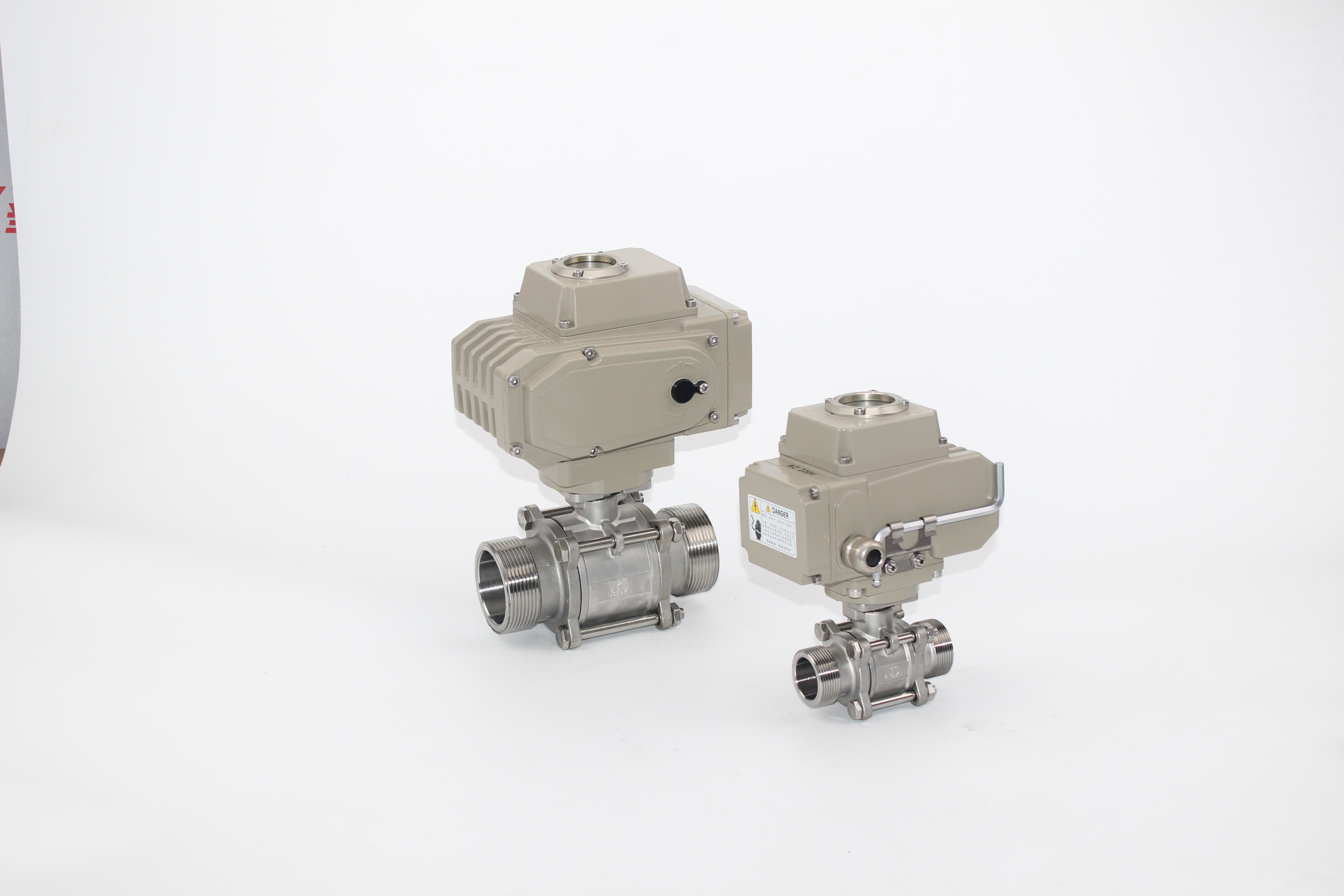

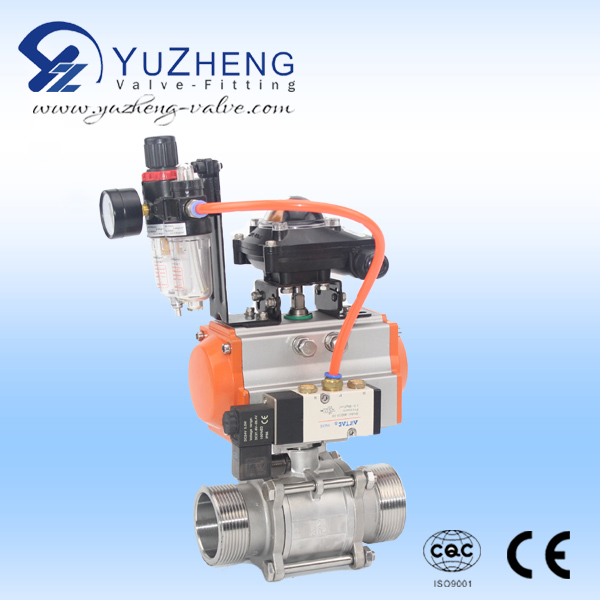

3PC Stainless Steel Thread Ball Valve With Actuator

Availability:
Quantity:
  • Q11F

Material: Stainless steel 304 316,WCB
Size: DN15-DN100(1/2"-4")
Working pressure: 1000WOG
Bore: Full Bore
Connection type: Thread,BSP,BSPT,NPT(Female)/BW/SW/Flanged/Clamped
Operation: Manual or Actuator
Suitable media: Water, oil, air and some corrosive liquids
The specifications can be designed and satisfied for customers' special requirement

Product name 3PC Stainless Steel Thread Ball Valve With Actuator
Material SS304, 304L, 316, 316L
Size 1/4-4&DN6-DN100
Certificate ISO9001: 2000,CE
Working pressure 1000psi(6.4MPa)
Connection Ends Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW).
Suitable medium Water, gas, air and some corrosive liquid
Temperature Range -20-300 degree C
Investment casting body and cap
Sealing PTFE, RPTFE, PPL
stem SS304,SS316   Adjustable stem packing,
Locking option
Our advantage Survival by quality and development by credibility.
Quality first, customer upmost !

100% leakage tested at 100 psi air under water

Blow-out proof stem, ball are made of ss316 or customer request

Pure Teflon seals and seats

Can do OEM products
Delivery time usually 30 days around and can negotiate as per order qty
Shipping port Ningbo , Shanghai
Term of Payment 30% TT deposit, the balance against copy of B/L
Package detail Inner CTN, outside plywood case
Guarantee Period 18 monthes
Capacity to produce 100,000 PCS/week

BALL VALVEPACKAGEPRODUCTION FLOWPRODUCTION LINE
