ALL PRODUCTS

  • DIN Flanged Ball Valve with Pneumatic Actuator And Solenoid Valve
    The working principle of stainless steel pneumatic ball valve is to rotate the valve to unblock or block the valve. Pneumatic ball valve switch light, small size, can be made into a large diameter, reliable sealing, simple structure, convenient maintenance, sealing surface and the sphere is often in the closed state, not easy to be washed away by the medium, has been widely used in various industries.
    Model:
  • Stainless Steel Insulated Ball Valve
    Insulated ball valve is a kind of valve, general horizontal installation, it and flange gate valve is a type, the closing part is a ball, the ball around the center line of the valve body for rotation to achieve opening and closing. Ball valve in the pipeline is mainly used to cut off, distribution and change the direction of the flow of the medium.
    Model:

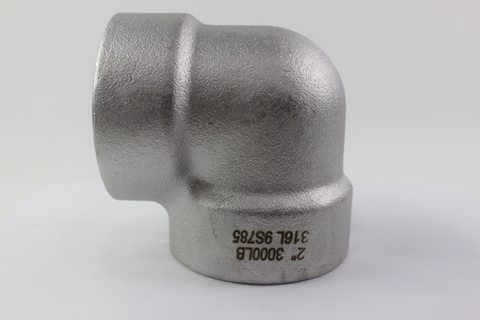

  • Stainless Steel 90 Degree Elbow
    Elbow is a common connection pipe fitting in plumbing installation, used for the connection of the pipe bend, used to change the direction of the pipe.
    Other names :90° elbow, right Angle bend, love bend, stamping elbow, pressing elbow, mechanical elbow, welding elbow, etc.
    Purpose: To connect two pipes with the same or different nominal diameters, so that the pipes can make turns of 90°, 45°, 180° and various degrees.
    Model:
  • SS Gate Valve with Extension Spindle
    The extended rod gate valve is one of the commonly used block valves, which is mainly used to put through or cut off the medium in the pipeline; Especially suitable for medium and large diameter pipe. The stem of the soft seal gate valve drives the stem of the gate to lift together. The transmission thread on the stem is outside the valve body. Therefore, the opening and closing and position of the gate can be determined intuitively according to the direction and position of the valve stem, and the transmission thread is easy to lubricated and free from fluid corrosion, but it requires a large installation space.
    Features:
    Valve stem lengthening, convenient for high position operation;
    Smooth channel, flow coefficient is small;
    Reliable sealing, light and flexible operation
    Model:
  • SS 3 PC Clamp Ball Valve with Mounting Pad (New Type)
    Quick ball valve with internal and external polishing treatment, for food, medicine and other health conditions. There are two control modes: switch type and regulator type. Full diameter sanitary ball valve basically no flow resistance; Simple structure, small volume, light weight; Tight and reliable, it has two sealing surface, and the sealing surface material of the ball valve is widely used in various plastics, good sealing, can achieve complete sealing
    Model:
  • Stainless Steel Table Front Check Valve
    1. Check valve refers to a valve whose opening and closing part is a round disc and acts to block the backflow of media by its own weight and medium pressure. It is an automatic valve, also known as check valve, check valve, return valve or isolation valve. The motion mode of valve disc is divided into lifting type and swing type. Lift check valves are similar in construction to globe valves, except that they lack a stem that drives the disc.
    2, the medium from the inlet end (lower side) into, from the outlet end (upper side) out. The valve is opened when the inlet pressure is greater than the sum of disc weight and flow resistance. On the contrary, the valve is closed when the medium flows back.
    3. Swing check valves have an oblique disc that rotates about the shaft and work in a similar way to lift check valves. The check valve is often used as the bottom valve of the pumping device to prevent the return of water. The combination of the stop valve and the stop valve can play the role of safety isolation. The disadvantage is that the resistance is large and the sealing is poor when closed.
    Model:
  • Stainless Steel H74w Check Valve
    H74H type sandwich check valve main performance and characteristics:
    1. For clip-type connection, it can save cost and be affordable.
    2. The raft flap has short stroke, small volume and short length.
    3. Suitable for narrow space working condition, easy to install.
    4. The impact force is small when closed, and the pressure of the water hammer is small.
    Working principle:
    Is a super thin check valve, it has the advantages of simple structure, beautiful appearance, light weight, convenient installation, etc. Mainly applicable to the water supply system, petroleum, chemical, metallurgy and other industrial sectors, the installation space is more suitable for the place. It's a valve that automatically stops the flow from going back. The disc of the check valve opens under the action of fluid pressure, and the fluid flows from the inlet side to the outlet side.
    Structure and Use
    H74H sandwich check valve is a kind of ultra-thin check valve, it has the advantages of simple structure, beautiful appearance, light weight, easy installation and so on. H74 type Ⅰ, type Ⅱ clamping disc type check valve produced by our factory is a kind of ultra-thin shape check valve, it has the advantages of simple structure, beautiful appearance, light weight, convenient installation and so on. The valve is mainly suitable for water supply system, petroleum, chemical industry, metallurgy and other industrial sectors to have installation space limit place is suitable for the most.
    Installation should pay attention to the following things:
    1. Do not make the check valve bear weight in the pipeline. The large check valve should be supported independently, so that it is not affected by the pressure produced by the pipe system.
    2. When installing, pay attention to the direction of the flow of the medium and the direction of the arrow of the valve body.
    3. The lifting vertical flap check valve should be installed on the vertical pipe.
    4, lift type horizontal flap check valve should be installed on the horizontal pipe.
    Features:
    1, the valve structure length is short, suitable for the position of narrow space.
    2, swing valve disc structure, fluid resistance is small.
    3. Depending on the medium pressure, the valve disc is opened under pressure and automatically closed without pressure.
    4, suitable for water, steam, oil and so on.
    Advantages:
    Is a super thin check valve, it has the advantages of simple structure, beautiful appearance, light weight, convenient installation, etc. Mainly applicable to the water supply system, petroleum, chemical, metallurgy and other industrial sectors, the installation space is more suitable for the place. It's a valve that automatically stops the flow from going back. The disc of the check valve opens under the action of fluid pressure, and the fluid flows from the inlet side to the outlet side.
    Model H74H is standard for sandwich check valves
    Flange connection dimensions
    Length of structure
    Pressure test
    DIN, ANSI, GB (suitable for China)
    DIN, ANSI
    API 598
    H74H type sandwich check valve main performance and characteristics:
    1. For clip-type connection, it can save cost and be affordable.
    2. The raft flap has short stroke, small volume and short length.
    3. Suitable for narrow space working condition, easy to install.
    4. The impact force is small when closed, and the pressure of the water hammer is small.
    Model:
  • Stainless Steel Table Front Ball Valve
    Table valve generally use ball valve, table valve after the cone type plunger valve.
    Advantages of ball valve
    Simple structure, small volume, light weight.
    Fluid resistance is small, full diameter ball valve basically no resistance.
    Good sealing performance. The ball valve has two sealing surfaces, and the sealing of the hard sealing ball valve is manually ground, until the spool and the sealing ring can be used. Like the corrosion resistant ball valve, the valve body cavity will be widely used a variety of plastics, good sealing performance, in the vacuum environment has been widely used.
    Easy to operate. As a switch, cut off or change the flow of the medium of the valve, in use only need to rotate 90 degrees can, and the torque is small.
    A wide range of applications and applications. Ball valve diameter from small to a few millimeters, large to a few meters, from really high altitude to high pressure can be used. Moreover, ball valves have been widely used in petroleum, chemical industry, power generation, paper making, atomic energy, aviation and rocket fields.
    Model:
