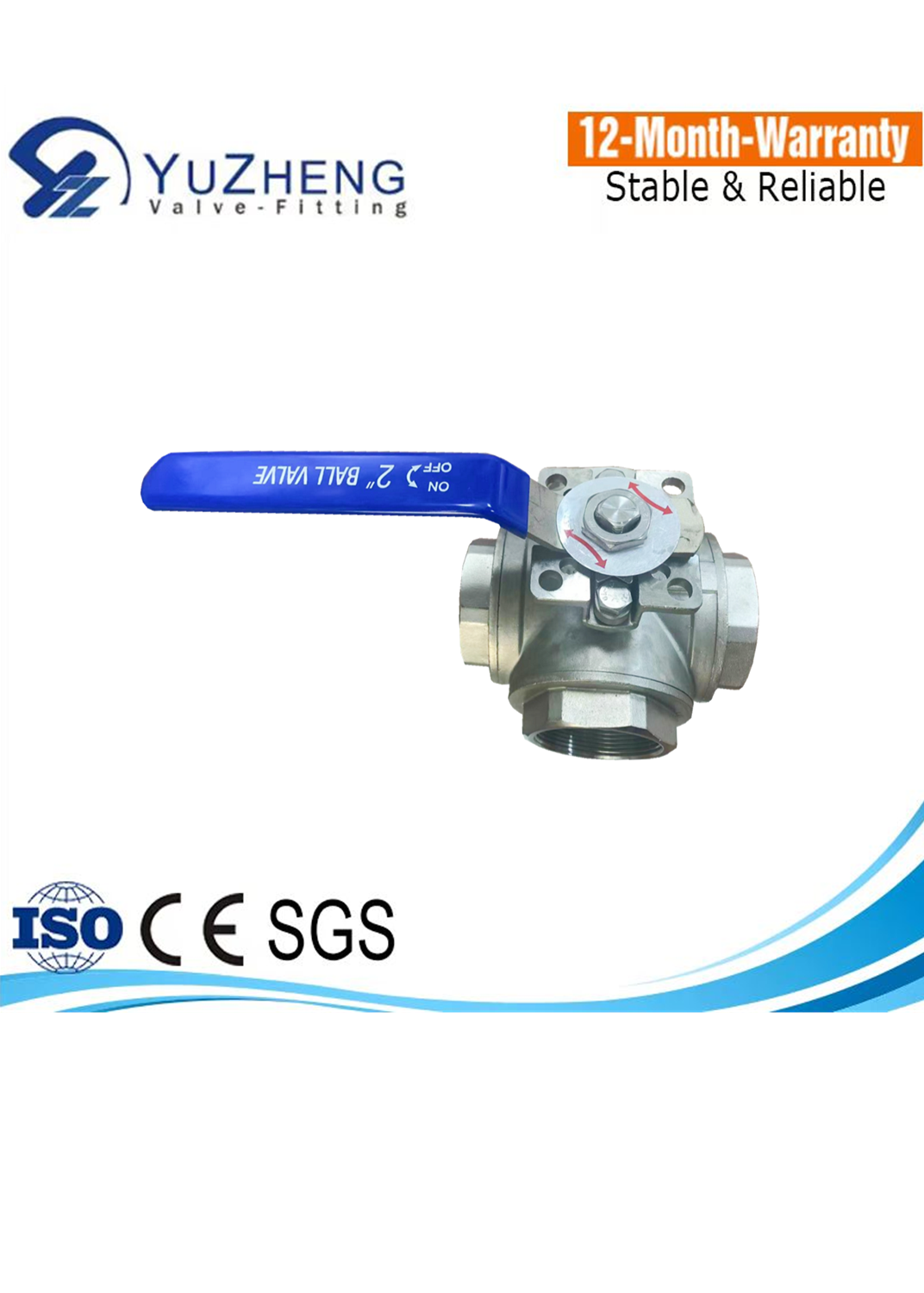

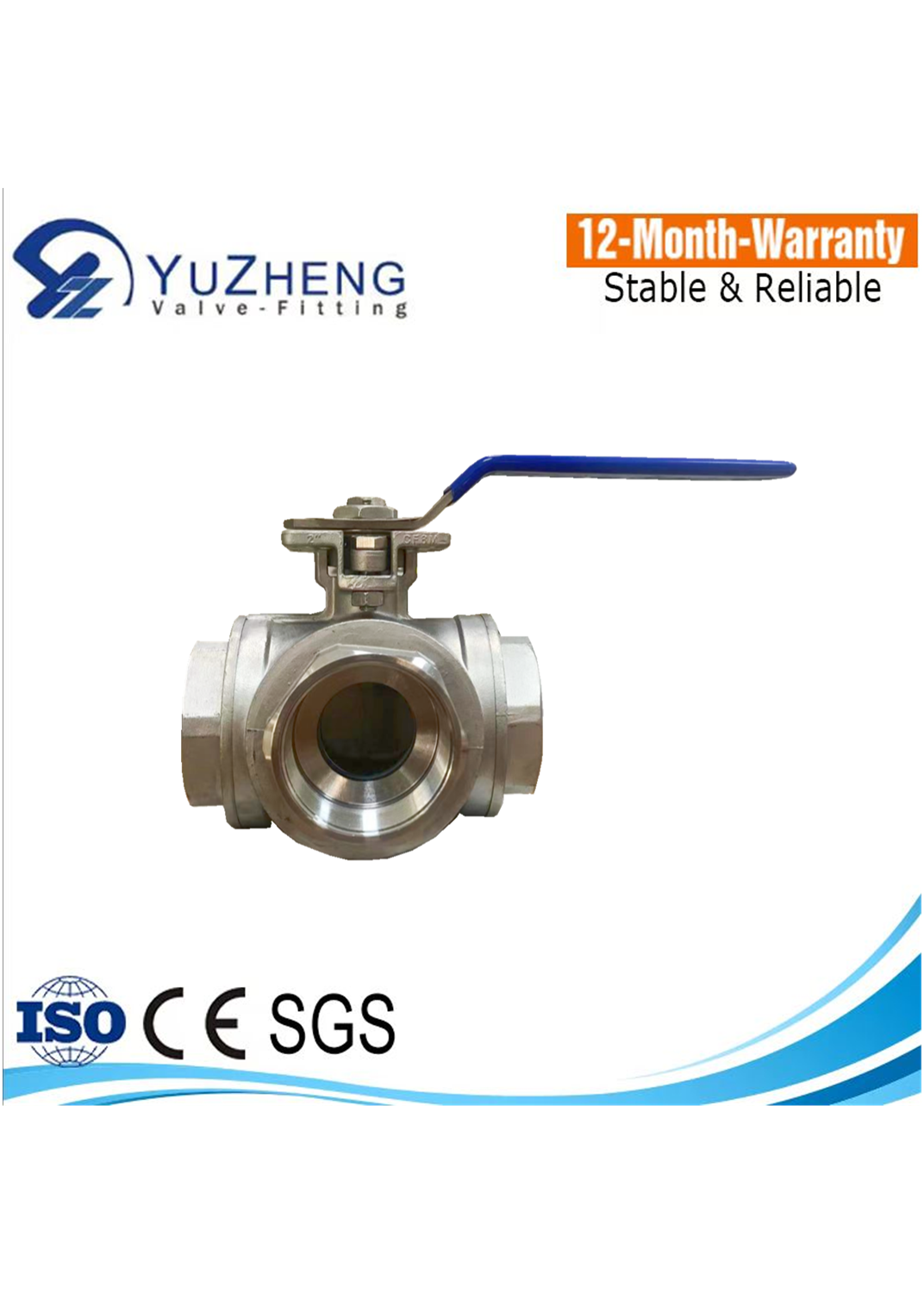

4-WAY BALL VALVE WITH HIGH MOUNTING PAD

High platform ball valve is a relatively new type of ball valve, it has some advantages unique to its own structure, such as frictionless switch, seal is not easy to wear, opening and closing moment is small. In this way, the specification of the actuator can be reduced. With multi - rotation electric actuator, the medium can be adjusted and cut off. Widely used in petroleum, chemical industry, urban water supply and drainage requirements of strict cut off conditions.
Availability:
Quantity:
  • Q11F

  • YuZheng

Size: 1/4~4"
Working pressure: 1.6-6.4mPa
Temperature range: -20°C ~ 232°C ~ 350°C
Suitable medium: water, oil, air, some corrosive liquid
Thread type: ZG.G, NPT, BSPT, BSP, DIN259/2999

We can also manufacture similar products according to your special requirements


The new high-platform ball valve is easy to maintain, and the ball valve has a simple structure. When the stem leaks, the gland can be tightened to achieve the effect of no leakage. When the actuator is installed, it is not necessary to remove the actuator to solve the leakage problem, saving time and manpower cost


Product name 3PC STAINLESS STEEL BALL VALVE With New type ISO Pad
Material SS304, 304L, 316, 316L
Size 1/4-4&DN6-DN100
Certificate ISO9001: 2000,CE
Working pressure 1000psi(6.4MPa)
Connection Ends Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW).
Suitable medium Water, gas, air and some corrosive liquid
Temperature Range -20-300 degree C
Investment casting body and cap
Sealing PTFE, RPTFE, PPL
stem SS304,SS316   Adjustable stem packing,
Locking option
Our advantage Survival by quality and development by credibility.
Quality first, customer upmost !

100% leakage tested at 100 psi air under water

Blow-out proof stem, ball are made of ss316 or customer request

Pure Teflon seals and seats

Can do OEM products
Delivery time usually 30 days around and can negotiate as per order qty
Shipping port Ningbo , Shanghai
Term of Payment 30% TT deposit, the balance against copy of B/L
Package detail Inner CTN, outside plywood case
Guarantee Period 18 monthes
Capacity to produce 100,000 PCS/week

PACKAGEPRODUCTION FLOWproduction line2
