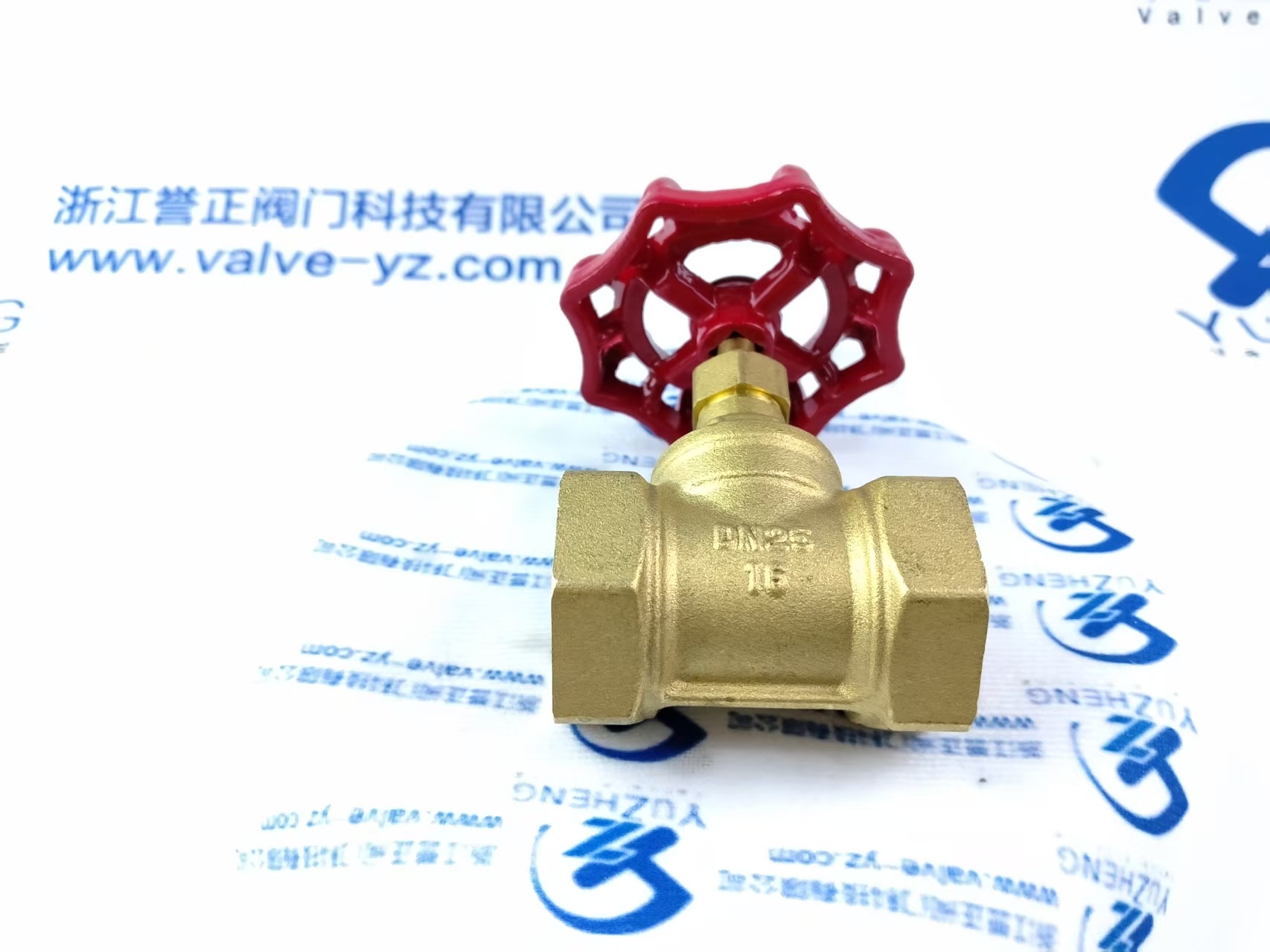

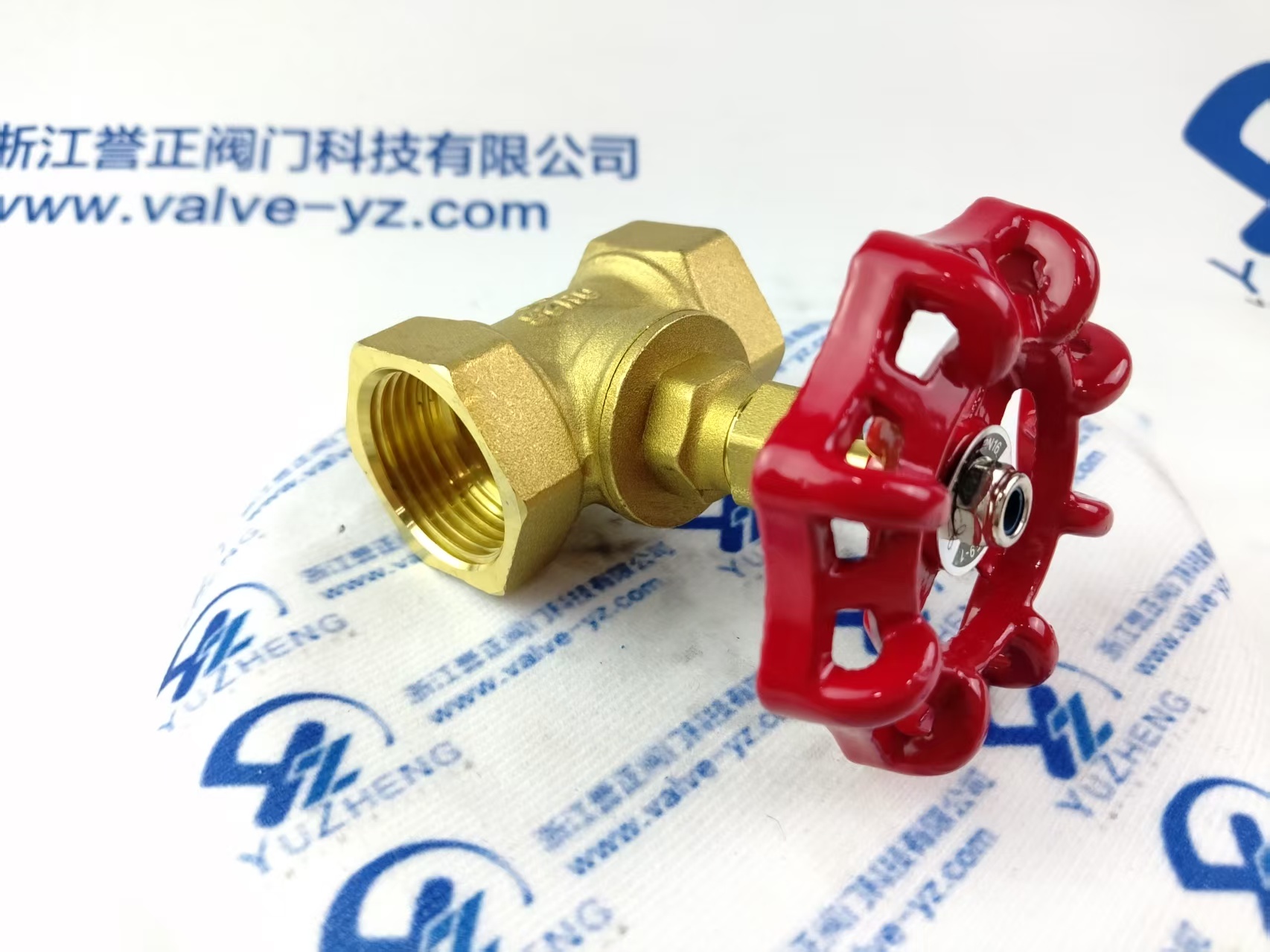

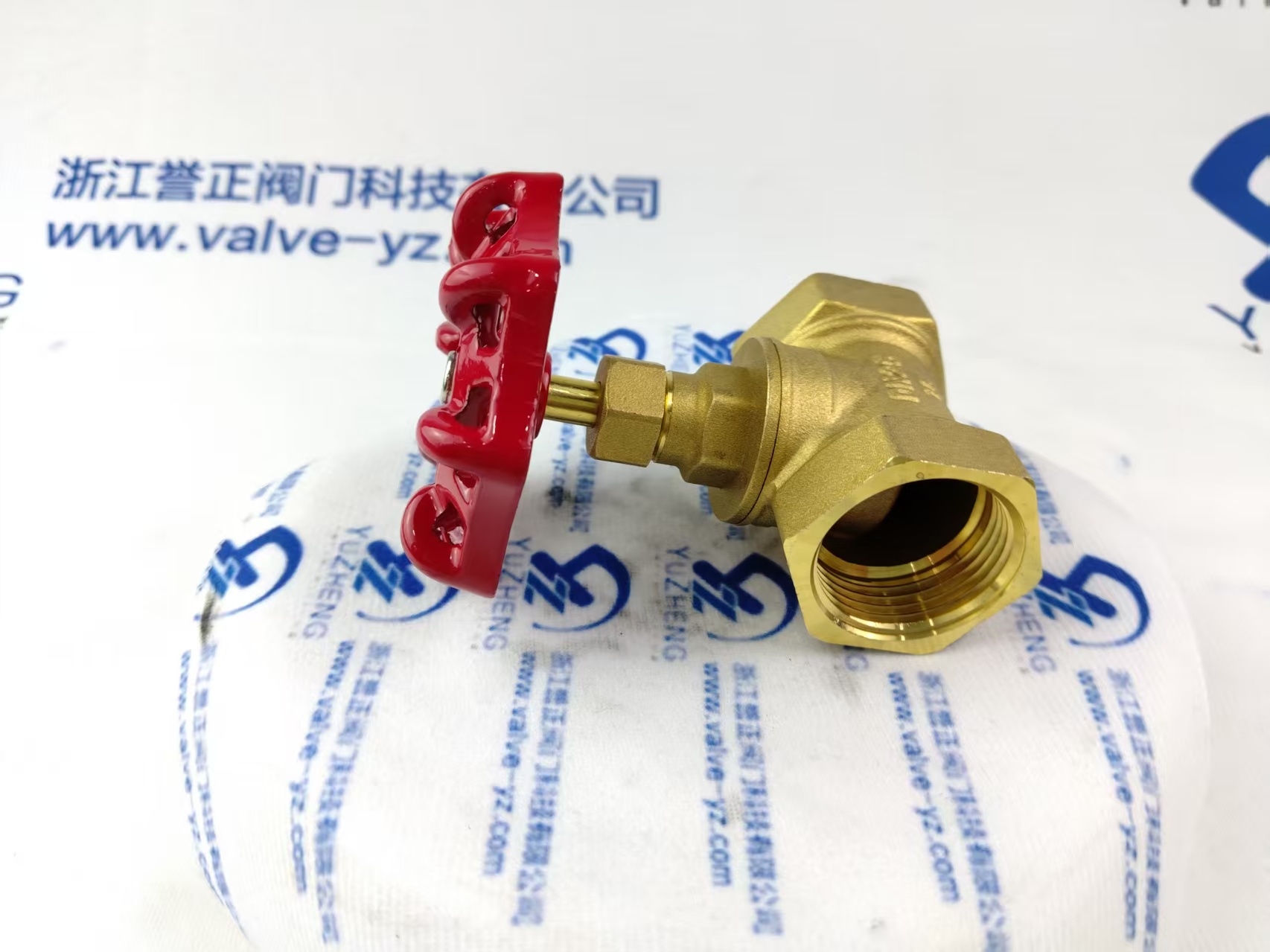

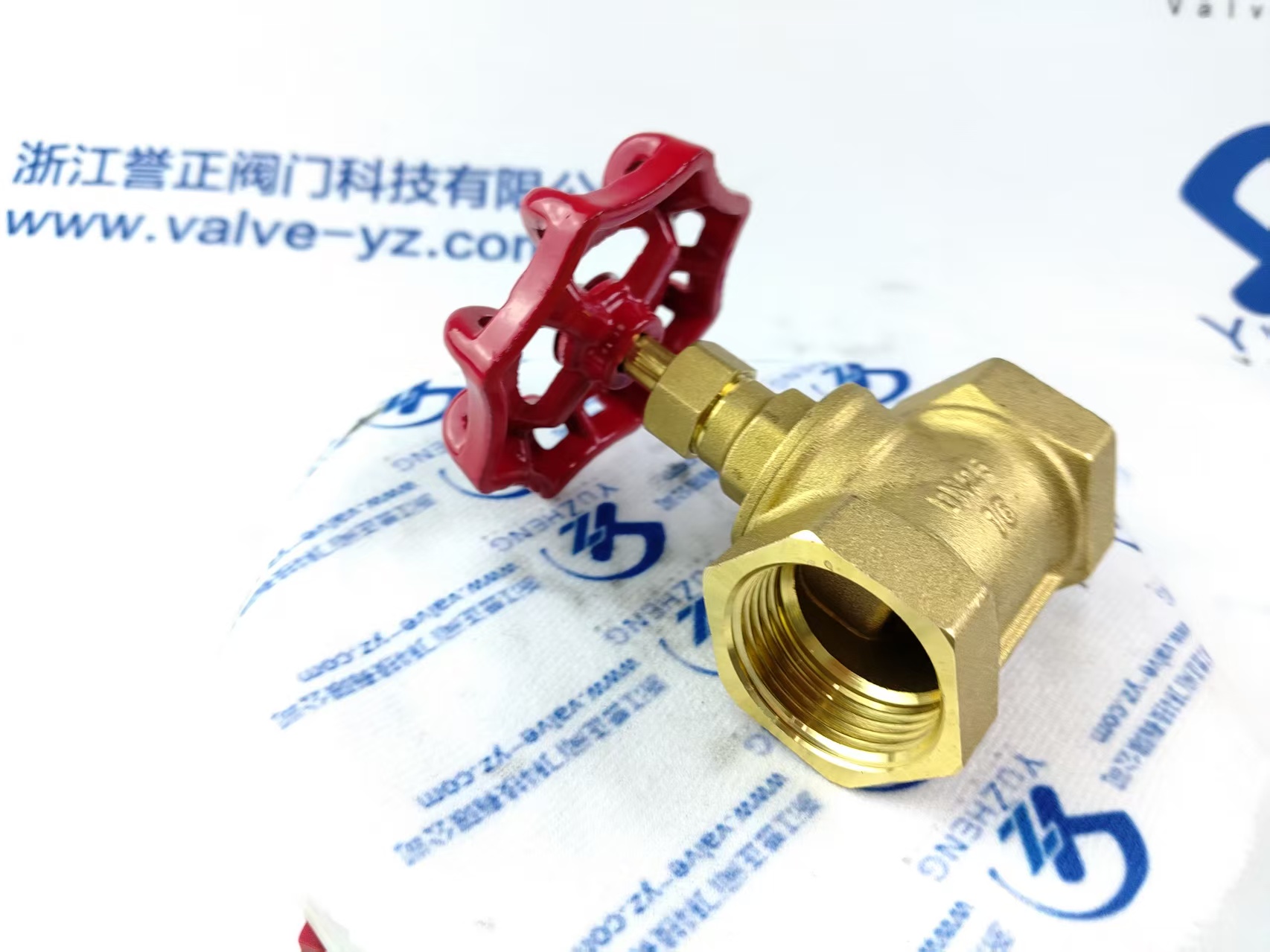

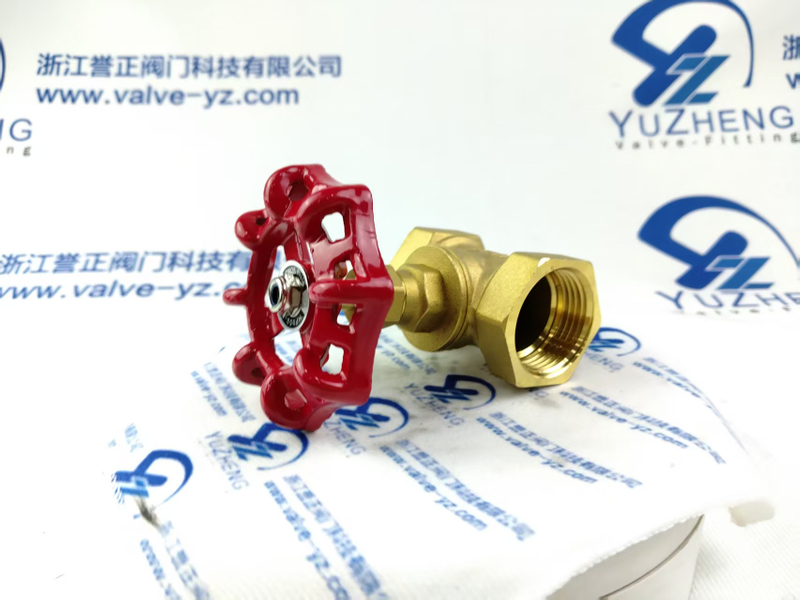

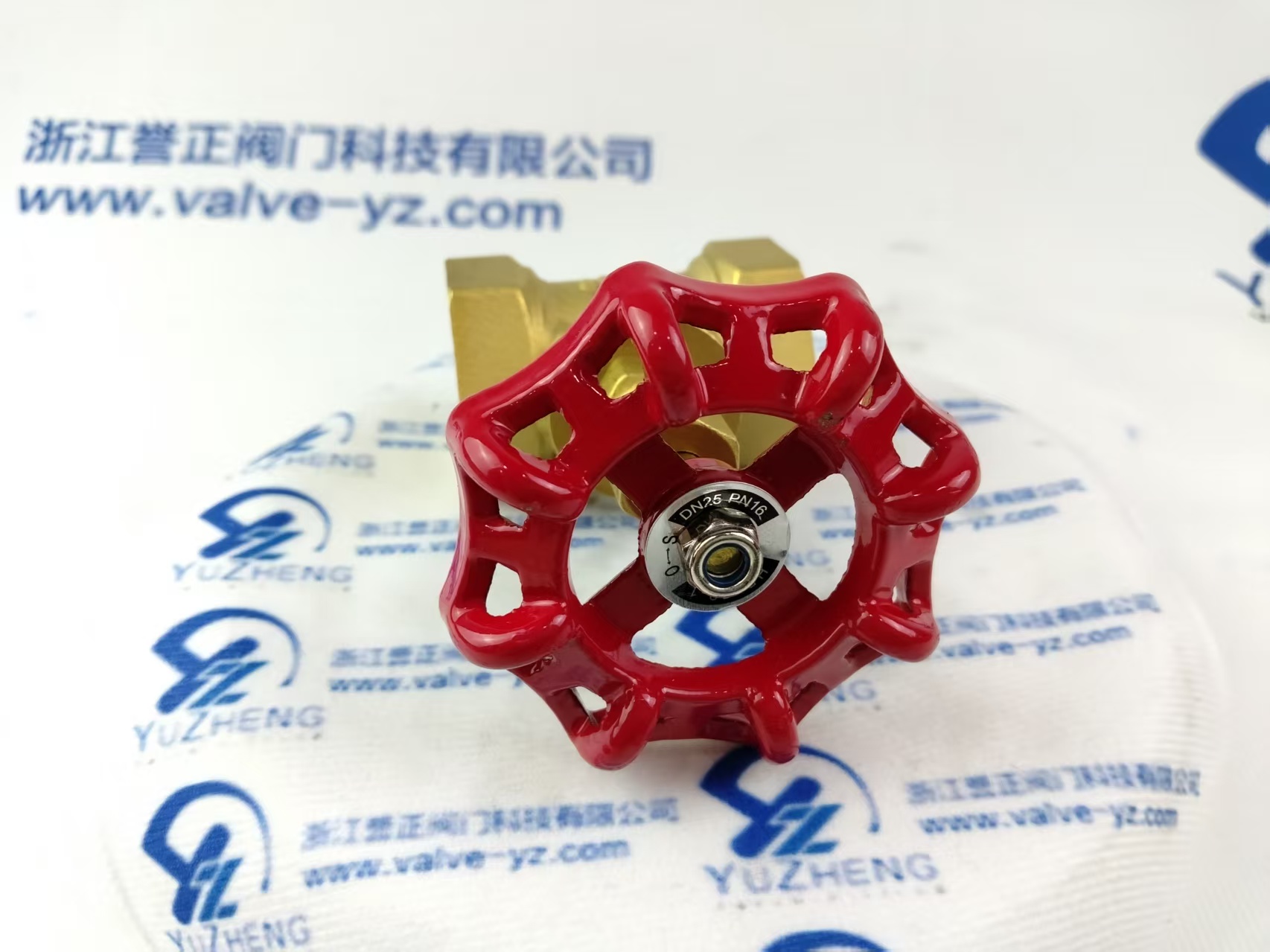

Brass Female Thread Globe Valve

Product name

Brass Female Thread Globe Valve

1)Material

Body:Forged brass; Handwheel:Cast iron with red coating; Stem:Brass; Disc:Brass

2)Size

DN25(1") marked on valve body; DN15/DN20/DN32/DN40/DN50 optional

3)Certificate

ISO9001, CE

4)Working pressure

PN16(1.6MPa)

5)Connection Ends

Internal BSP/NPT threaded ends

6)Suitable medium

Tap water, natural gas, non-corrosive industrial liquid

7)Temperature Range

-10℃ ~ 120℃

8)Body Process

Hot forging brass body, fine polished surface, smooth inner bore without casting sand hole

9)Sealing

Metal hard sealing, optional PTFE soft seal

10)Structure

Screw stem structure, red cast iron handwheel for manual opening & closing

11)Function

Cut off or regulate medium flow in water & gas pipeline

Our advantage

Survival by quality and development by credibility.

Quality first, customer foremost !

100% underwater air leakage test at 100 psi

High-density forged brass, anti-rust & no leakage

Wear-resistant valve core, long service life

OEM customization available

Delivery time

around 30 days, negotiable according to order quantity

Shipping port

Ningbo, Shanghai

Term of Payment

30% TT deposit, balance payment before shipment

Package detail

inner CTN, outside ply-wooden case

MOQ

10 PCS/size

Guarantee Period

18 months
