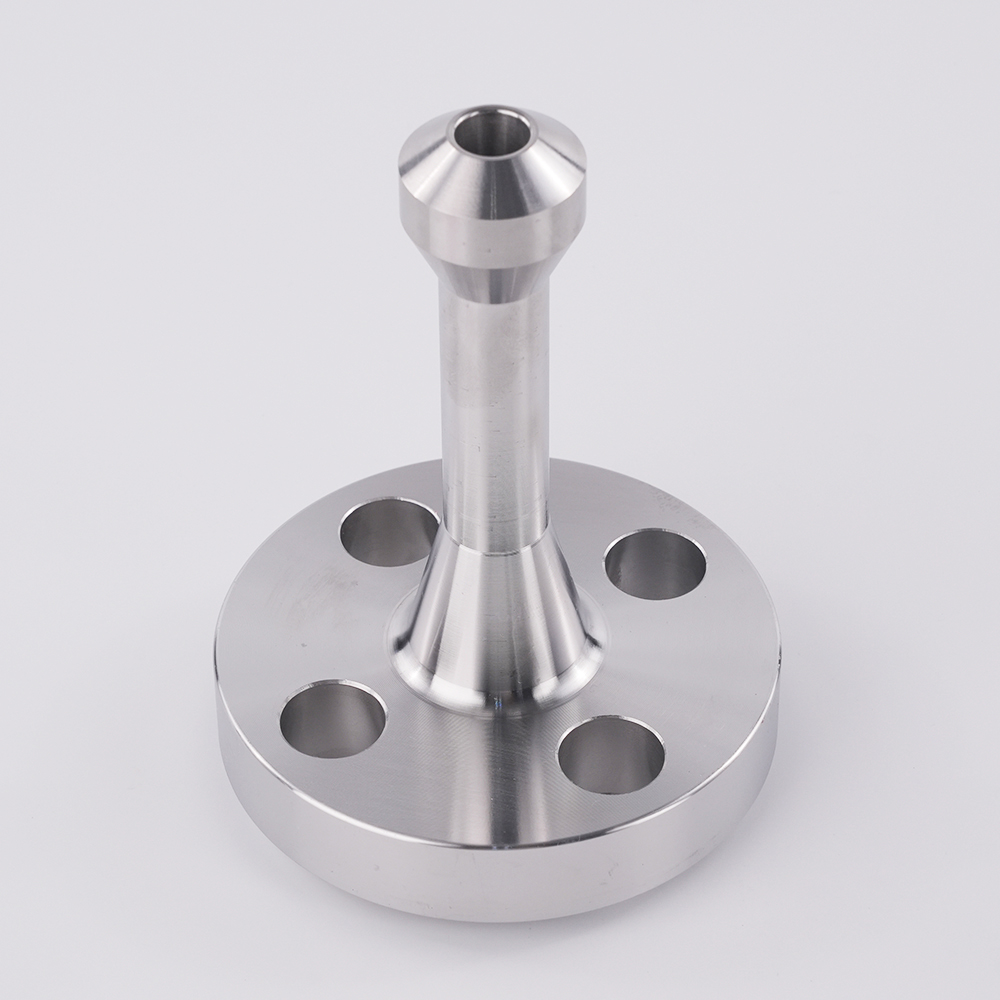

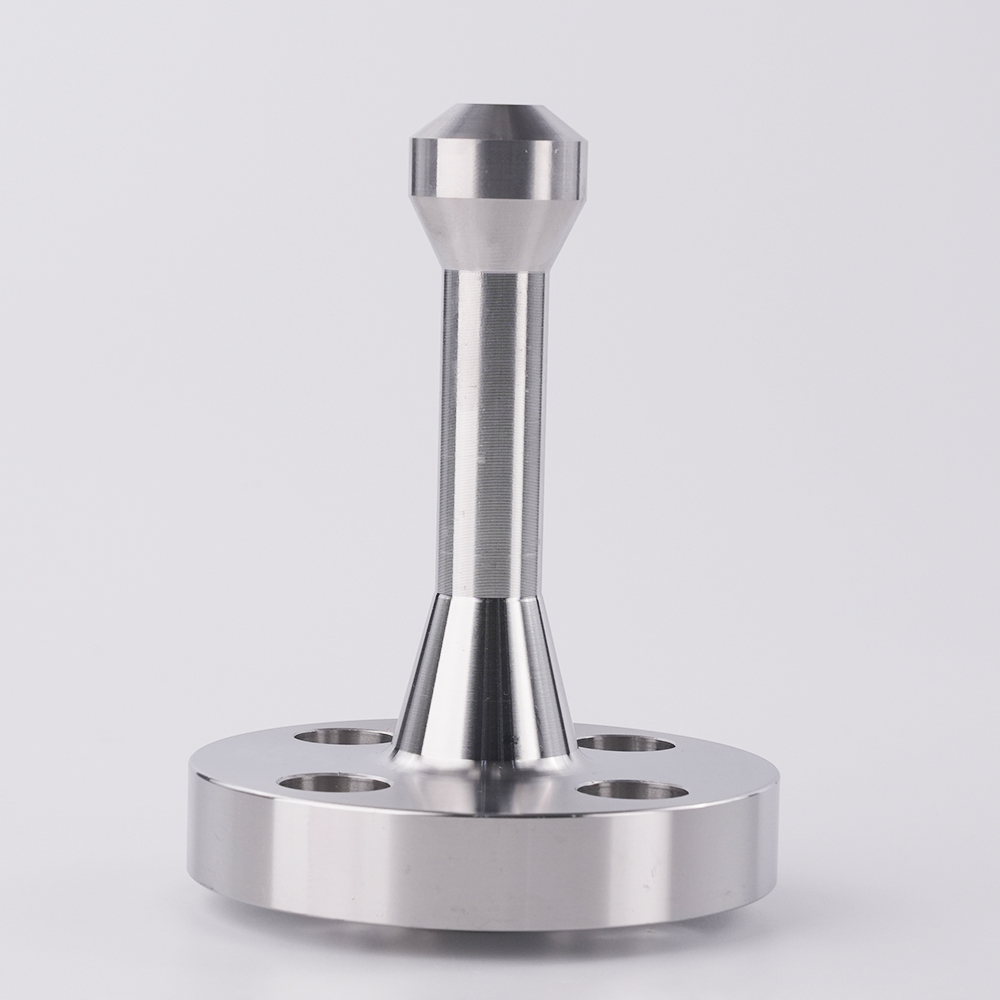

High Pressure Flange Type Pressure Take-off Nipple

Product name

High Pressure Flange Type Impulse / Pressure Take-off Nipple

Model

Flange Impulse Nipple Series

Material

SS304 / SS316L Stainless Steel

Connection

Flange base + extended pressure tapping end, customizable thread or spherical sealing tip

Pressure Rating

PN160 / PN250 / Class1500 high pressure specification optional

Structure

Integrated CNC one-piece forming, long neck transition design, standard flange bolt holes, spherical sealing head

Applicable Medium

Oil, gas, water, steam, weak corrosive fluid; instrument pressure sampling pipeline

Temperature Range

-40℃ ~ 450℃

Processing

Precision CNC integral turning, smooth transition surface, deburred, high dimensional concentricity

Seal Form

Spherical metal hard seal, matched with instrument gauge / needle valve

Function

Pressure extraction & signal transfer for pressure transmitters, gauges and instrument piping

Our advantage

Survival by quality and development by credibility.

Quality first, customer foremost !

Full specification stock, OEM drawing customization available

High pressure resistant, anti-vibration for petrochemical, power and energy instrumentation

Delivery time

usual 30 days around and can negotiate as per order qty

Shipping port

Ningbo, Shanghai

Term of Payment

30% TT deposit, the balance is paid before shipping the goods

Package detail

inner CTN, outside ply-wooden case

MOQ

10 PCS/size

Guarantee Period

18 months
