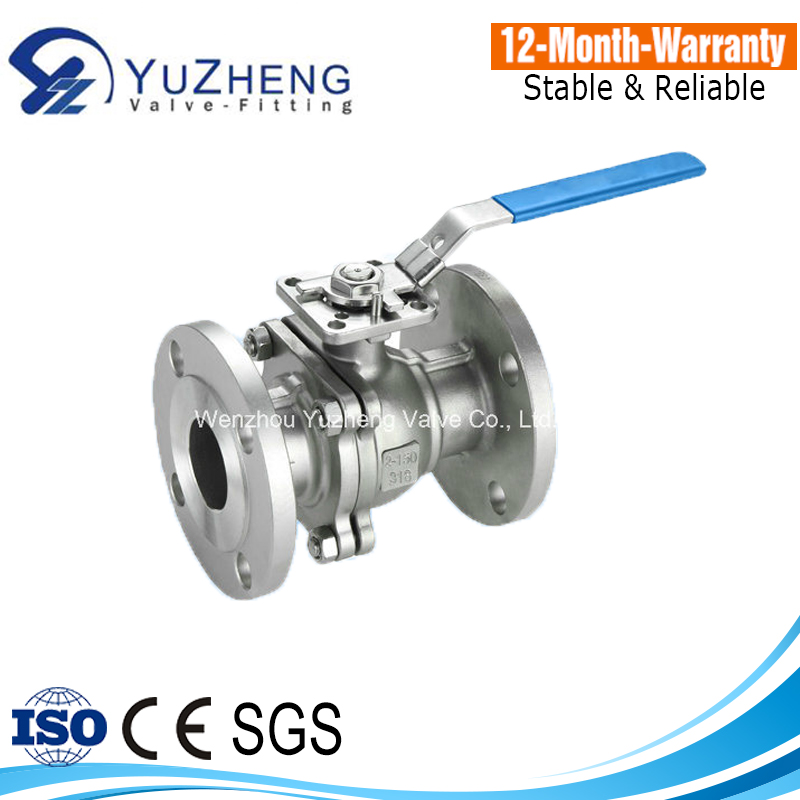

Industrial 2PC Stainless Steel Flanged Ball Valve

Quantity:
  • Q11F

1) Size: 1/4~4"
2) Working pressure: 1.6-6.4mPa
3) Temperature range: -20° C ~ 232° C ~ 350° C
4) Suitable medium: Water, oil, air, some corrosive liquid
5) Thread type: ZG. G, NPT, BSPT, BSP, DIN259/2999
6) Design: ASME B16.34
7) Handle: Lever Handle/Locking Device Handle Upon Request

Production name Industrial 2PC Stainless Steel Flanged Ball Valve
1)Material SS201 SS304, 304L, 316, 316L
2)Size 1/4''-4'' (DN8-DN100)
3)Certificate ISO9001: 2000,CE
4)Working pressure 1000psi(6.4MPa)
5)Connection Ends Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW).
6)Suitable medium Water, gas, air and some corrosive liquid
7)Temperature Range -20-300 degree C
8)Investment casting body and cap
9)Sealing PTFE, RPTFE, PPL
10)stem SS201,SS304,SS316  Adjustable stem packing,
11)Locking option
Our advantage Survival by quality and development by credibility.
Quality first, customer upmost !

100% leakage tested at 100 psi air under water

Blow-out proof stem, ball are made of ss316 or customer request

Pure Teflon seals and seats

Can do OEM products
Shipment By sea
Delivery time usual 30 days around and can negotiate as per order qty
Shipping port Ningbo, Shanghai
Term of Payment 30% TT deposit, the balance is paid before shipping the goods
Package detail inner CTN, ourside ply-wooden case
MOQ 1 PCS/size
Gurantee Period 18 monthes
Capacity to produce 100, 000 PCS/week

PACKAGEPRODUCTION LINE

PRODUCTION FLOW
