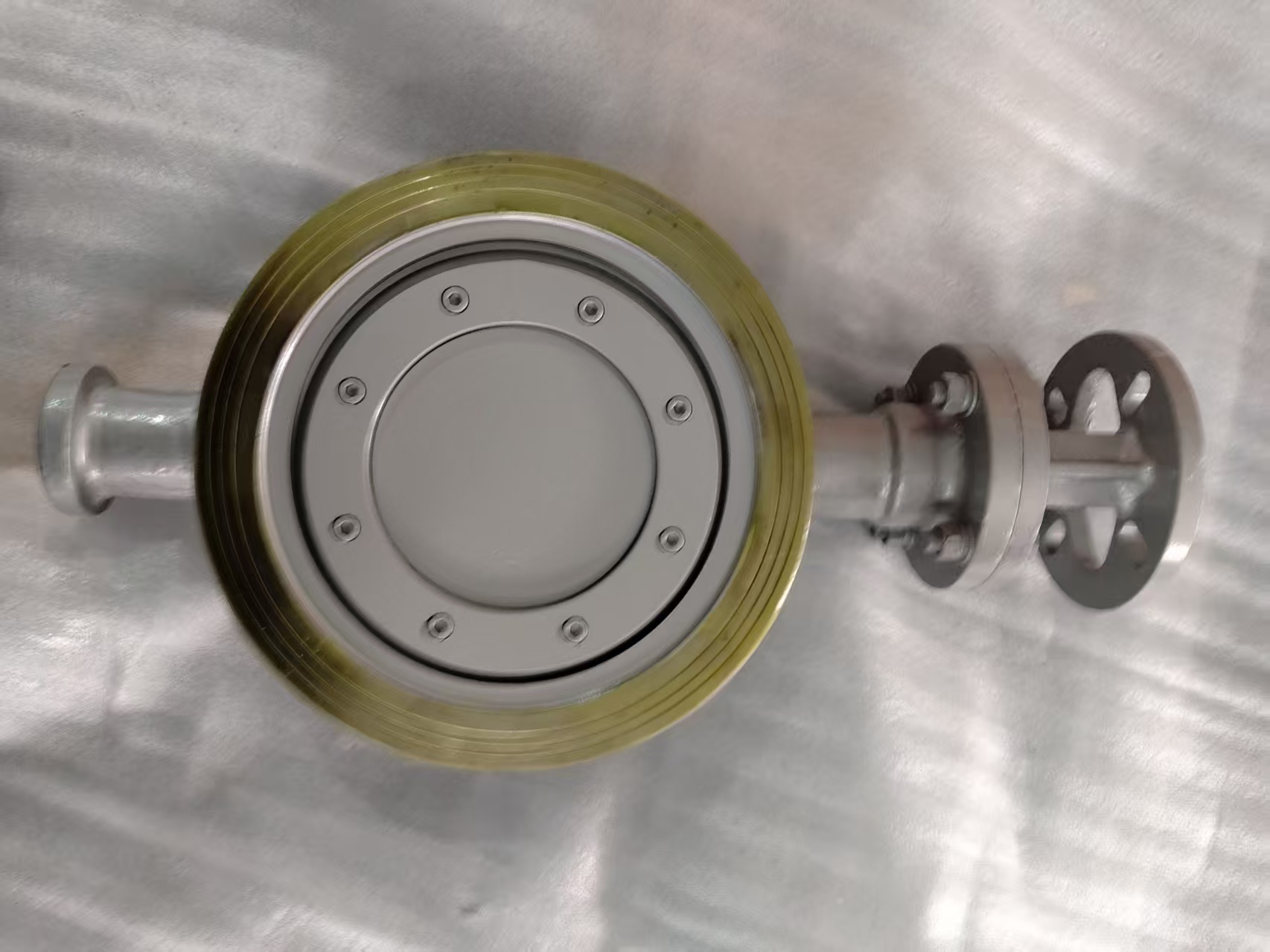

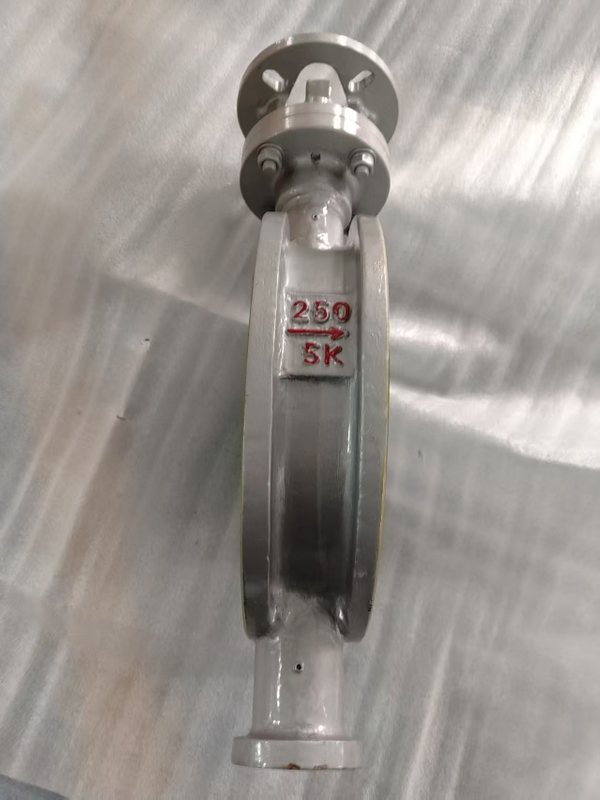

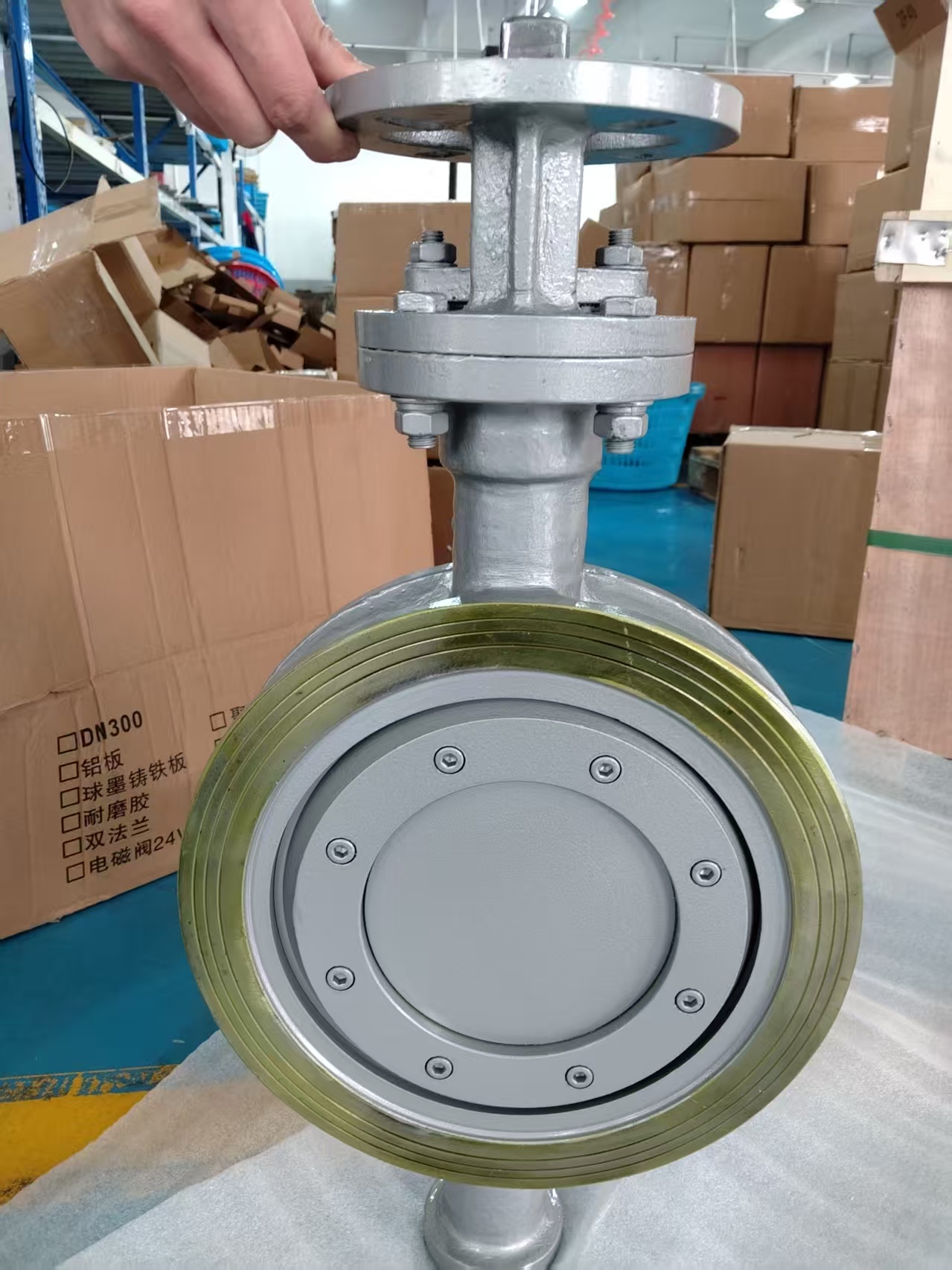

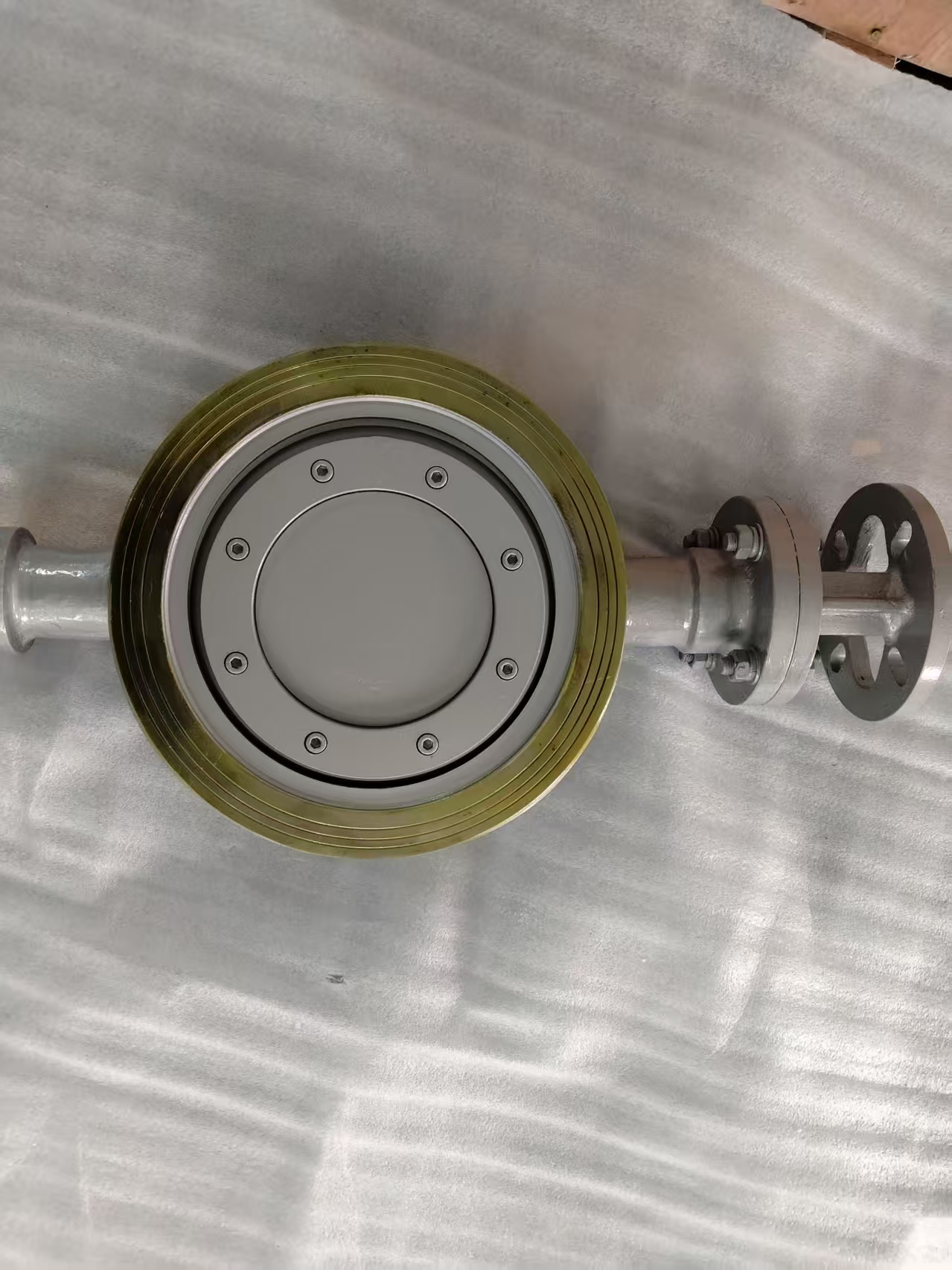

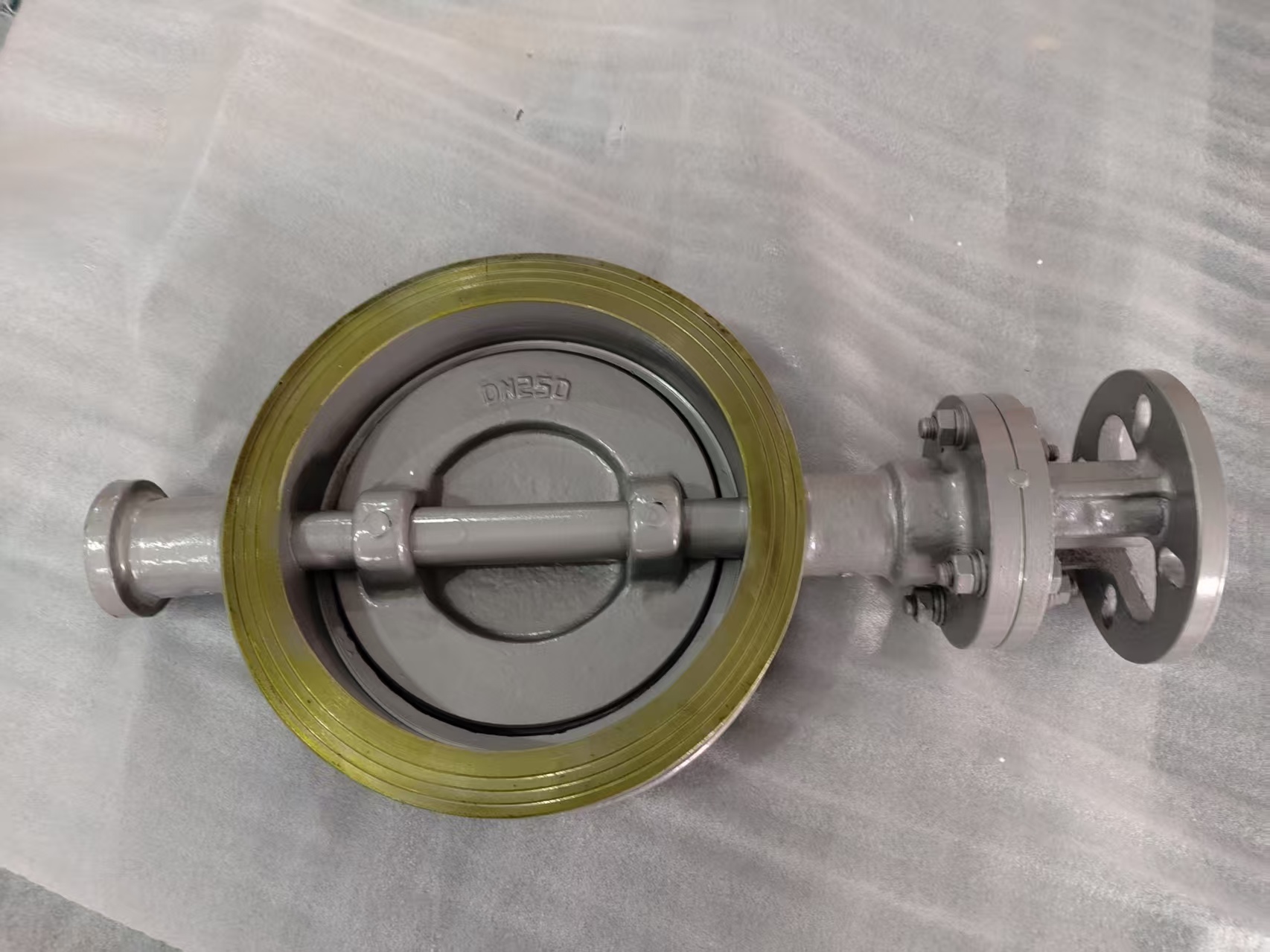

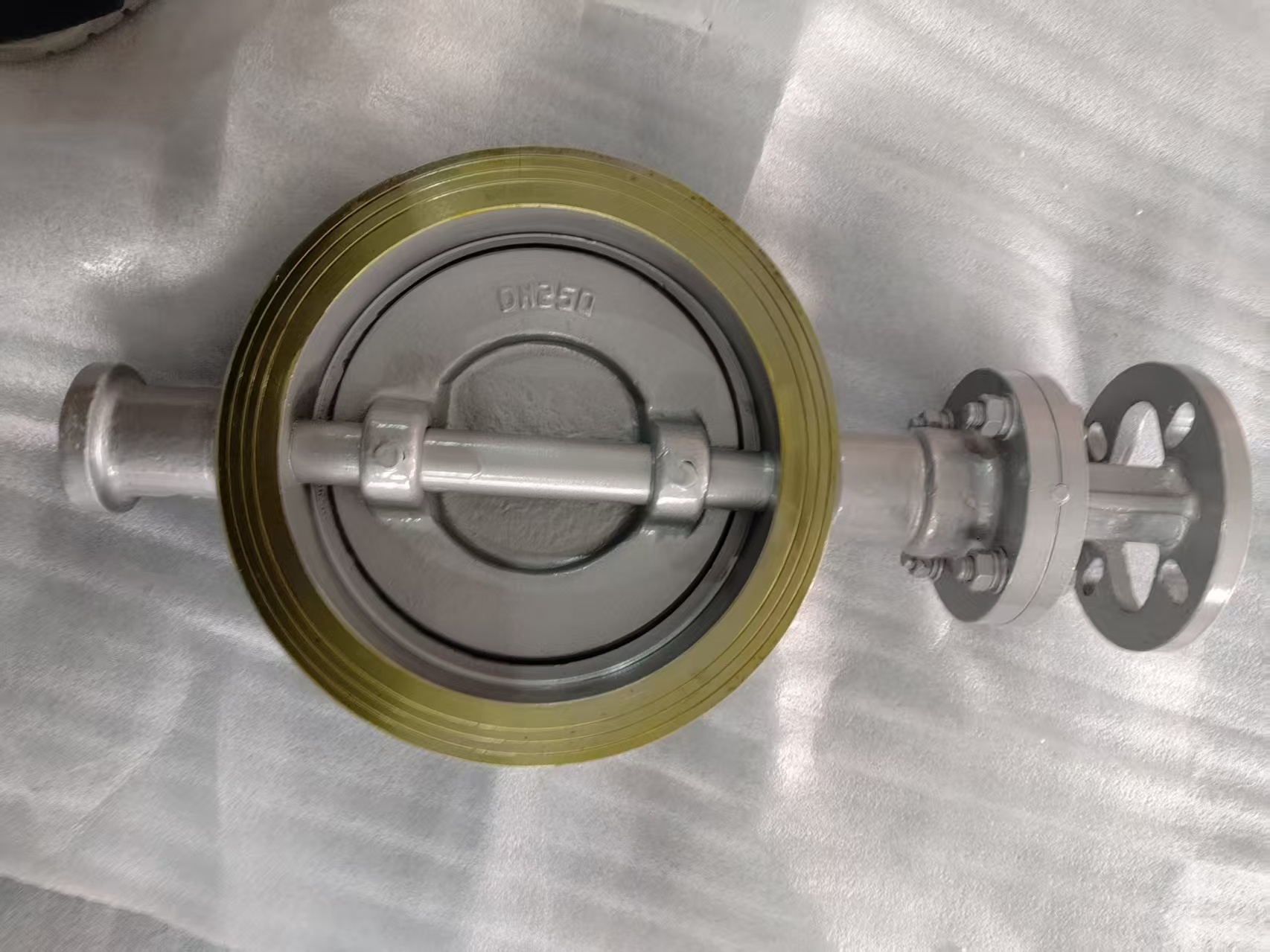

JIS Standard Wafer Metal Hard Seal Butterfly Valve

Product name

JIS Standard Wafer Metal Hard Seal Butterfly Valve

1)Material

Body:Cast steel; Disc:Cast steel with surfacing hard alloy; Stem:Stainless steel

2)Size

DN250, DN300 on hand; full DN range available

3)Certificate

ISO9001, CE

4)Working pressure

PN10, PN16

5)Connection Ends

Wafer lug connection

6)Suitable medium

High temp steam, flue gas, corrosive industrial fluid

7)Temperature Range

-20℃ ~ 425℃

8)Body Process

Cast steel blank, anti-rust grey paint finish, precision machining

9)Sealing

Metal to metal hard sealing, high temperature resistant

10)Structure

Wafer mounted, top flange for actuator installation

11)Function

On-off and flow regulation for high-temperature industrial pipeline

Our advantage

Survival by quality and development by credibility.

Quality first, customer foremost !

100% leakage tested at 100 psi air under water

Hard alloy sealing surface wear resistant & long service life

Strictly follow JIS size standard

Delivery time

usual 30 days around and can negotiate as per order qty

Shipping port

Ningbo, Shanghai

Term of Payment

30% TT deposit, the balance is paid before shipping the goods

Package detail

inner CTN, outside ply-wooden case

MOQ

10 PCS/size

Guarantee Period

18 months
