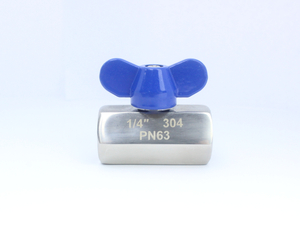

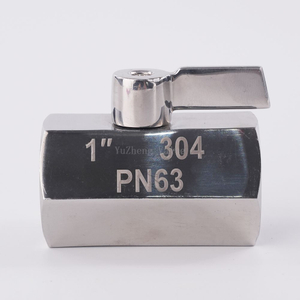

Mini Ball Valve with Lever Handle for Water Tank

Quantity:

Pneumatic 1/4'' Inch Internal External BSP Thread Manual Mini Ball Valve with blue Lever Handle


Product Description

Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.


Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.


1. Features of Mini Ball Valve with Lever Handle for Water Tank

     Made of brass

     Regulate and control air, oil and water

     Suitable for regular operation, lightweight

     Small fluid resistance

     Simple construction
     Easy maintenance
     Good sealed performance
     Freedom from installation direction



2. Specification of Mini Ball Valve with Lever Handle for Water Tank

Product Name

 Mini ball valves, Internal external ball valve, Water ball valves

Size

1/4" 3/8" 1/2"

Material

Stainless  steel

Field of Application

Water-Oil-Gas

Working Pressure

16Bar/ 232Psi

Connection

Male-Male, Female-Female, Male-Female


Work Temperature

-20℃ to 120℃

Mini Ball Valve with Lever Handle for Water Tank

Mini Ball Valve with Lever Handle for Water Tank
