Q11F
1) Size: 1/4~4"
2) Working pressure: 1.6-6.4mPa
3) Temperature range: -20° C ~ 232° C ~ 350° C
4) Suitable medium: Water, oil, air, some corrosive liquid
5) Thread type: ZG. G, NPT, BSPT, BSP, DIN259/2999
6) Design: ASME B16.34
7) Handle: Lever Handle/Locking Device Handle Upon Request

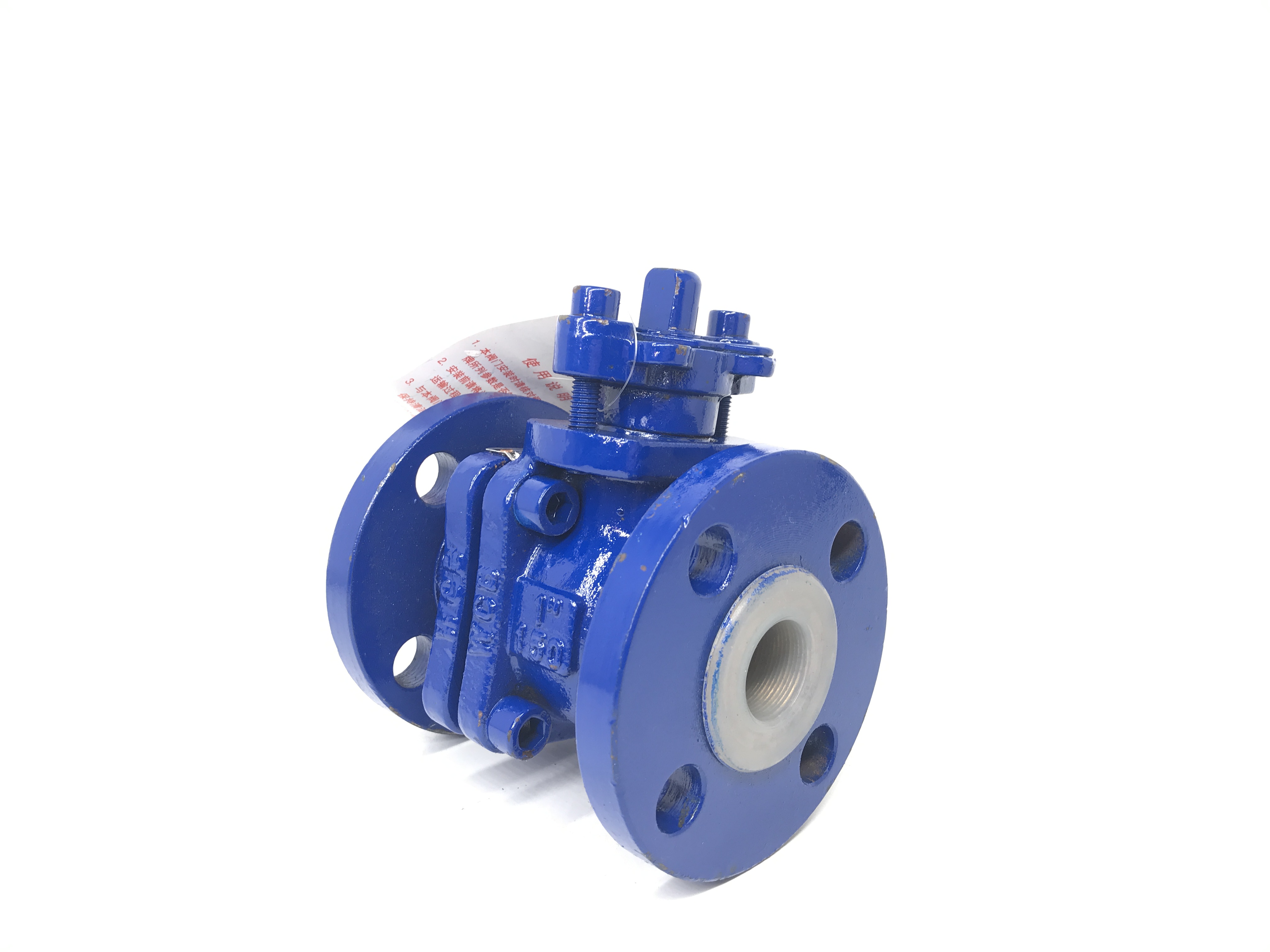

Production name | PFA 2PC Stainless Steel Flanged Ball Valve |
1)Material | SS201 SS304, 304L, 316, 316L |
2)Size | 1/4''-4'' (DN8-DN100) |
3)Certificate | ISO9001: 2000,CE |
4)Working pressure | 1000psi(6.4MPa) |
5)Connection Ends | Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW). |
6)Suitable medium | Water, gas, air and some corrosive liquid |
7)Temperature Range | -20-300 degree C |
8)Investment | casting body and cap |
9)Sealing | PTFE, RPTFE, PPL |
10)stem | SS201,SS304,SS316 Adjustable stem packing, |
11)Locking | option |
Our advantage | Survival by quality and development by credibility. Quality first, customer upmost ! |
100% leakage tested at 100 psi air under water | |
Blow-out proof stem, ball are made of ss316 or customer request | |
Pure Teflon seals and seats | |
Can do OEM products | |
Shipment | By sea |
Delivery time | usual 30 days around and can negotiate as per order qty |
Shipping port | Ningbo, Shanghai |
Term of Payment | 30% TT deposit, the balance is paid before shipping the goods |
Package detail | inner CTN, ourside ply-wooden case |
MOQ | 1 PCS/size |
Gurantee Period | 18 monthes |
Capacity to produce | 100, 000 PCS/week |
