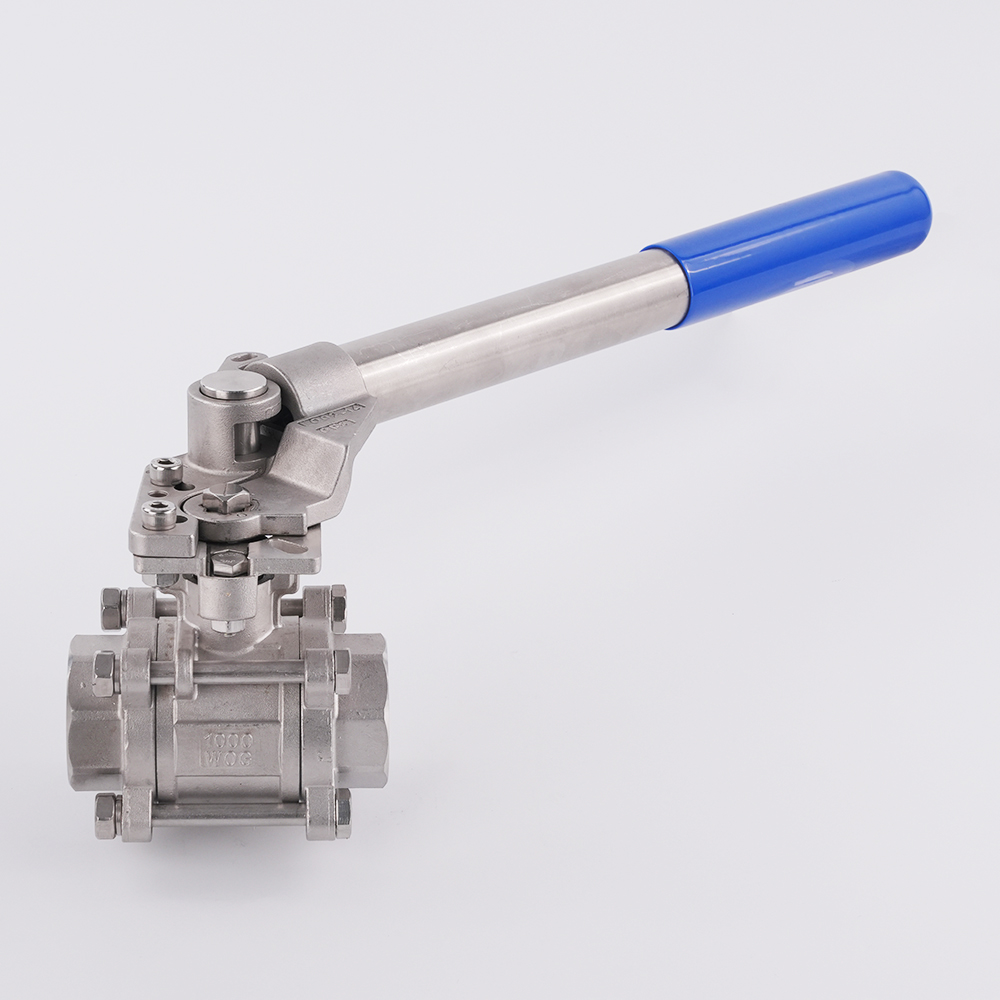

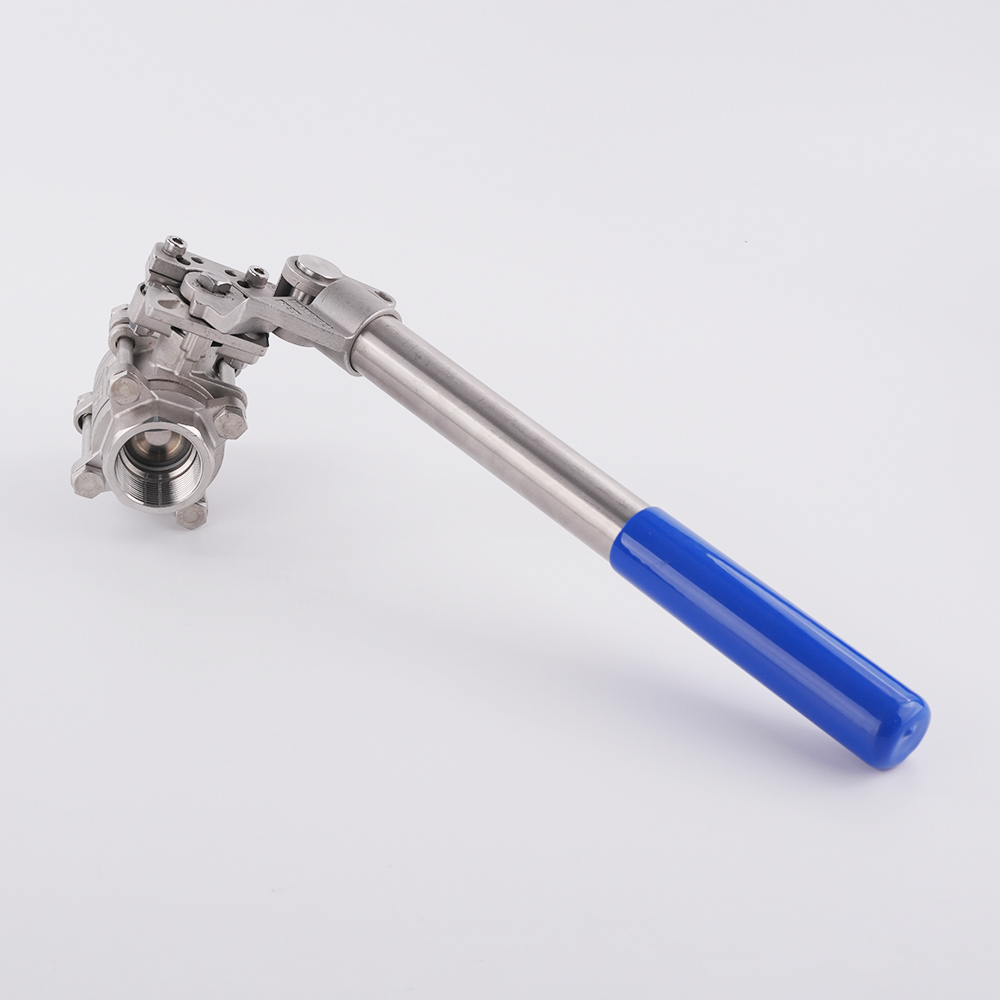

SS304 3-Piece Female Thread Ball Valve with Extended Lever & ISO Mounting Pad

Product name

SS304 3-Piece Female Thread Ball Valve with Extended Lever & ISO Mounting Pad, 1000WOG

Model

Q11F-16P 3-Piece Extended Lever Series

Material

Body, Ball & Stem: SS304; Seat: PTFE

Connection

FF internal thread (BSP / NPT optional)

Pressure Rating

1000 WOG

Structure

Three-piece split bolted body, full bore, integrated ISO standard high mounting platform, fitted with long extended anti-springback lever

Applicable Medium

Water, oil, gas and weakly corrosive liquid medium

Temperature Range

-20℃ ~ 180℃

Processing

Precision investment casting, precision machined sealing surface

Seal Form

PTFE soft seal, bidirectional bubble tight shut-off

Function

Pipeline manual on-off control; extended long lever provides larger operating torque for easier operation; reserved mounting platform can remove lever and install pneumatic/electric actuator for automatic control

Our advantage

Survival by quality and development by credibility.

Quality first, customer foremost !

Full specification stock, OEM drawing customization available

Split three-piece design convenient for maintenance; long lever saves operating force

Delivery time

usual 30 days around and negotiable

Shipping port

Ningbo, Shanghai

Term of Payment

30% TT deposit, balance before shipment

Package detail

inner CTN, outside plywood case

MOQ

10 PCS/size

Guarantee Period

18 months
