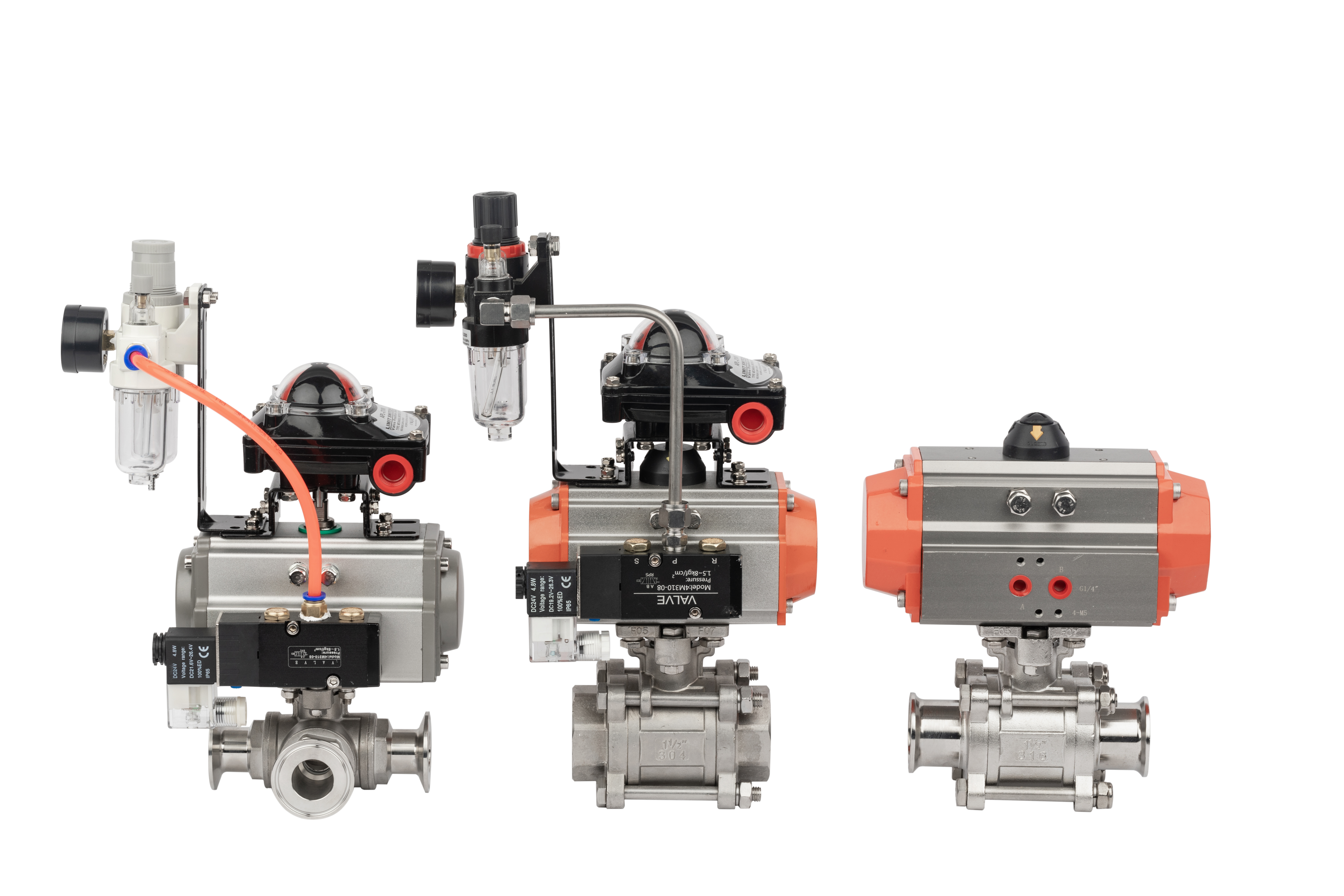

Stainless Steel 3Way Clamp Ball Valve with Actuator


1) Standard: SMS/DIN/3A/ISO/DS
2) Body material: AISI 304, 304L, 316, 316L
3) Flux domination of pipeline: 3/4"-2 1/2" & DN25-100
4) Seal material: EPDM & PTFE
5) Connection code: Straight way type & three ways type
6) Manual actuator: 90degree adjustment handle
7) Working principle: Manual operation or actuating device operation
8) Related products: Flange ball valve, 3ways ball valve, 2ways ball valve and so on

Technical Parameter:
1) Working pressure: 0-10bar, Min pressure with vaccuum; Max pressure with 10bars
2) Working temperature: -10degree ~ 105degree
3) External part: Ra<1.6um & Internal part: Ra<0.6um

1) Low to torgue design results in cost effective actuation
2) suitable for aggressive chemical enviroment
3) Multi-stop handle for fine control, and looking handle option
4) Steam self-compresating for temperature and pressure
5) Easy to assemble a patented ball-body self alignment feature

6) Suitable for pigging system

 Prdouct Name:Stainless Steel 3way ball valve with Pneumatic actautor
 Valve Body Material: SS304/SS316L 1.4404/1.4301
 Seal Material: PTFE+EPDM(Double Layer)/EPDM/Silicon/Vition
 Max Working Pressure: 10Bar
 Max Working Temperature: 120 degree
 Availably Size:1"-4"
 Avaliably Connection: Clamp/Weld/Male Thread
 Availably Standard: 3A/DIN/SMS/ISO
 Certification: ISO/CE
 Availably Structure: Straight way type & Three Ways type
 Application Scope: Dairy Food Beverage,Pharmacy,Cosmetic,Chemical etc.
 Packing Details: Bubble Pack for Each Valve, Outside Packing are carton or Plywood Cases
 Delivery Details: Usually within 20days after received T/T Down Payment
 Payment Term: T/T,L/C
