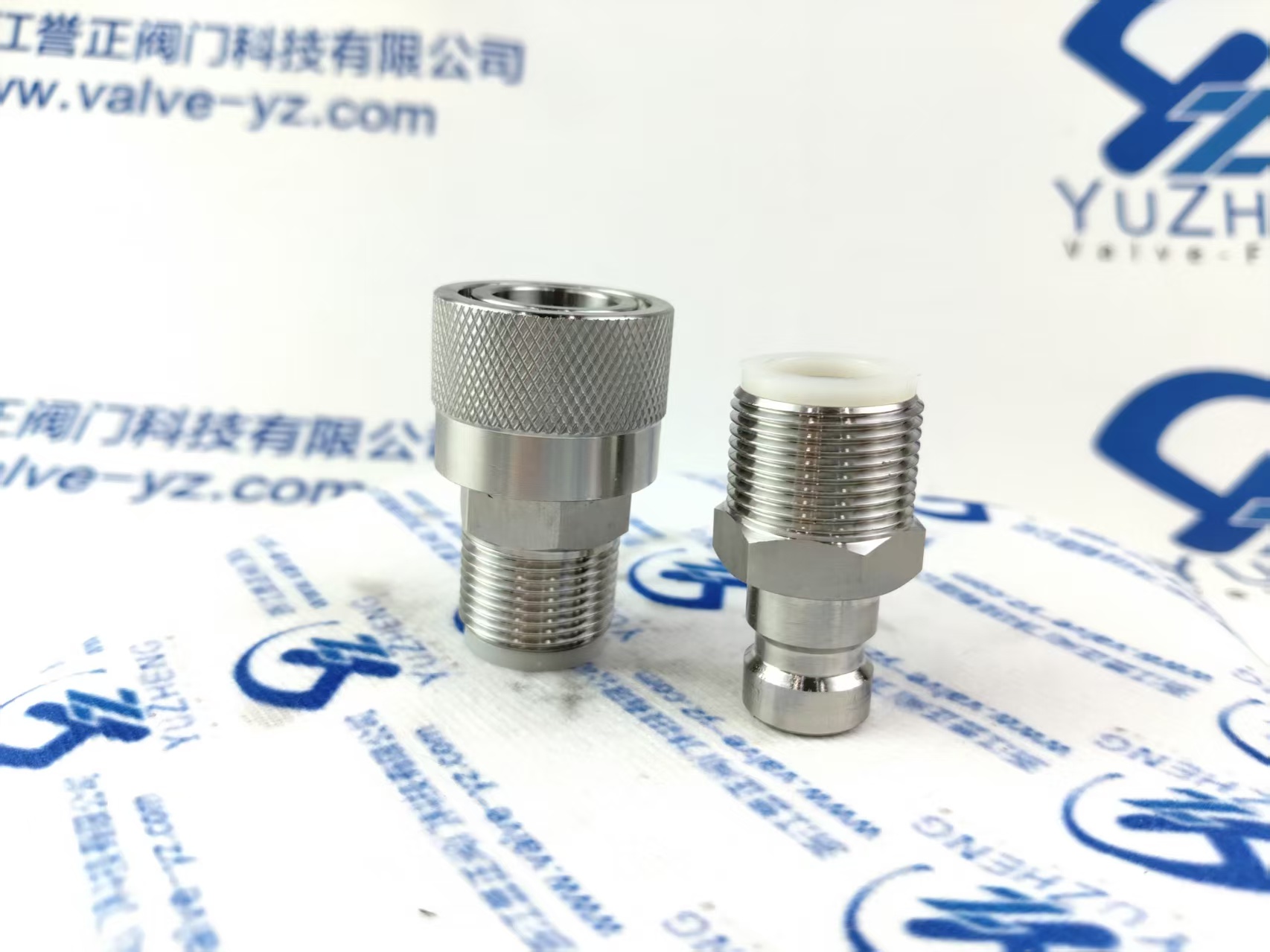

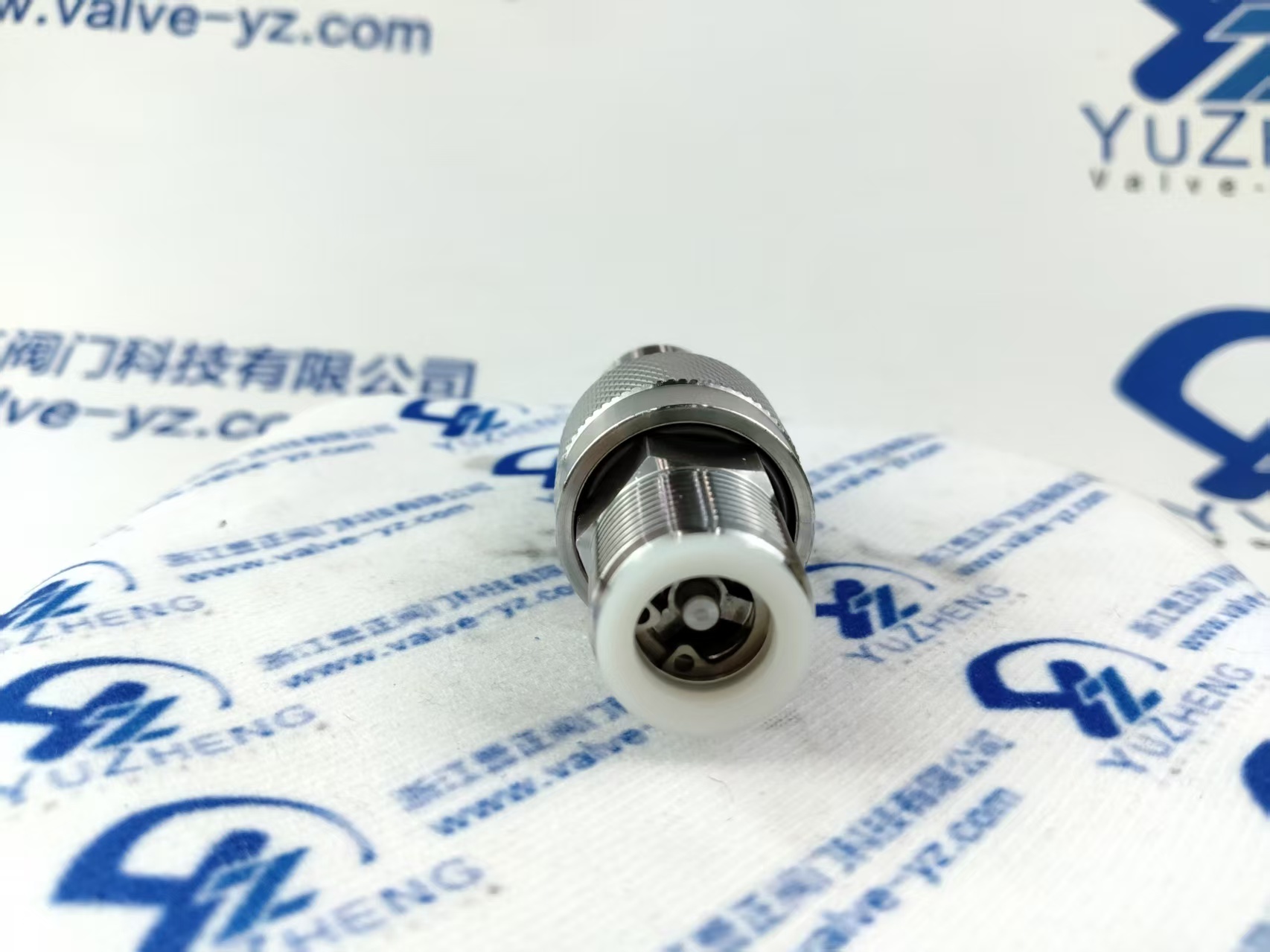

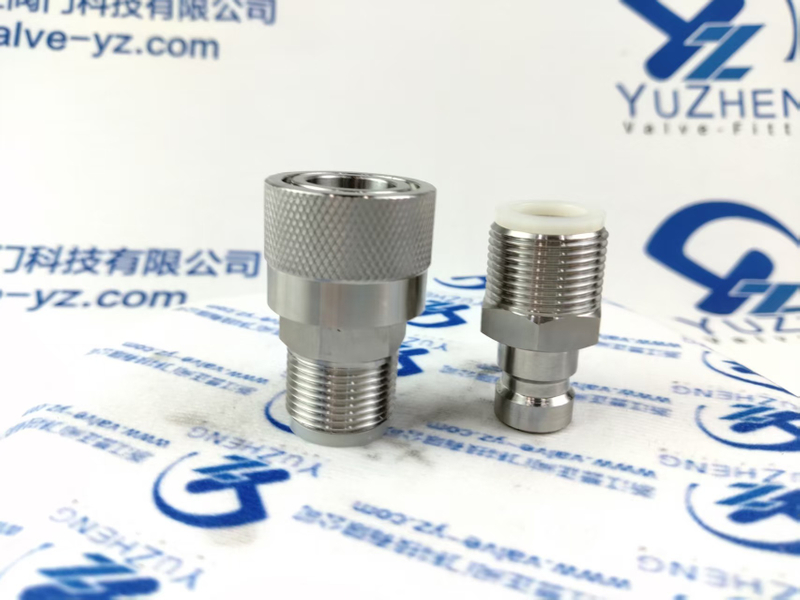

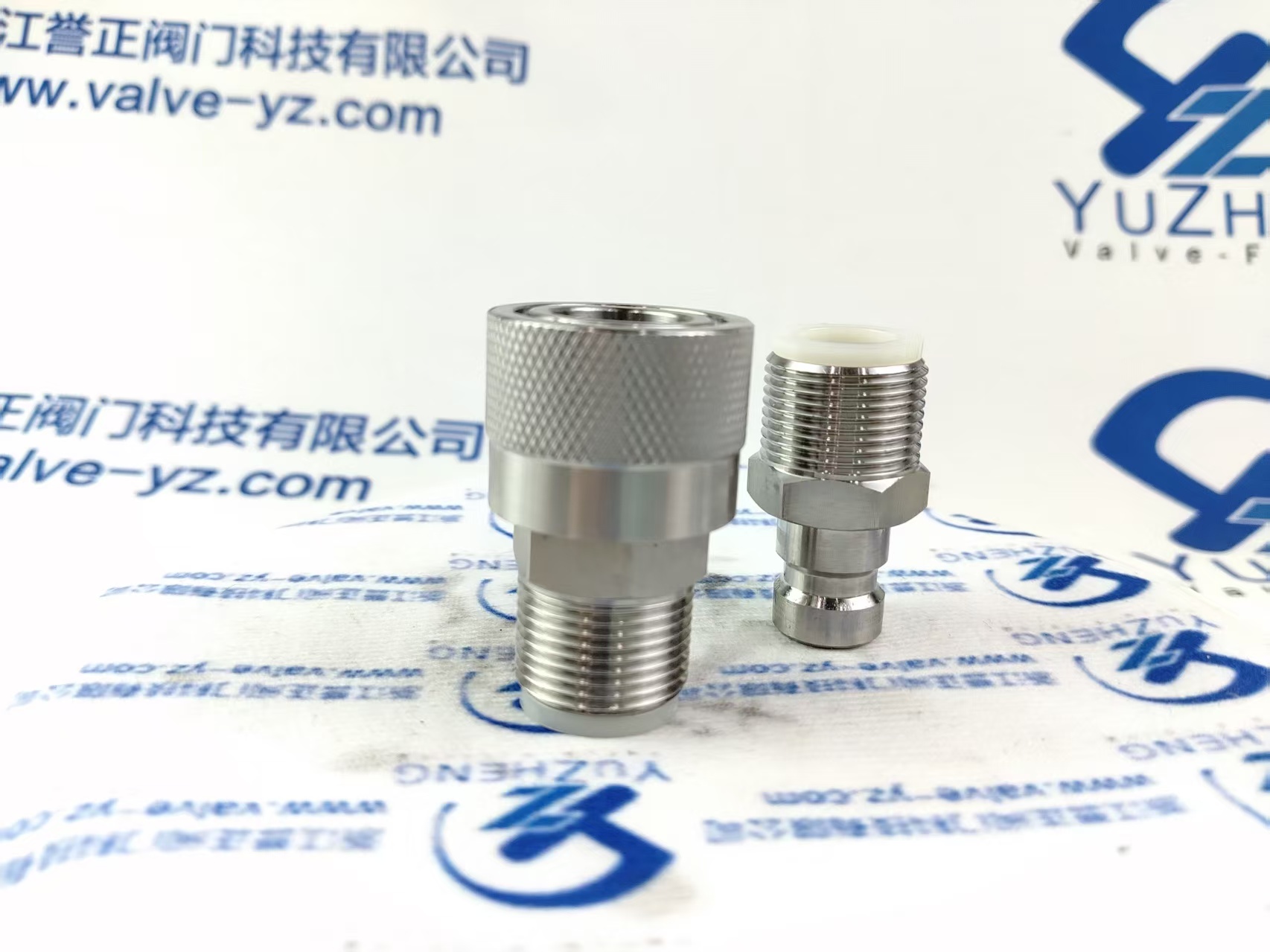

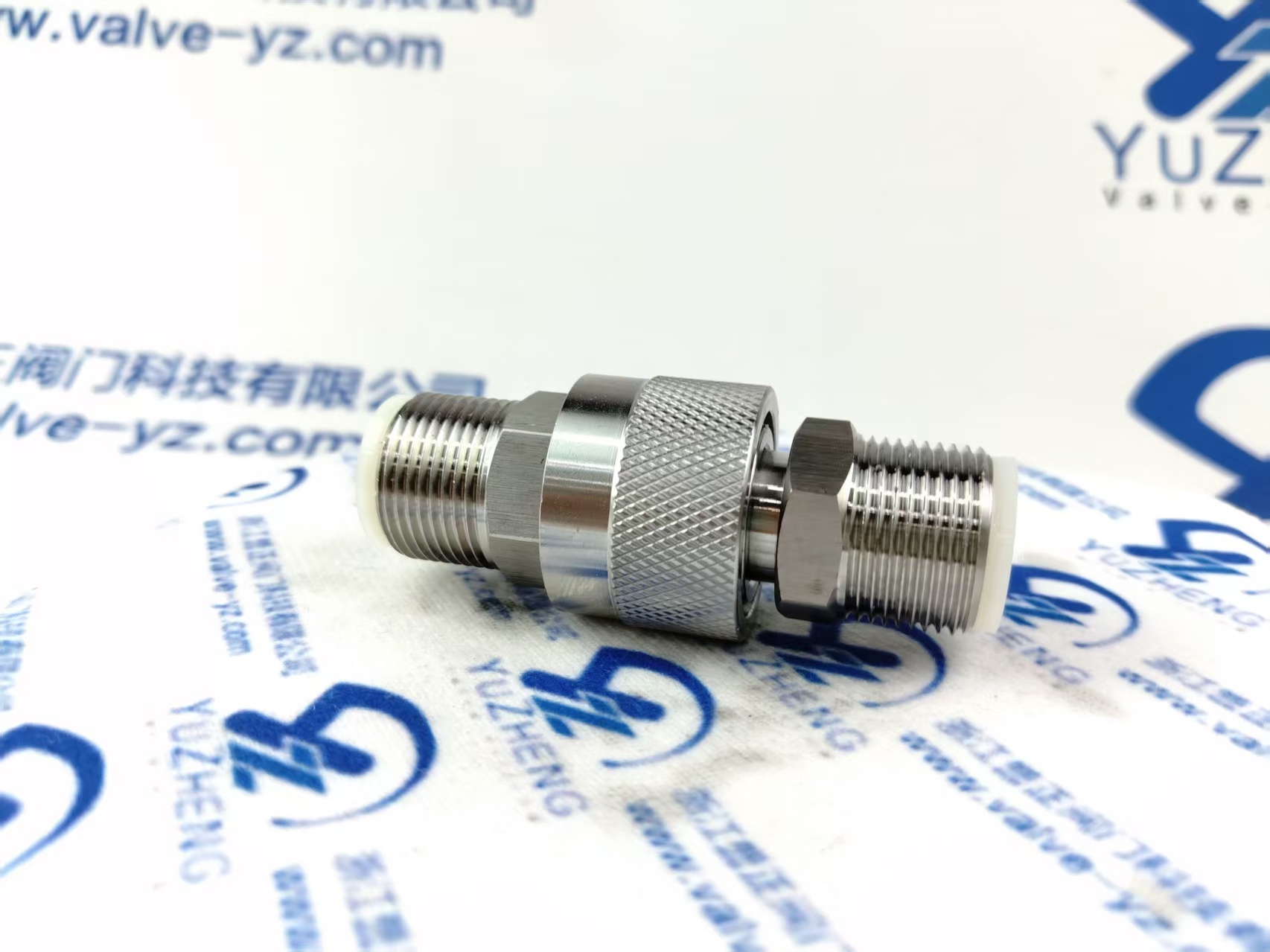

Stainless Steel KZF Hydraulic Quick Coupling, Male & Female NPT/BSP Male Thread

KZF stainless steel hydraulic quick coupling with male thread connection, built-in check valve shuts off fluid instantly after disconnecting, corrosion resistant for hydraulic and chemical pipeline, custom sizes available.
Availability:
Quantity:
  • KZF

Item

Details

Product name

KZF Stainless Steel Hydraulic Quick Coupling (Male Thread ISO7241-B)

1)Model

KZF series, ISO7241-B standard

2)Material

SS304 / SS316L Stainless Steel

3)Thread

Male external thread (NPT / BSP optional)

4)Working Pressure

Max 3000PSI

5)Structure

Male & female set with built-in double check valve

6)Suitable Medium

Hydraulic oil, pure water, weak corrosive chemical liquid

7)Working Temp

-20℃ ~ 120℃

8)Processing

CNC precision machining, fine polished

9)Seal

PTFE+NBR composite sealing ring

10)Function

Quick connect/disconnect, auto shut-off when separated without leakage

Our advantage

Survival by quality and development by credibility.

Quality first, customer foremost !

Full specifications in stock, OEM customized drawing available

Anti-leakage self-sealing design, acid & rust resistant

Delivery time

usual 30 days around and can negotiate as per order qty

Shipping port

Ningbo, Shanghai

Term of Payment

30% TT deposit, the balance is paid before shipping the goods

Package detail

inner CTN, outside ply-wooden case

MOQ

10 PCS/size

Guarantee Period

18 months
