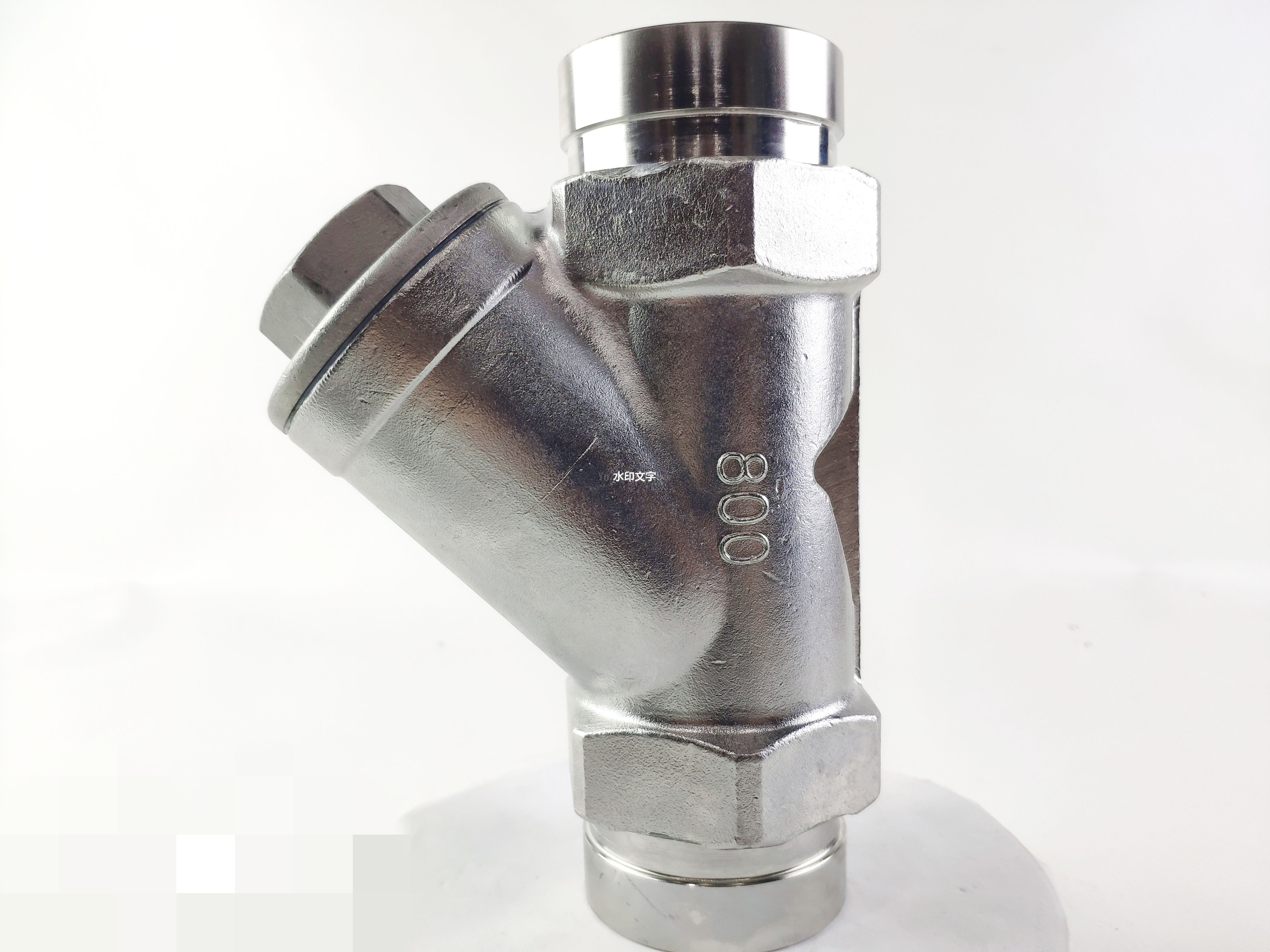

Y-TYPE GROOVED CHECK VALVE PN16

A Y-Type Grooved Check Valve is a specialized valve designed to prevent backflow in pipeline systems while allowing fluid to flow in one direction. It features a Y-shaped body that enhances flow efficiency and reduces pressure drop. The grooved end connections facilitate easy installation and maintenance, making it suitable for various applications. Typically made from durable materials like stainless steel or carbon steel, it can handle different media, including water, steam, and oil. This valve is commonly used in HVAC systems, fire protection systems, and industrial processes where backflow prevention is crucial

Availability:

Quantity:



Inquire Add to Basket

Product Description

1. Material: Stainless steel 304 316 WCB
2. Size: DN15~DN100
3. Working pressure: 1000PSI
4. Structure:Swing
5. Connection type: Flange
6. Suitable media: Water, oil, and some corrosive liquids

Product name	Y-TYPE GROOVED CHECK VALVE PN16
1)Material	SS201 SS304, 304L, 316, 316L
2)Size	DN15~DN100
3)Certificate	ISO9001: 2000,CE,CIQ,SGS
4)Working pressure	1000psi(6.4MPa)
5)Connection Ends	GROOVE
6)Suitable medium	Water, oil and some corrosive liquid
7)Temperature Range	-20~230 degree C
8)Investment	Casting body and cap
9)Sealing	PTFE, RPTFE, PPL
10)Stem	SS201,SS304,SS316 Adjustable stem packing,
11)Locking	Option
Our advantage	Survival by quality and development by credibility. Quality first, customer upmost !
	Timely shipment
	Can do OEM products
Shipment
Delivery time	Usually 30 days around and can negotiate as per order qty
Shipping port	Ningbo, Shanghai
Term of Payment	30% TT deposit, the balance against copy of B/L
Package detail	inner CTN, outside plywood case
MOQ	20 PCS/size
Capacity to produce	100, 000 PCS/week
