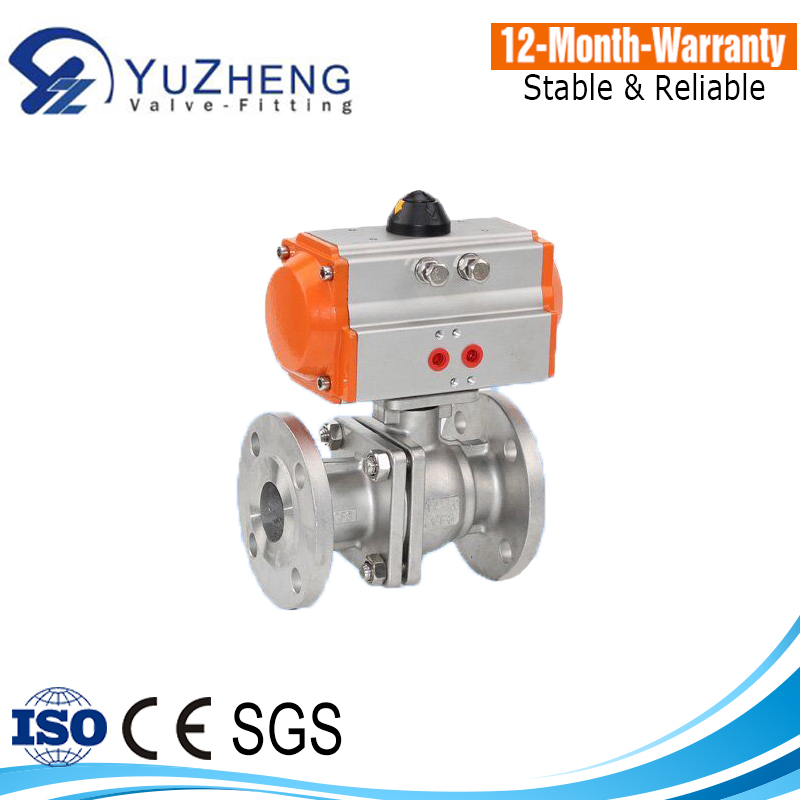

2PC Stainless Steel Flange Ball Valve

Availability:
Quantity:
  • Q41F

Product name Stainless Steel Flange Floating Ball Valve with CE Certificate
1)Material SS201 SS304, 304L, 316, 316L
2)Size 1/4"-4"&DN8-DN100
3)Certificate ISO9001: 2000,CE
4)Working pressure 1000psi(6.4MPa)
5)Connection Ends Flange, Threaded (F/F,M/F), Welding (BW, SW).
6)Suitable medium Water, gas, air and some corrosive liquid
7)Temperature Range -20°C ~ 232°C ~ 350°C
8)Investment casting body and cap
9) Sealing PTFE, RPTFE, PPL
10)stem SS201,SS304,SS316   Adjustable stem packing,
11)Thread type G, NPT, BSPT, BSP, DIN259/2999
Our advantage Survival by quality and development by credibility.
Quality first, customer upmost !

100% leakage tested at 100 psi air under water

Blow-out proof stem, ball are made of ss316 or customer request

Pure Teflon seals and seats

Can do OEM products
Shipment
Delivery time usually 30 days around and can negotiate as per order qty
Shipping port Ningbo , Shanghai
Term of Payment 30% TT deposit, the balance against copy of B/L
Package detail inner CTN, outside plywood case
MOQ 20 PCS/size
Gurantee Period 18 monthes
Capacity to produce 100, 000 PCS/week
