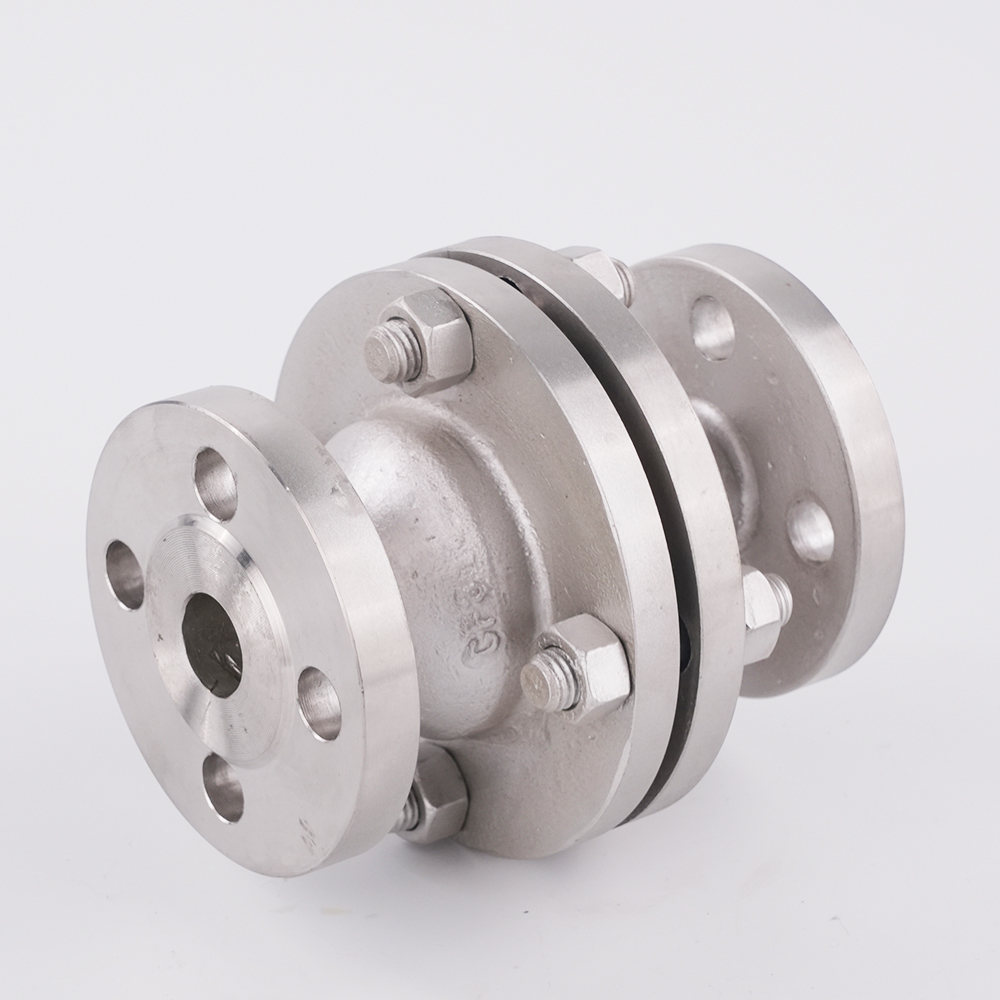

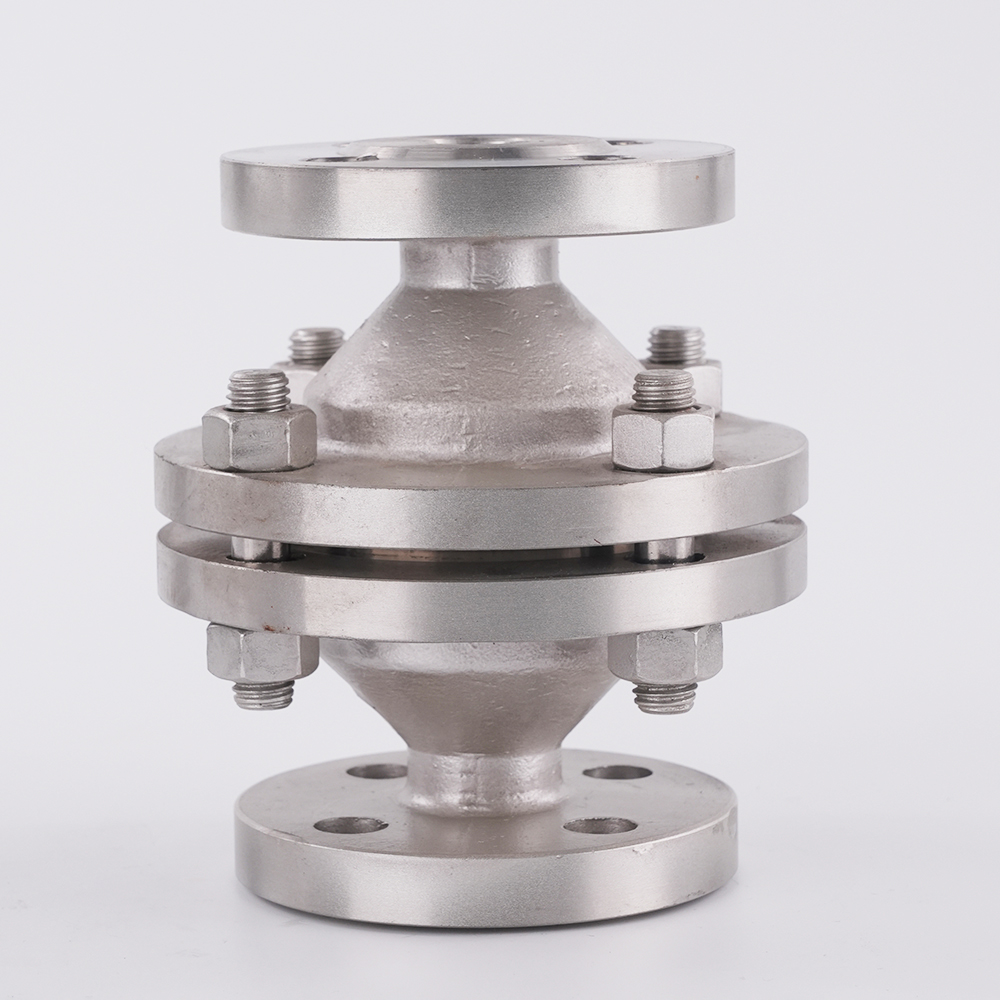

CF8 Stainless Steel Flanged Pipeline Flame Arrestor

Product name

CF8 Stainless Steel Flanged Pipeline Flame Arrestor

Model

GZW-16P Series

Material

Body: CF8 (SS304); Flame resistance core: SS304 corrugated filter element; Gasket: Graphite/PTFE

Connection

RF raised face flanged ends, GB standard flange

Nominal Pressure

PN16

Structure

Split multi-section bolted assembly, built-in corrugated metal flame arresting core, convenient for disassembly, inspection and cleaning

Applicable Medium

Natural gas, liquefied gas, fuel gas, volatile flammable oil vapor and other combustible gas pipelines

Temperature Range

-20℃ ~ 425℃

Processing

Precision investment casting, smooth internal flow channel

Working Principle

The metal corrugated core absorbs flame heat, prevents flame & detonation spread, avoids flame backfire along pipeline

Function

Safety protection fitting for combustible medium pipelines; blocks flame propagation to prevent explosion accidents caused by tempering

Our advantage

Survival by quality and development by credibility.

Quality first, customer foremost !

Full specification stock, OEM drawing customization available

Easy disassembly for core inspection and maintenance, stable flame quenching performance

Delivery time

usual 30 days around and negotiable

Shipping port

Ningbo, Shanghai

Term of Payment

30% TT deposit, balance before shipment

Package detail

inner CTN, outside plywood case

MOQ

1 PCS

Guarantee Period

18 months
