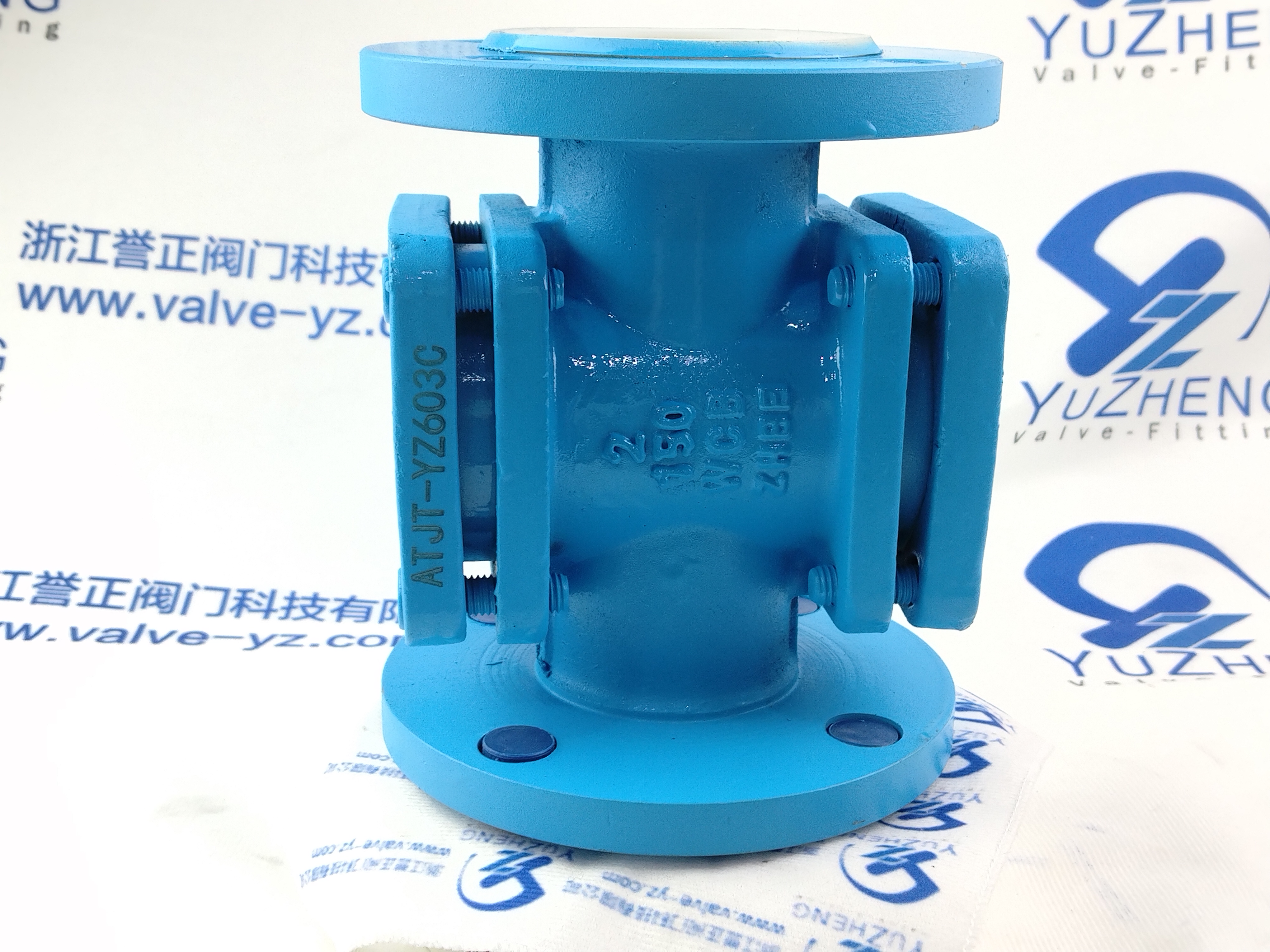

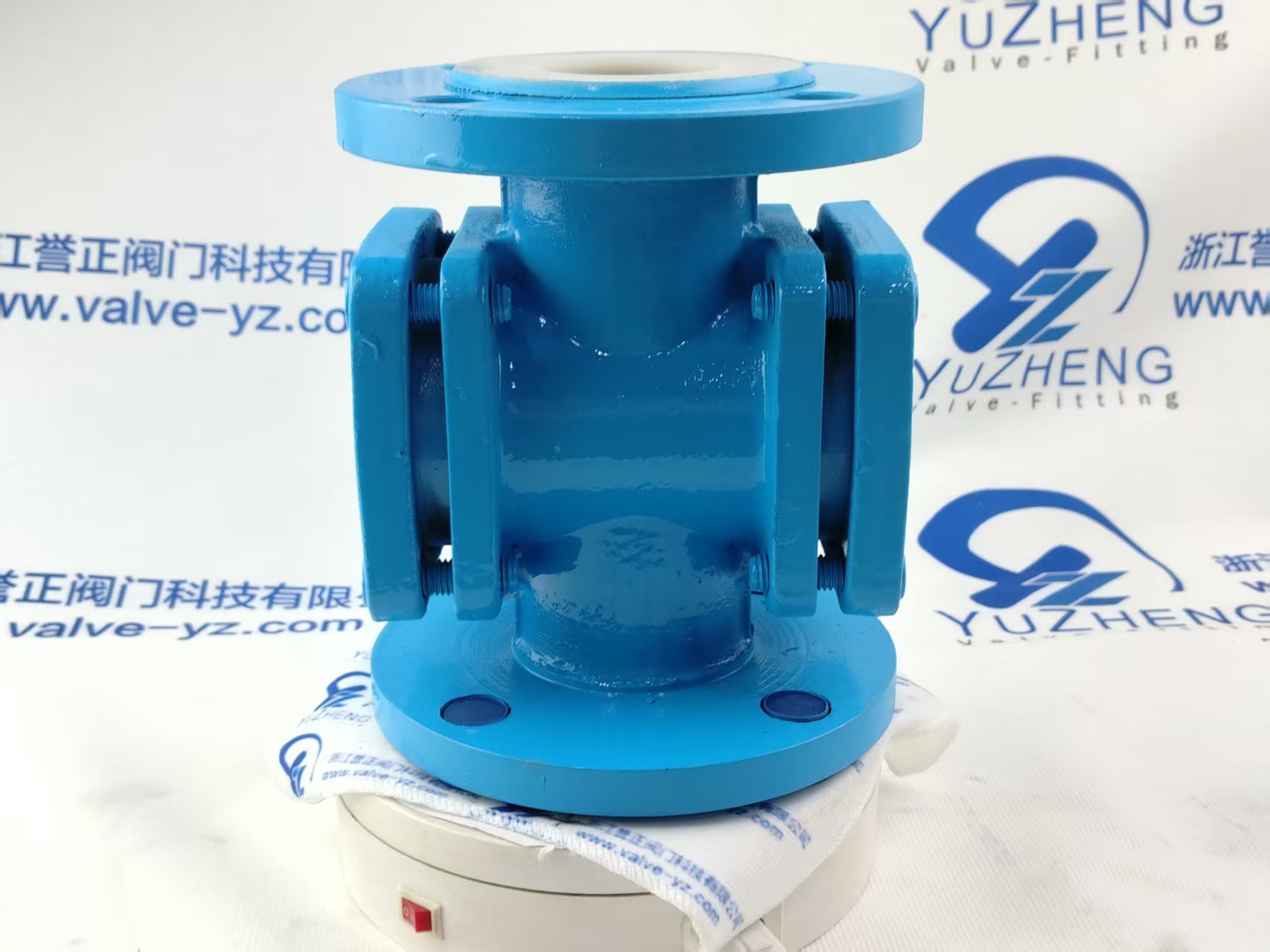

PFA Lined Flanged Straight Sight Glass

Product name

PFA Lined Flanged Straight Sight Glass, Model:ATJT-YZ603C

1)Material

Body:WCB Carbon Steel; Inner lining:PFA/PTFE; Window:High borosilicate sight glass

2)Size

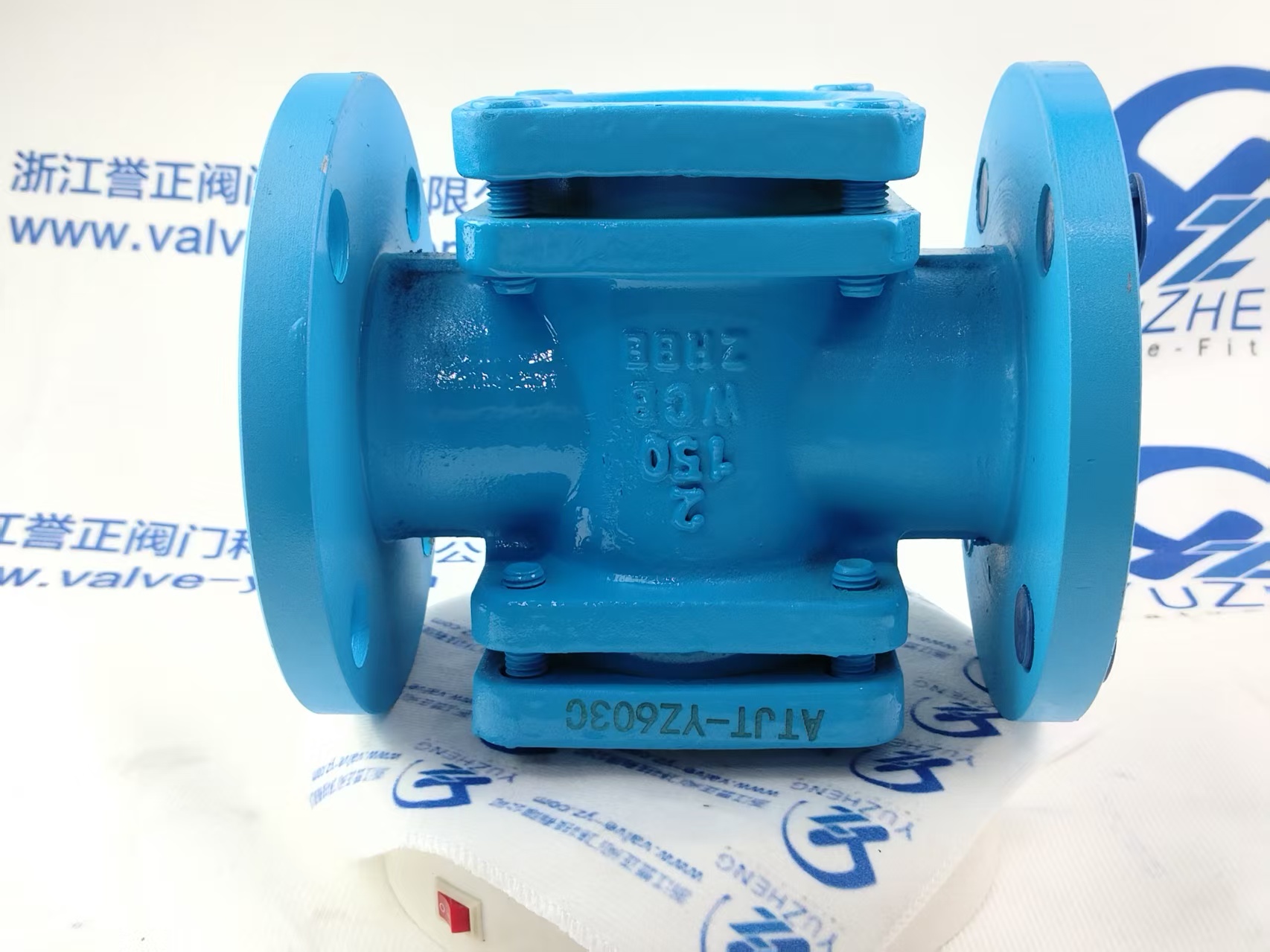

DN50(2") marked on body, other DN specifications available

3)Certificate

ISO9001, CE

4)Working pressure

PN16(1.6MPa)

5)Connection Ends

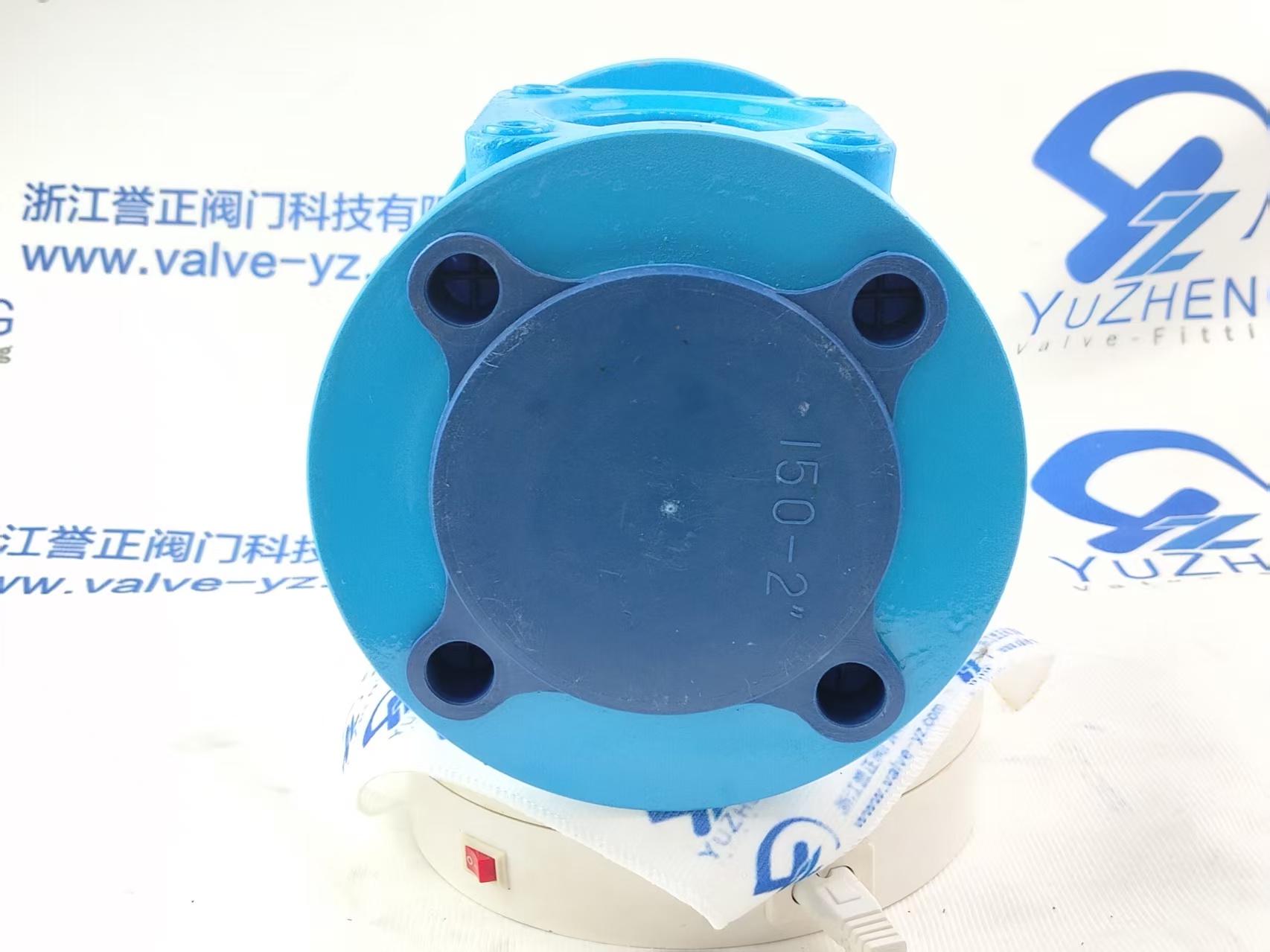

Flanged

6)Suitable medium

Strong acid, strong alkali, various highly corrosive chemical liquid, organic solvent

7)Temperature Range

-20℃ ~ 180℃

8)Body Process

Cast WCB body with outer anti-rust blue coating, full PTFE/PFA lining inside

9)Sealing

PTFE rubber gasket

10)Structure

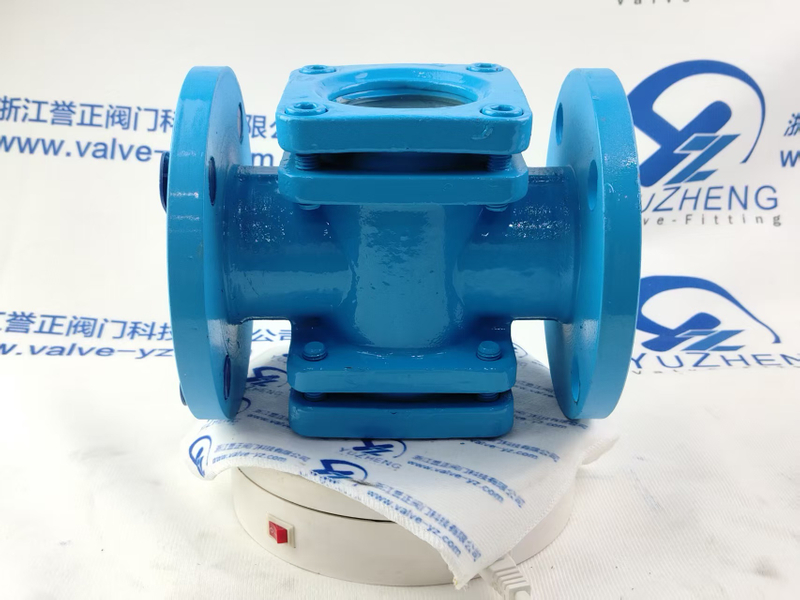

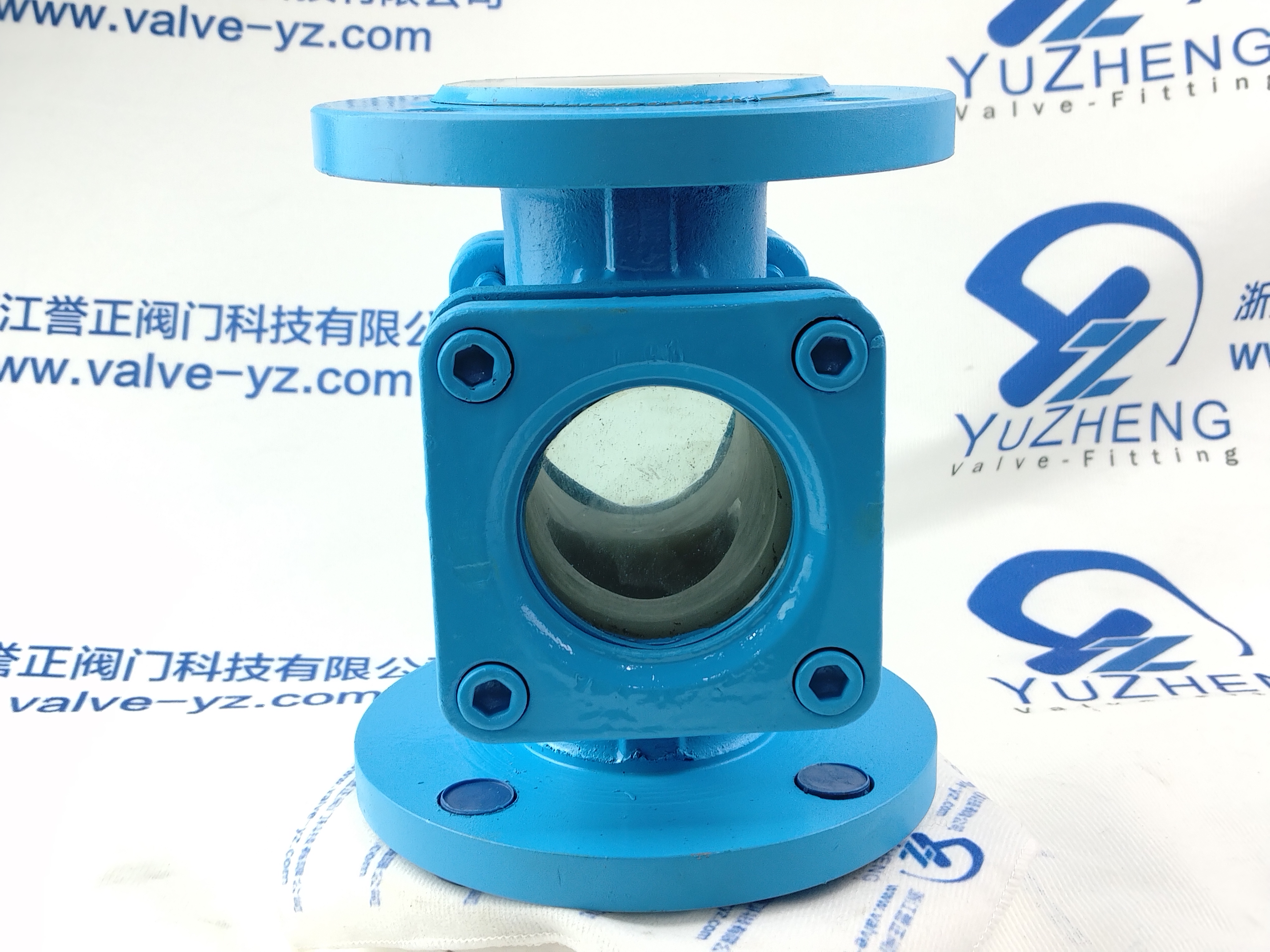

Double-sided glass viewing window, bolt fixed side cover for easy glass replacement

11)Function

Real-time observe medium flow condition inside corrosive pipeline

Our advantage

Survival by quality and development by credibility.

Quality first, customer foremost !

100% leakage tested at 100 psi air under water

Full fluorine lining resistant to strong corrosion

High temp resistant borosilicate glass, safe & crack-proof

Can do OEM products

Delivery time

usual 30 days around and can negotiate as per order qty

Shipping port

Ningbo, Shanghai

Term of Payment

30% TT deposit, the balance is paid before shipping the goods

Package detail

inner CTN, outside ply-wooden case

MOQ

10 PCS/size

Guarantee Period

18 months
