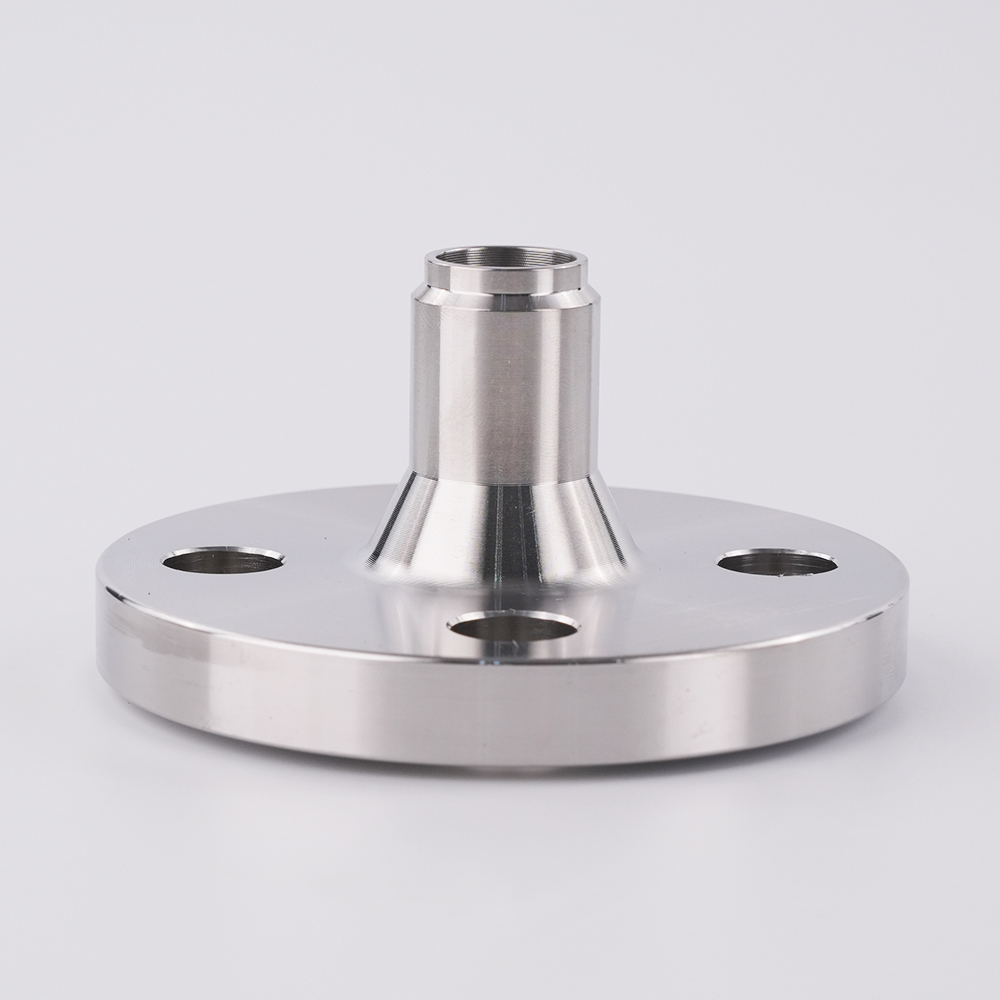

Flange Type Ferrule Pressure Take-off Impulse Fitting

Product name

Flange Type Ferrule Pressure Take-off Impulse Fitting

Model

FL-FER-IMP Series

Material

SS304 / SS316L Stainless Steel

Connection

Base: Flange connection; Outlet: Ferrule compression fitting for instrument tubing

Pressure Class

PN160 / PN250 / Class1500 high pressure optional

Structure

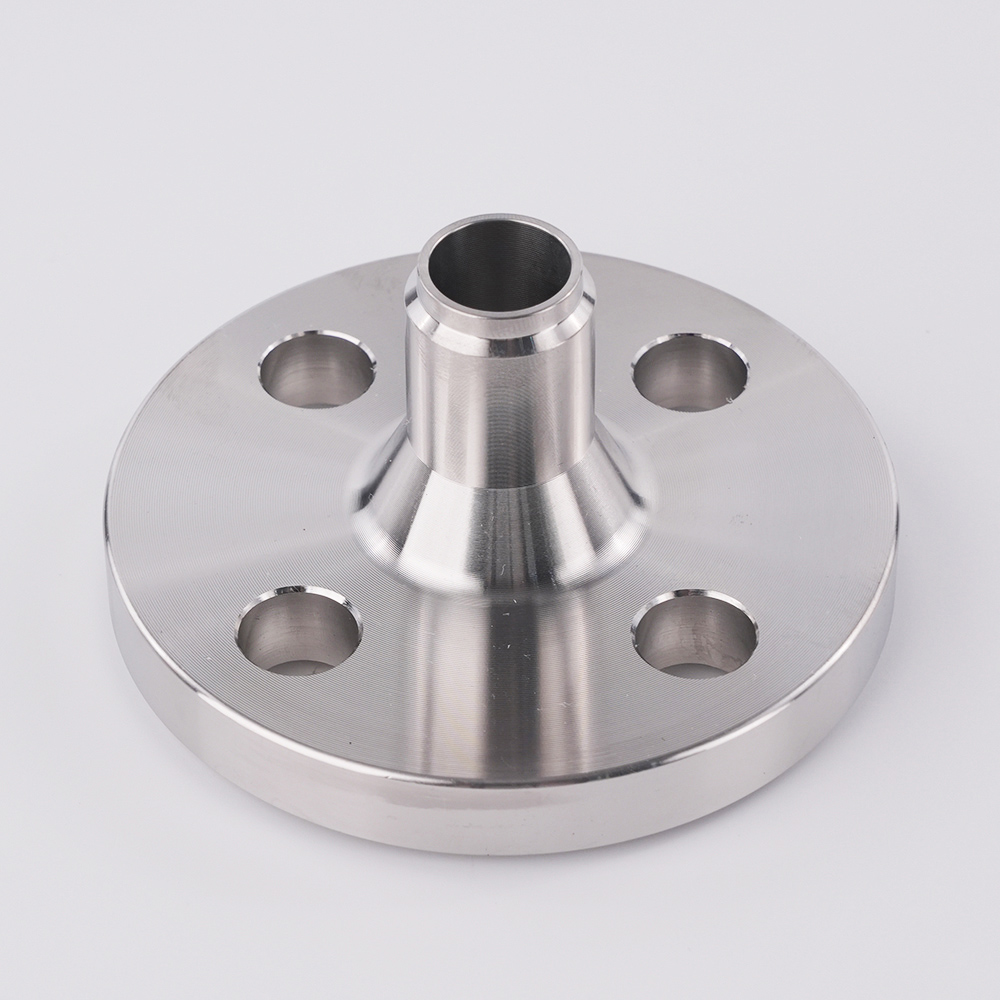

Integral CNC machined body, tapered transition neck, standard flange bolt holes, ferrule sealing port for seamless tube

Applicable Medium

Oil, gas, steam, water, weak corrosive fluid; instrument pressure impulse pipelines

Temperature Range

-40℃ ~ 425℃

Processing

Precision one-piece CNC turning, high concentricity, smooth surface, fully deburred

Seal Form

Double ferrule metal hard seal, reliable anti-leakage under vibration

Function

Pressure tapping on main pipeline, connect stainless steel instrument tubing to pressure gauge / transmitter

Our advantage

Survival by quality and development by credibility.

Quality first, customer foremost !

Full specification stock, OEM drawing customization available

High pressure & vibration resistant for petrochemical, power industry instrumentation

Delivery time

usual 30 days around and can negotiate as per order qty

Shipping port

Ningbo, Shanghai

Term of Payment

30% TT deposit, the balance is paid before shipping the goods

Package detail

inner CTN, outside ply-wooden case

MOQ

10 PCS/size

Guarantee Period

18 months
