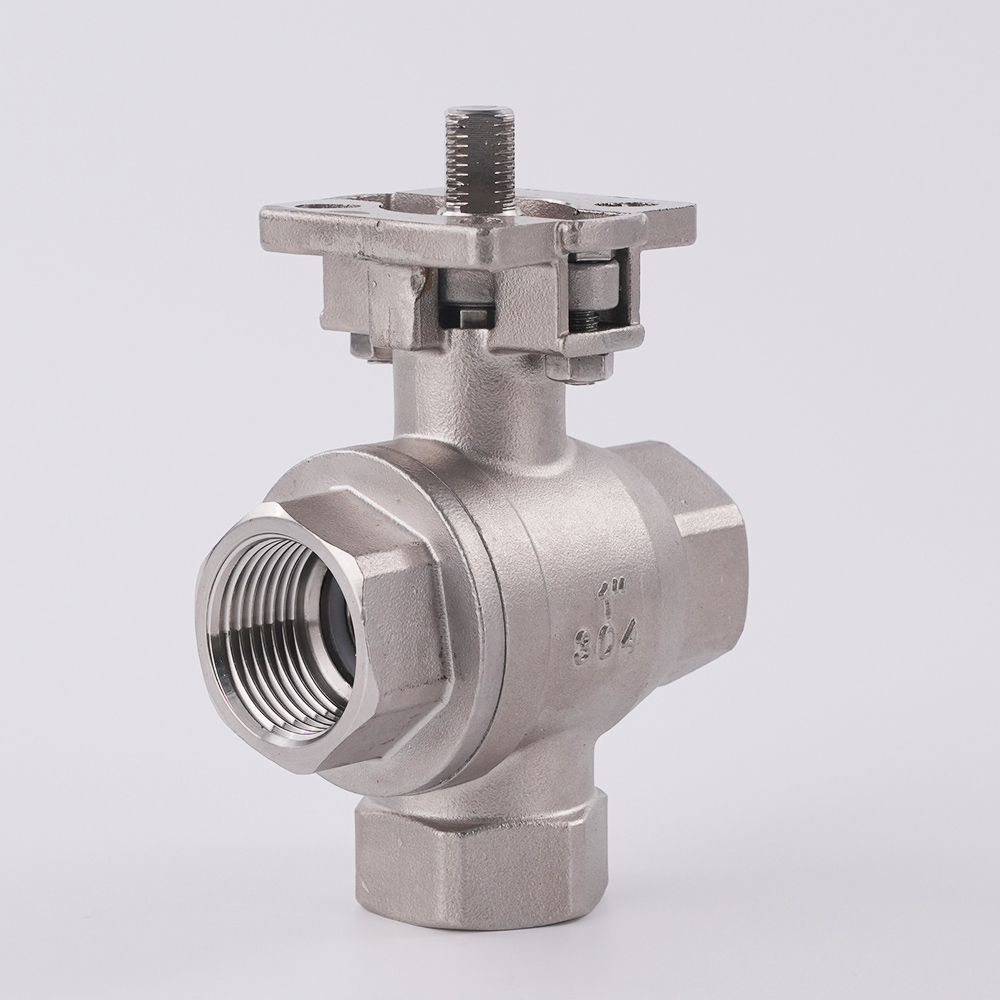

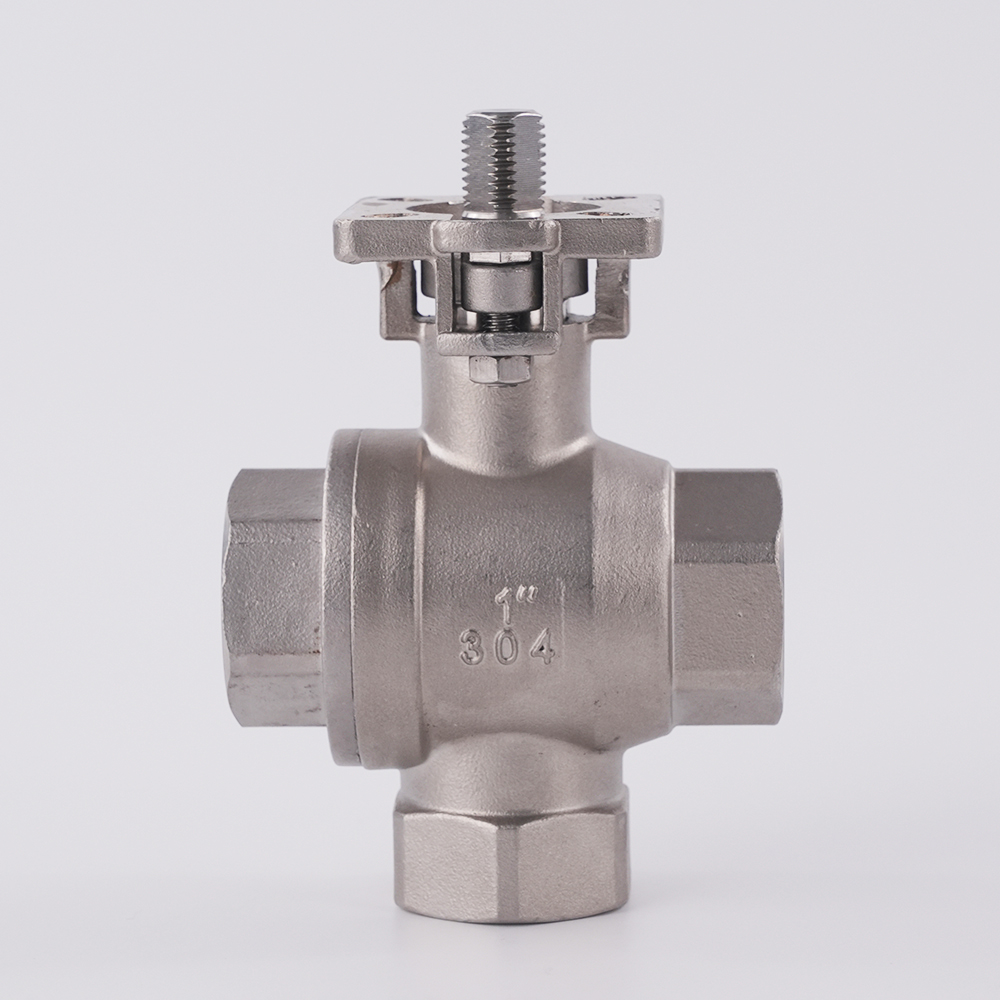

SS304 L-type T-type Three-way Internal Thread Ball Valve

Product name

SS304 Three-Way Female Thread Ball Valve with High Mounting Platform

Model

Q14F-16P / Q15F-16P High Platform Series

Material

SS304 stainless steel body & ball, PTFE sealing seat

Connection

FF triple female internal thread (BSP/NPT optional)

Working Pressure

PN16

Structure

Three-way T-type / L-type flow path, integrated high mounting platform for actuator assembly, two-piece body structure

Applicable Medium

Compressed air, water, gas, light oil and weakly corrosive liquid

Temperature Range

-20℃ ~ 120℃

Processing

Precision investment casting, machined sealing surface, clear body size marking

Seal

PTFE soft seal, bubble-tight zero leakage shut-off

Function

Medium flow diversion, switching and distribution; high platform allows direct installation of pneumatic/electric actuator

Our advantage

Survival by quality and development by credibility.

Quality first, customer foremost !

Full specification stock, OEM drawing customization available

Support L-port / T-port ball core interchange for different flow control requirements

Delivery time

usual 30 days around and can negotiate as per order qty

Shipping port

Ningbo, Shanghai

Term of Payment

30% TT deposit, the balance is paid before shipping the goods

Package detail

inner CTN, outside ply-wooden case

MOQ

10 PCS/size

Guarantee Period

18 months
