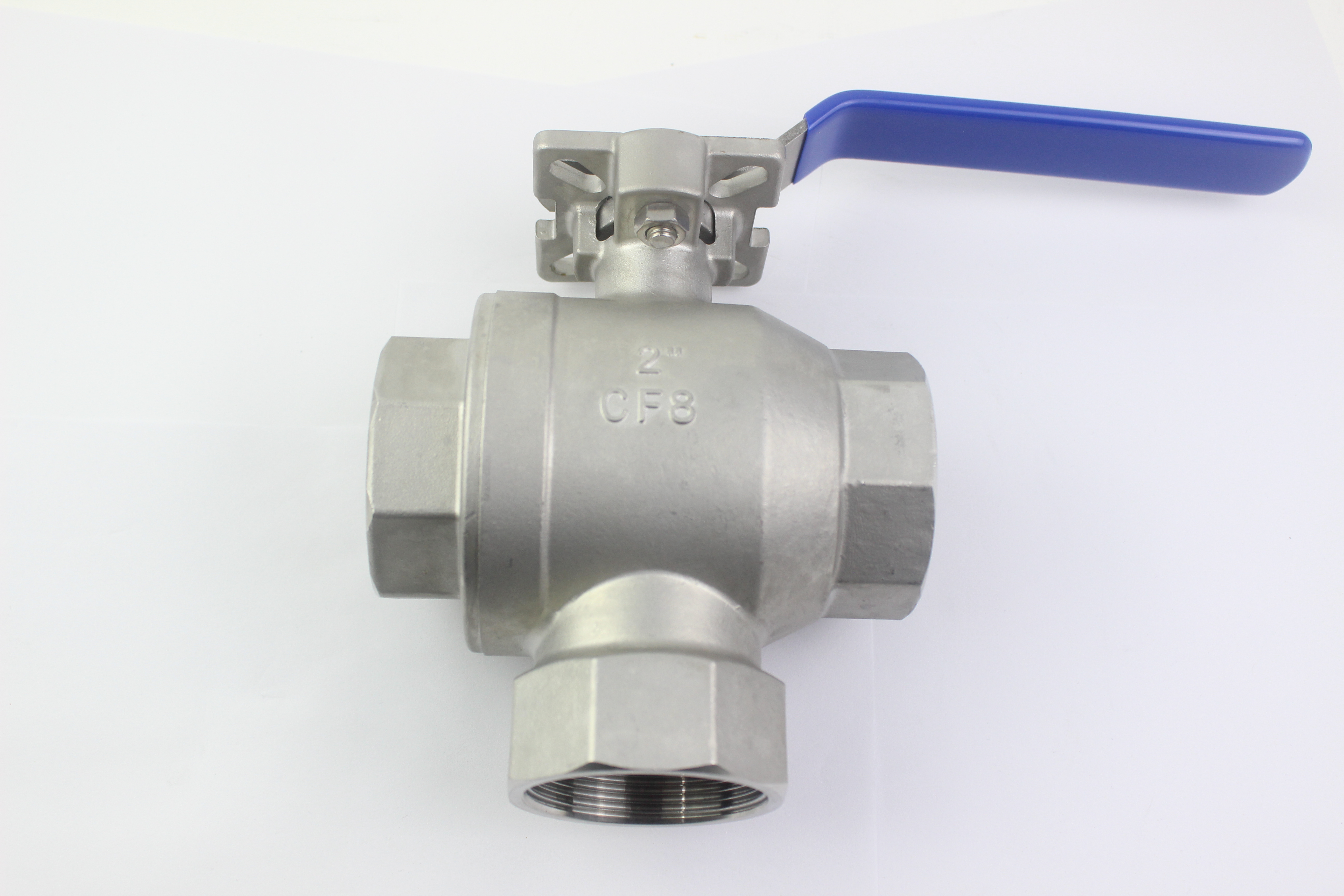

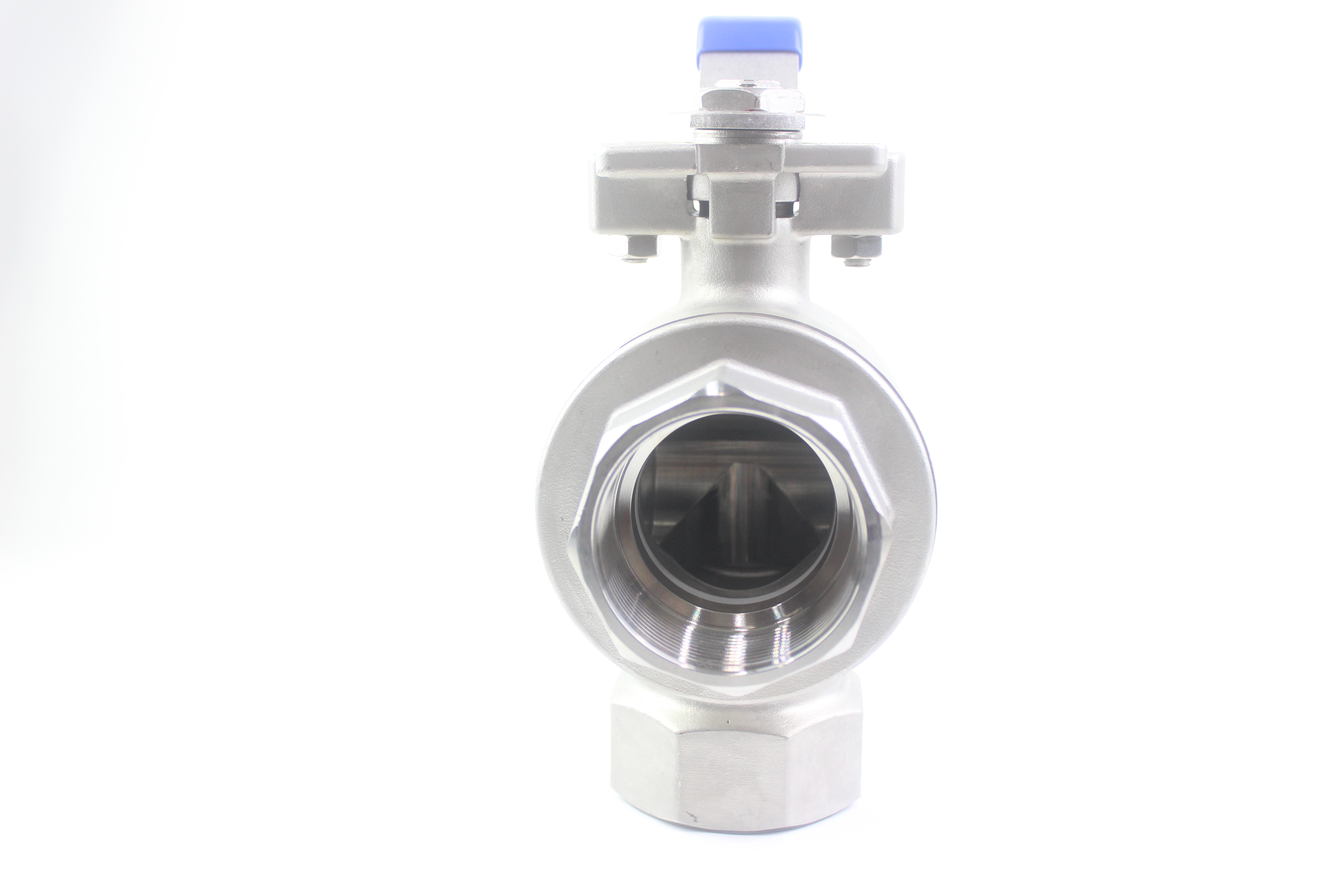

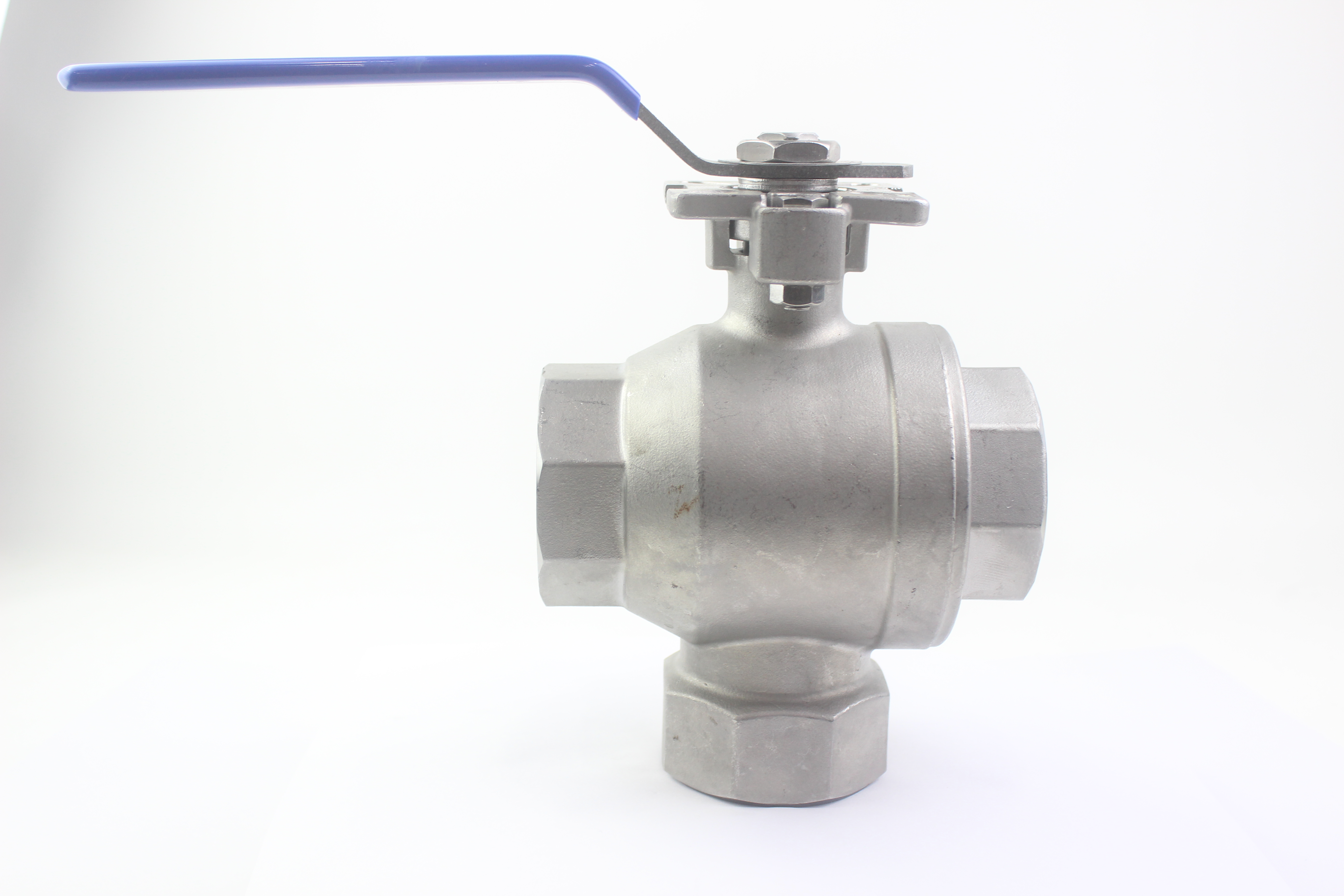

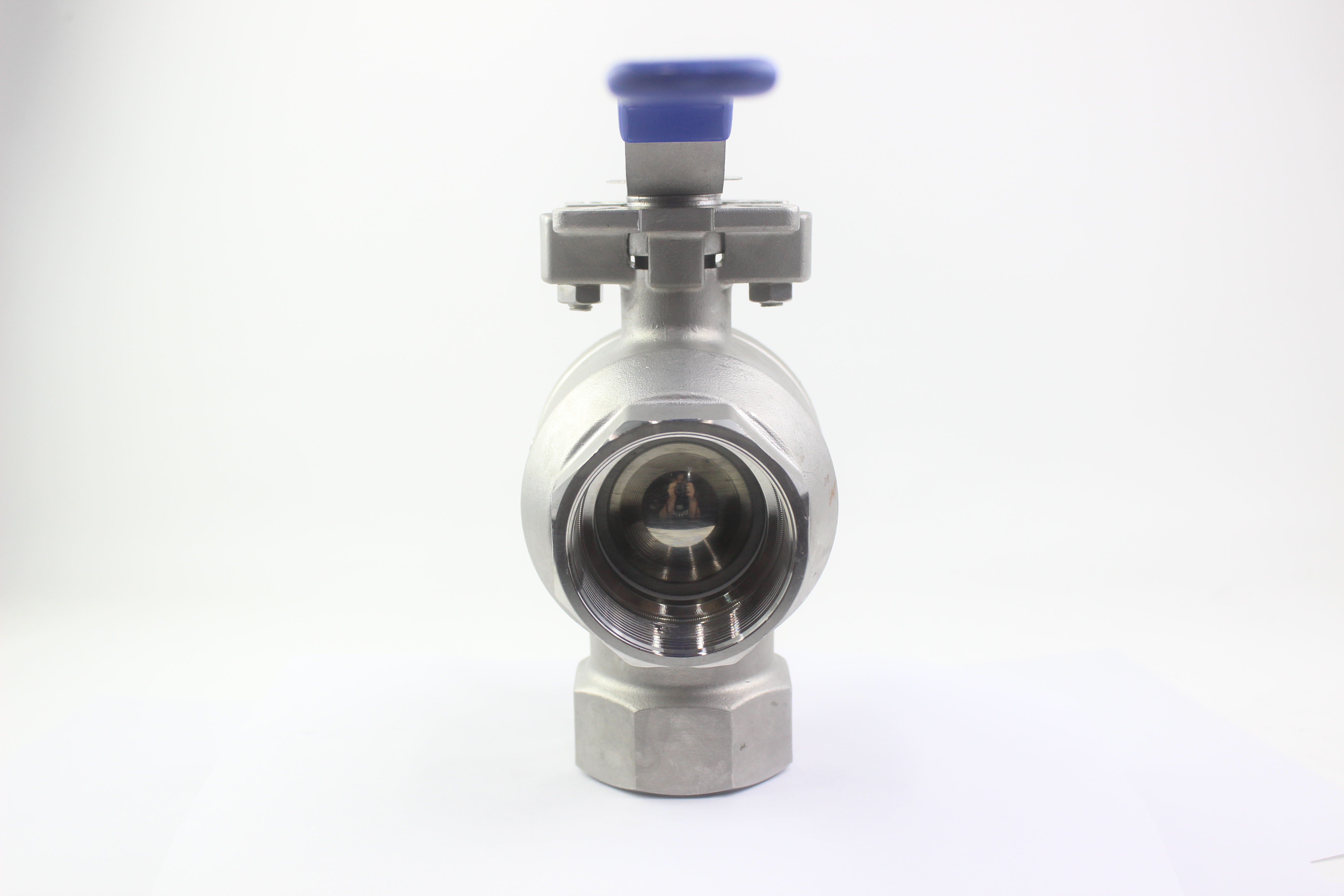

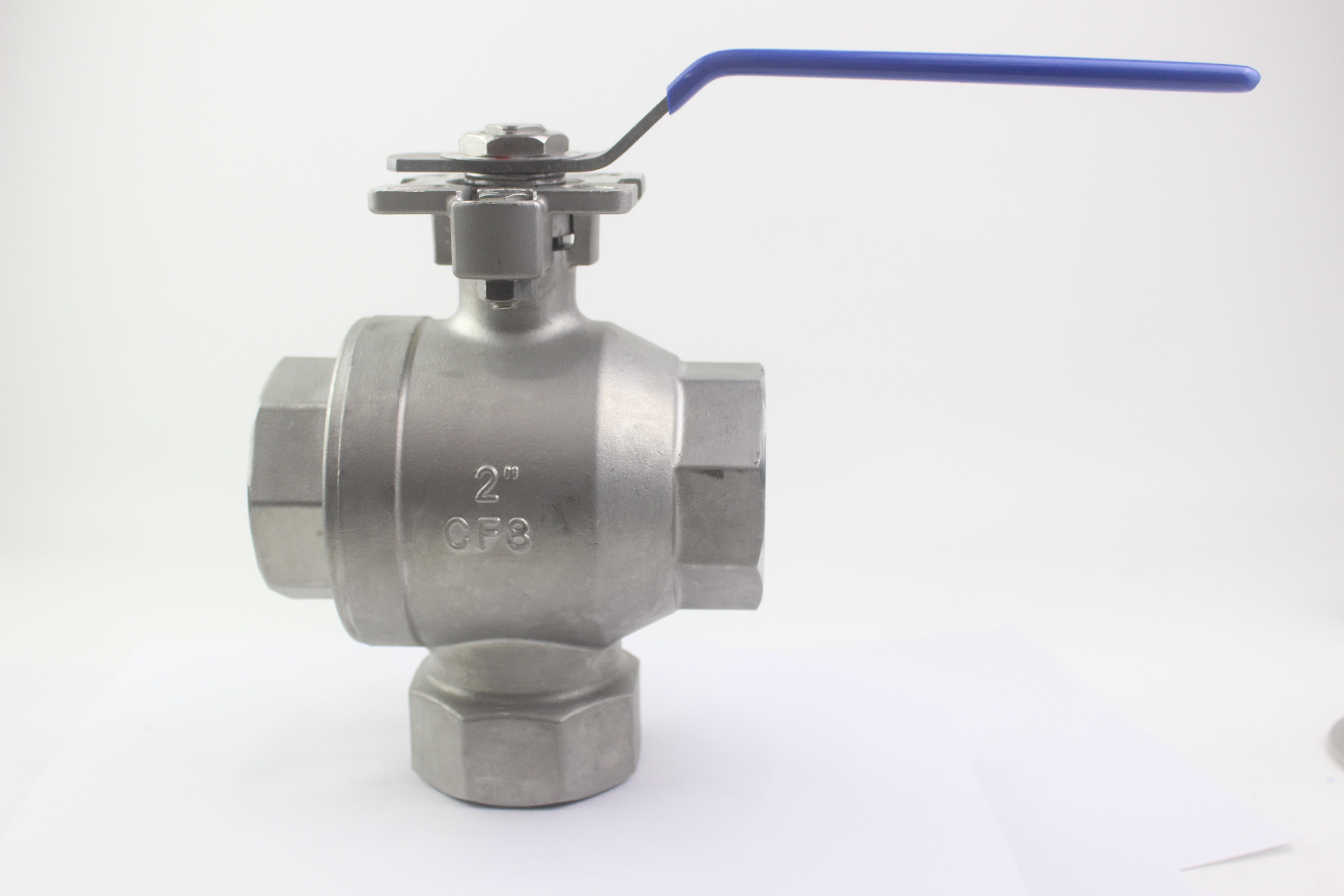

Vertical Three-way Ball Valve

The vertical three-way ball valve features a compact design for efficient flow control in piping systems. Its 90° or 180° port configuration allows for versatile flow direction switching—diverting, mixing, or shutting off media. Constructed from durable materials like stainless steel, it ensures high pressure and temperature resistance. The precision-machined ball ensures tight sealing with low torque operation. Suitable for oil, gas, water, and chemical applications, this valve offers reliable performance, easy maintenance, and long service life. Available in threaded or flanged connections for flexible installation.

Availability:

Quantity:



Inquire Add to Basket

Brand:
YUZHENG

Product Description

Introduction:The vertical three-way ball valve features a compact design for efficient flow control in piping systems. Its 90° or 180° port configuration allows for versatile flow direction switching—diverting, mixing, or shutting off media. Constructed from durable materials like stainless steel, it ensures high pressure and temperature resistance. The precision-machined ball ensures tight sealing with low torque operation. Suitable for oil, gas, water, and chemical applications, this valve offers reliable performance, easy maintenance, and long service life. Available in threaded or flanged connections for flexible installation.

Key Features:

Durable Construction: Crafted from stainless steel, ensuring resistance to corrosion and wear.
Precise Control: Equipped with a handle and lock mechanism for secure and precise operation.
Versatile Applications: Suitable for a wide range of industrial applications, including water, oil, and gas systems.
Easy Installation: Features a mounting pad for convenient and secure installation.
Temperature Range: Operates effectively within a temperature range of -20°C to 232°C.
Pressure Rating: Rated for up to 1000 psi (6.4 MPa), ensuring robust performance under high pressure.

Technical Specifications:

Material: Stainless Steel (SS304, SS316, CF8, CF8M)
Size Range: 1/4" to 4" (DN6 to DN100)
Connection Types: Threaded (DIN2999, DIN259, BSPT, BSP, NPT), Butt Welded, Socket Welded
Sealing Material: PTFE, RPTFE, PPL
Stem Material: SS201, SS304, SS316
Handle Material: SS304

Applications:This valve is widely used in various industries such as oil and gas, chemical processing, water treatment, HVAC systems, and more. It is ideal for applications requiring high precision and reliability in fluid control.
