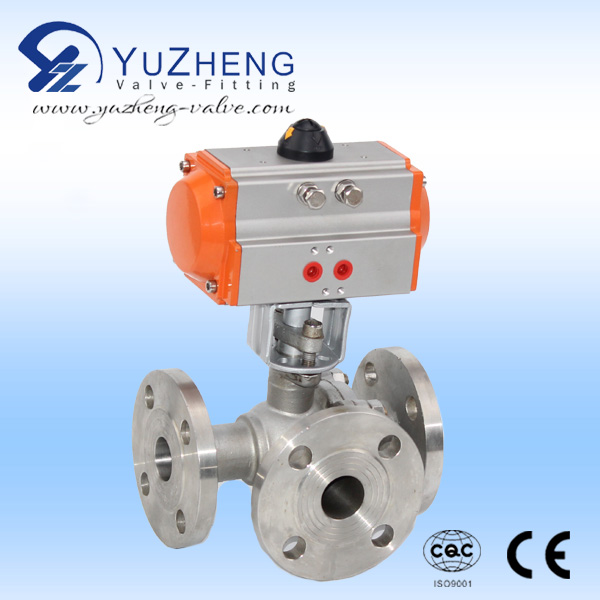

3Way Stainless Steel Ball Valve with Mounting Pad New Type

Availability:
Quantity:
  • Q14F/Q15F

Size: 1/2-4"
Working pressure: 1.6-6.4mPa
Temperature range: -20° C ~ 232° C ~ 350° C
Suitable medium: Water, oil, air, some corrosive liquid
Thread type: ZG. G, NPT, BSPT, BSP, DIN259/2999
Ball have T type and L type
ISO5211 mounting pad

Product name 3WAY STAINLESS STEEL BALL VALVE
Material SS304, 304L, 316, 316L
Size 1/4-4&DN6-DN100
Certificate ISO9001: 2000,CE
Working pressure 1000psi(6.4MPa)
Connection Ends Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW).
Suitable medium Water, gas, air and some corrosive liquid
Temperature Range -20-300 degree C
Investment casting body and cap
Sealing PTFE, RPTFE, PPL
stem SS304,SS316   Adjustable stem packing,
Locking option
Our advantage Survival by quality and development by credibility.
Quality first, customer upmost !

100% leakage tested at 100 psi air under water

Blow-out proof stem, ball are made of ss316 or customer request

Pure Teflon seals and seats

Can do OEM products
Delivery time usually 30 days around and can negotiate as per order qty
Shipping port Ningbo , Shanghai
Term of Payment 30% TT deposit, the balance against copy of B/L
Package detail Inner CTN, outside plywood case
Guarantee Period 18 monthes
Capacity to produce 100,000 PCS/week

PACKAGEPRODUCTION FLOWPRODUCTION LINE
