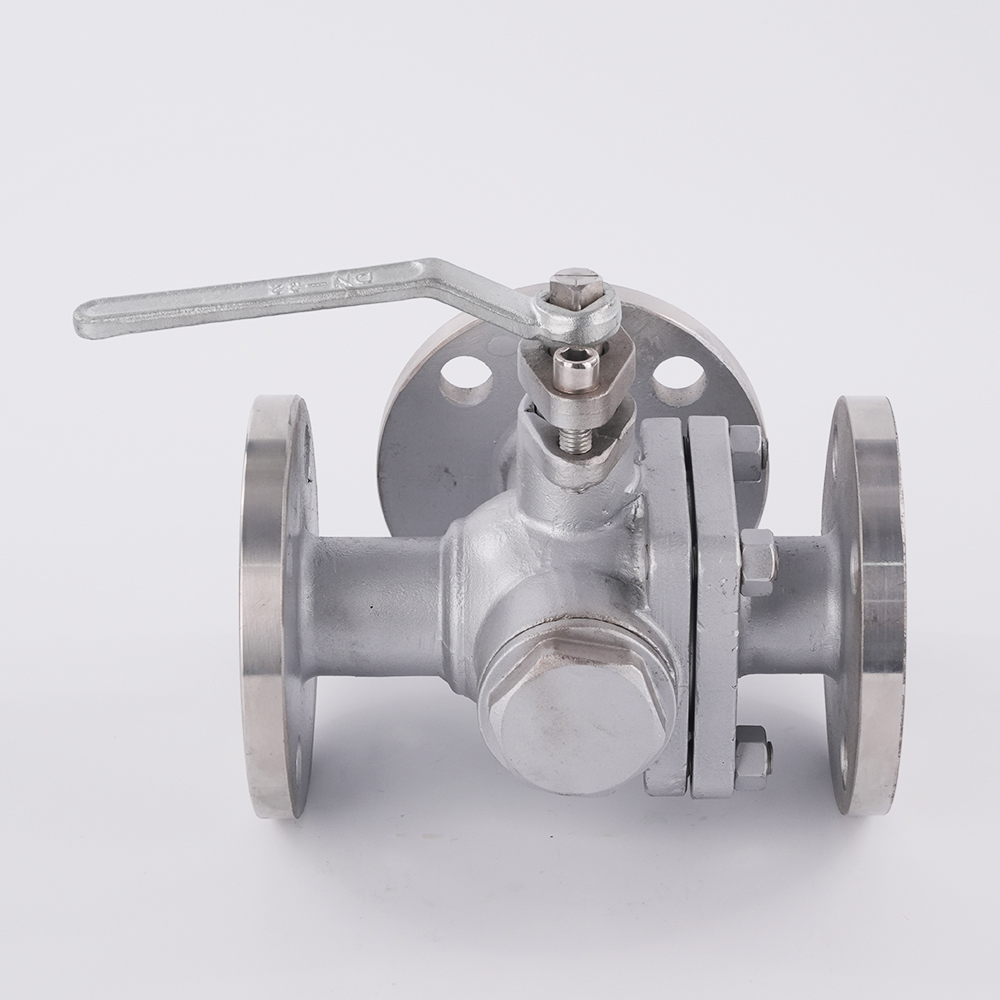

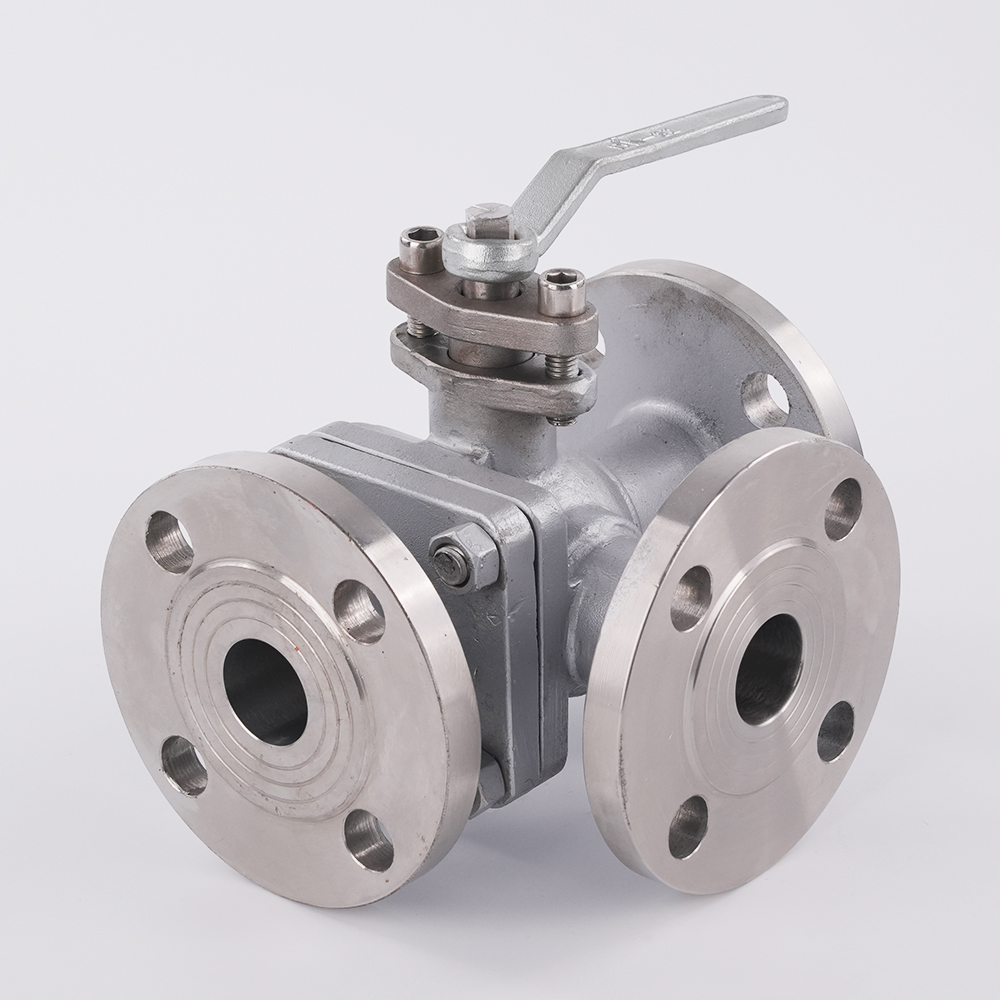

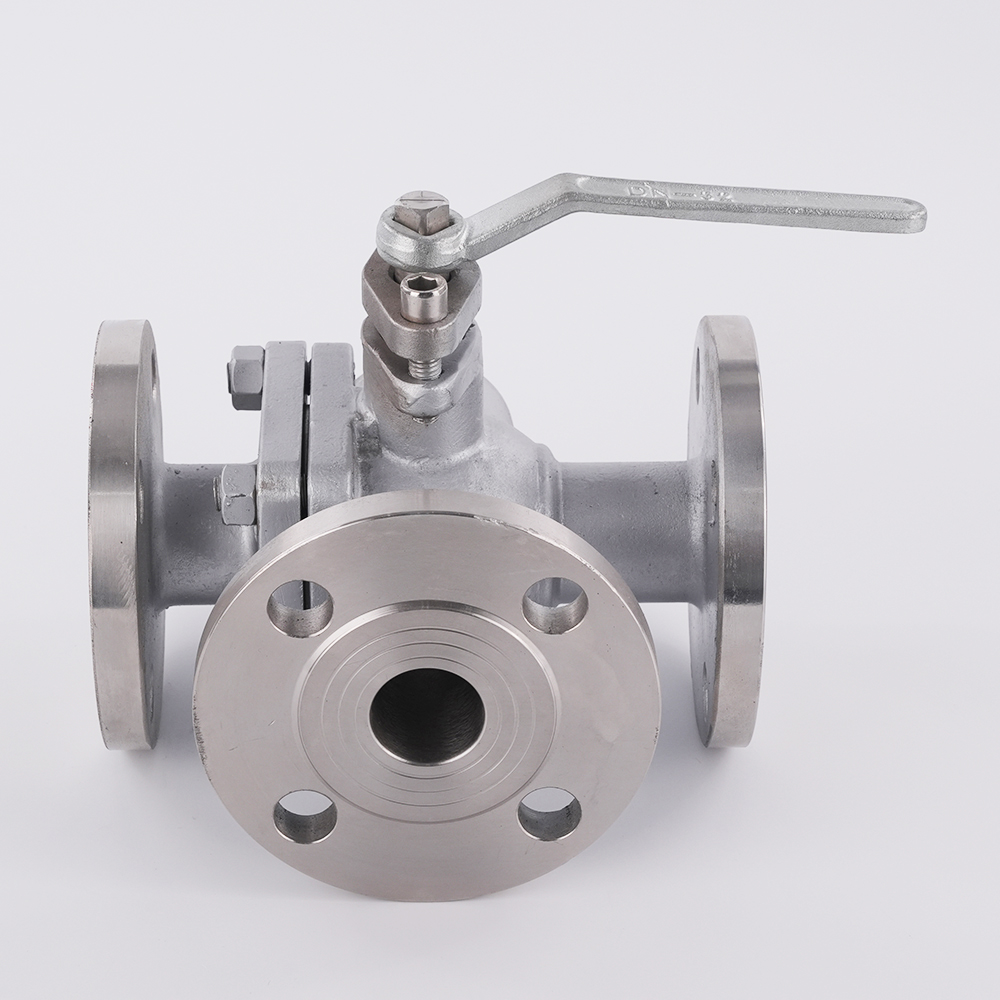

CF8 Stainless Steel 3-Way Flanged Ball Valve (L-port / T-port Optional)

Product name

CF8 Stainless Steel 3-Way Flanged Ball Valve (L-port / T-port optional)

Model

Q44F-16P (L-type) / Q45F-16P (T-type) Series

Material

Body & Ball: CF8 (SS304); Stem: SS304; Seat: PTFE/RPTFE

Connection

RF flanged ends, GB standard flange

Nominal Pressure

PN16

Structure

Three-way flow channel, split two-piece body, fitted with manual lever handle; L-port & T-port ball core for different flow switching modes

Applicable Medium

Water, oil, gas and weakly corrosive liquid medium

Temperature Range

-20℃ ~ 180℃

Processing

Precision investment casting, precise machining of sealing surface

Seal Form

PTFE soft seal, reliable shut-off performance

Function

Realize medium flow diversion, mixing and direction switching; L-port for two-way channel switch; T-port for medium diversion or confluence

Our advantage

Survival by quality and development by credibility.

Quality first, customer foremost !

Full specification stock, OEM drawing customization available

Flexible flow switching, convenient pipeline process adjustment

Delivery time

usual 30 days around and negotiable

Shipping port

Ningbo, Shanghai

Term of Payment

30% TT deposit, balance before shipment

Package detail

inner CTN, outside plywood case

MOQ

1 PCS

Guarantee Period

18 months
