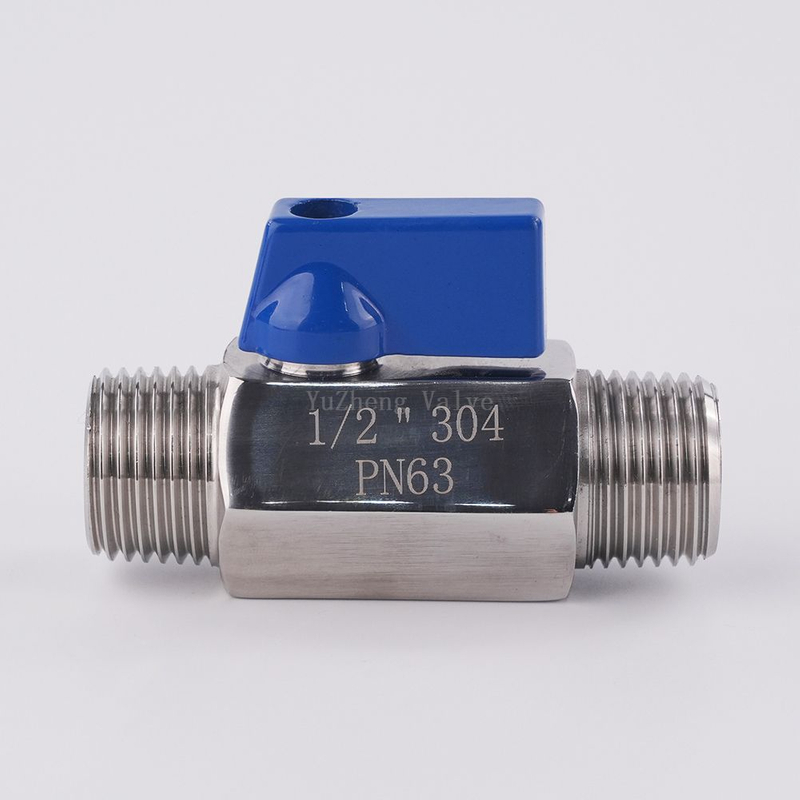

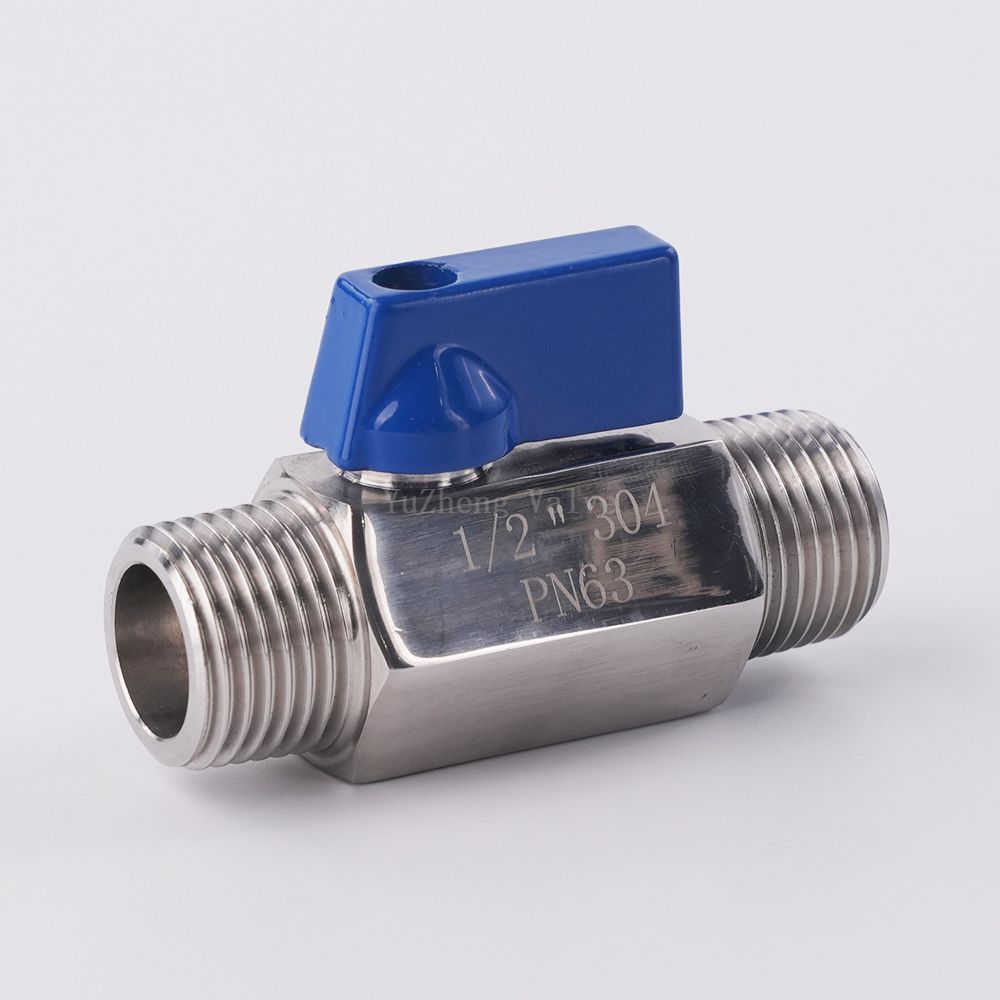

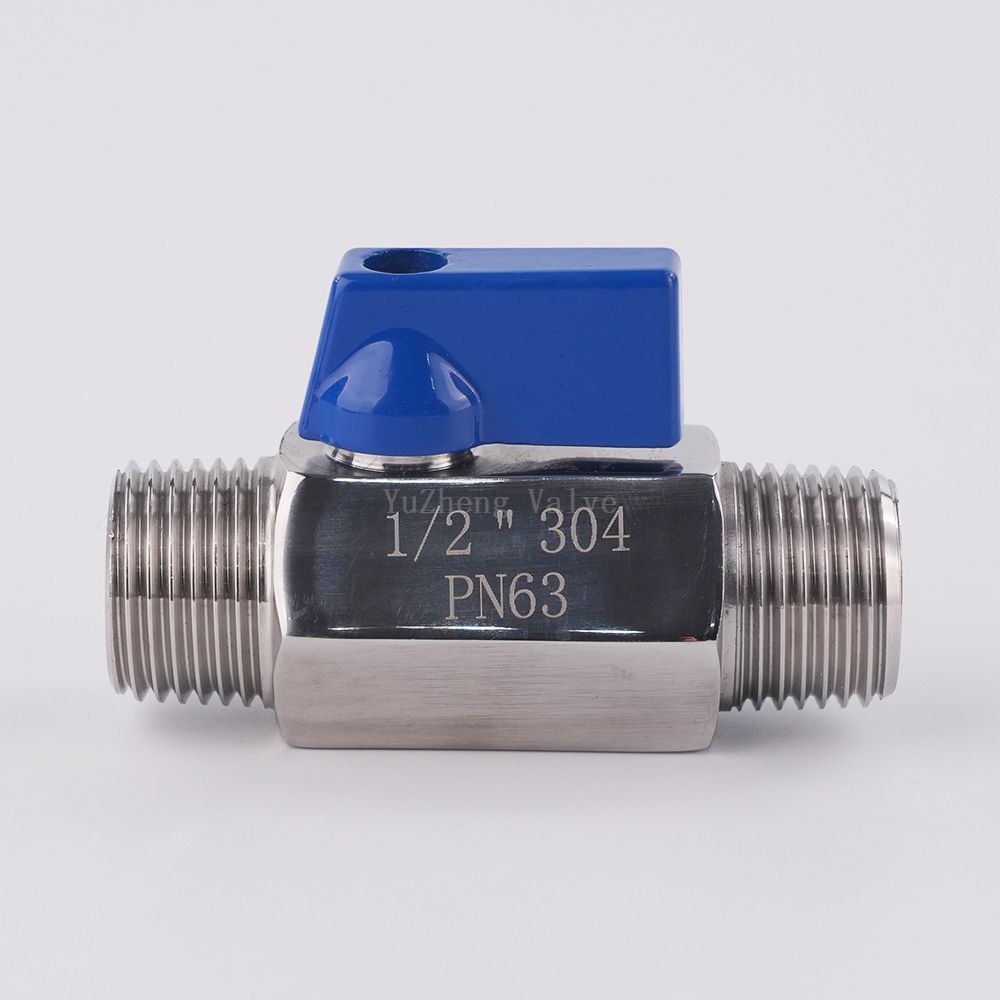

SS304 MM mini ball valve

Product name

SS304 MM Mini Ball Valve (Double Male Thread Mini Ball Valve)

Model

Q11F-64P Mini Series

Material

SS304 stainless steel body & ball, blue plastic mini handle, PTFE sealing seat

Connection

MM double male external thread (BSP/NPT thread optional)

Working Pressure

PN63 (1000 WOG)

Structure

Compact square straight-through body, small integrated plastic lever handle, full bore flow channel

Applicable Medium

Compressed air, water, gas, light oil and weakly corrosive liquid

Temperature Range

-20℃ ~ 120℃

Processing

Precision CNC turning, mirror polished surface, laser engraved size & pressure mark

Seal

PTFE soft seal, bubble-tight zero leakage shut-off

Function

Quick manual on-off control for small instrument and pneumatic pipelines

Our advantage

Survival by quality and development by credibility.

Quality first, customer foremost !

Full specification stock, OEM drawing customization available

Rust-resistant for water supply, pneumatic and small equipment piping

Delivery time

usual 30 days around and can negotiate as per order qty

Shipping port

Ningbo, Shanghai

Term of Payment

30% TT deposit, the balance is paid before shipping the goods

Package detail

inner CTN, outside ply-wooden case

MOQ

10 PCS/size

Guarantee Period

18 months
