Q11F-64P
YUZHENG
Item | Details |
|---|---|

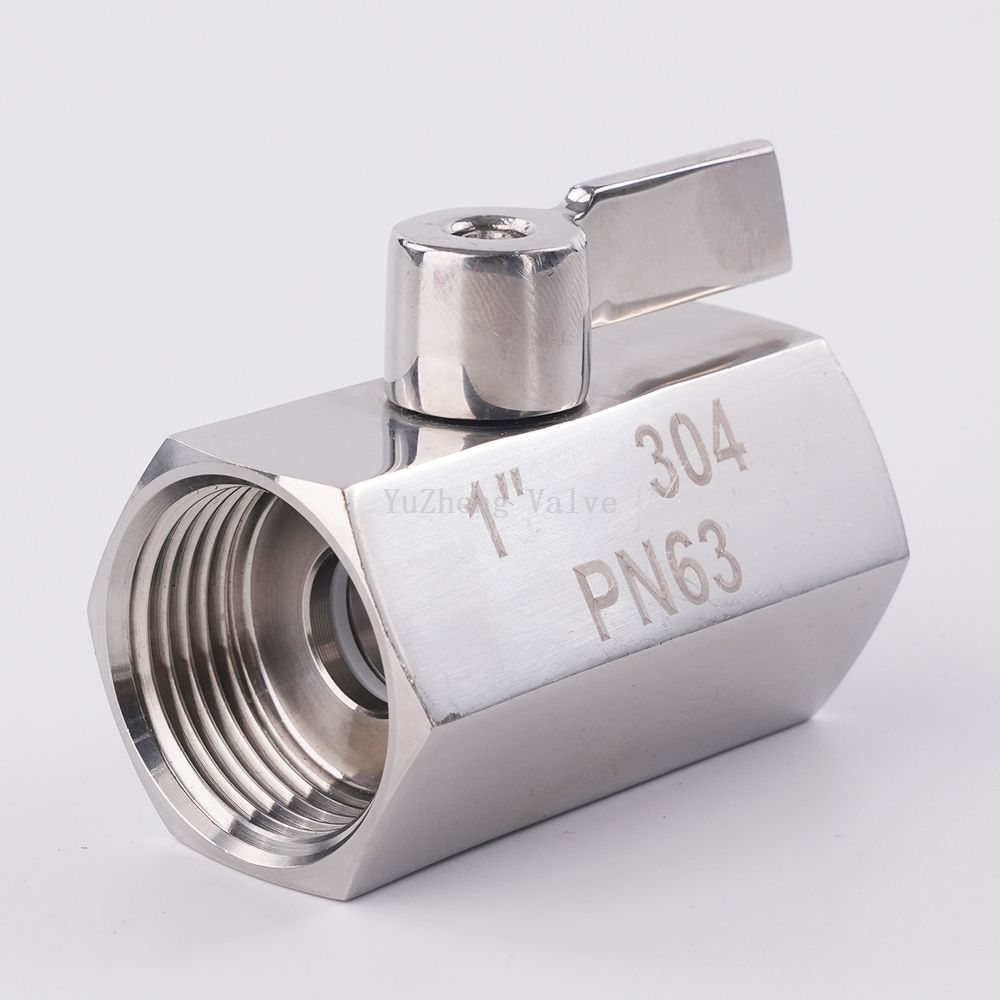

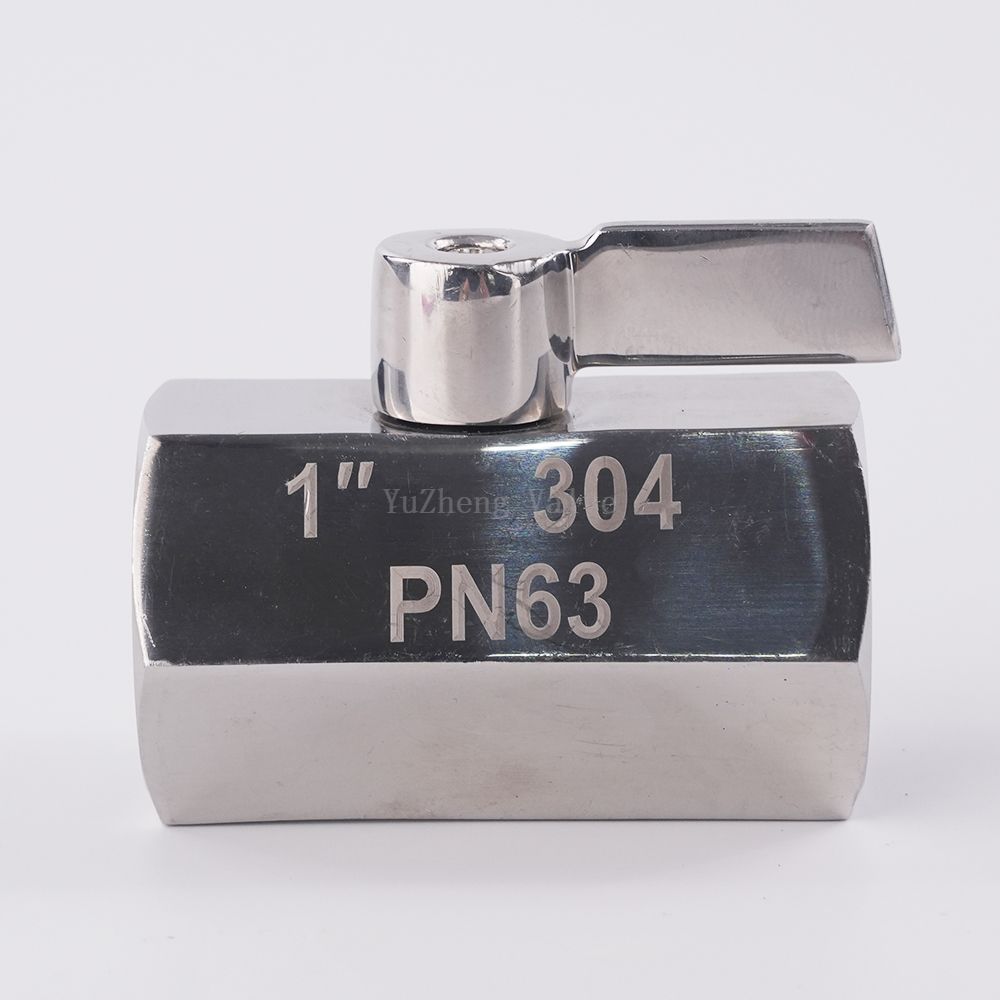

Product name | SS304 FF Mini Ball Valve with Stainless Steel Handle (Double Female Thread Mini Ball Valve) |
Model | Q11F-64P Mini Series |
Material | SS304 stainless steel body, stainless steel metal handle, PTFE sealing seat |
Connection | FF double female internal thread (BSP/NPT thread optional) |
Working Pressure | PN63 (1000 WOG) |
Structure | Hexagonal straight-through body, integrated solid metal stainless steel handle, full bore flow channel |
Applicable Medium | Compressed air, water, gas, light oil and weakly corrosive liquid |
Temperature Range | -20℃ ~ 120℃ |

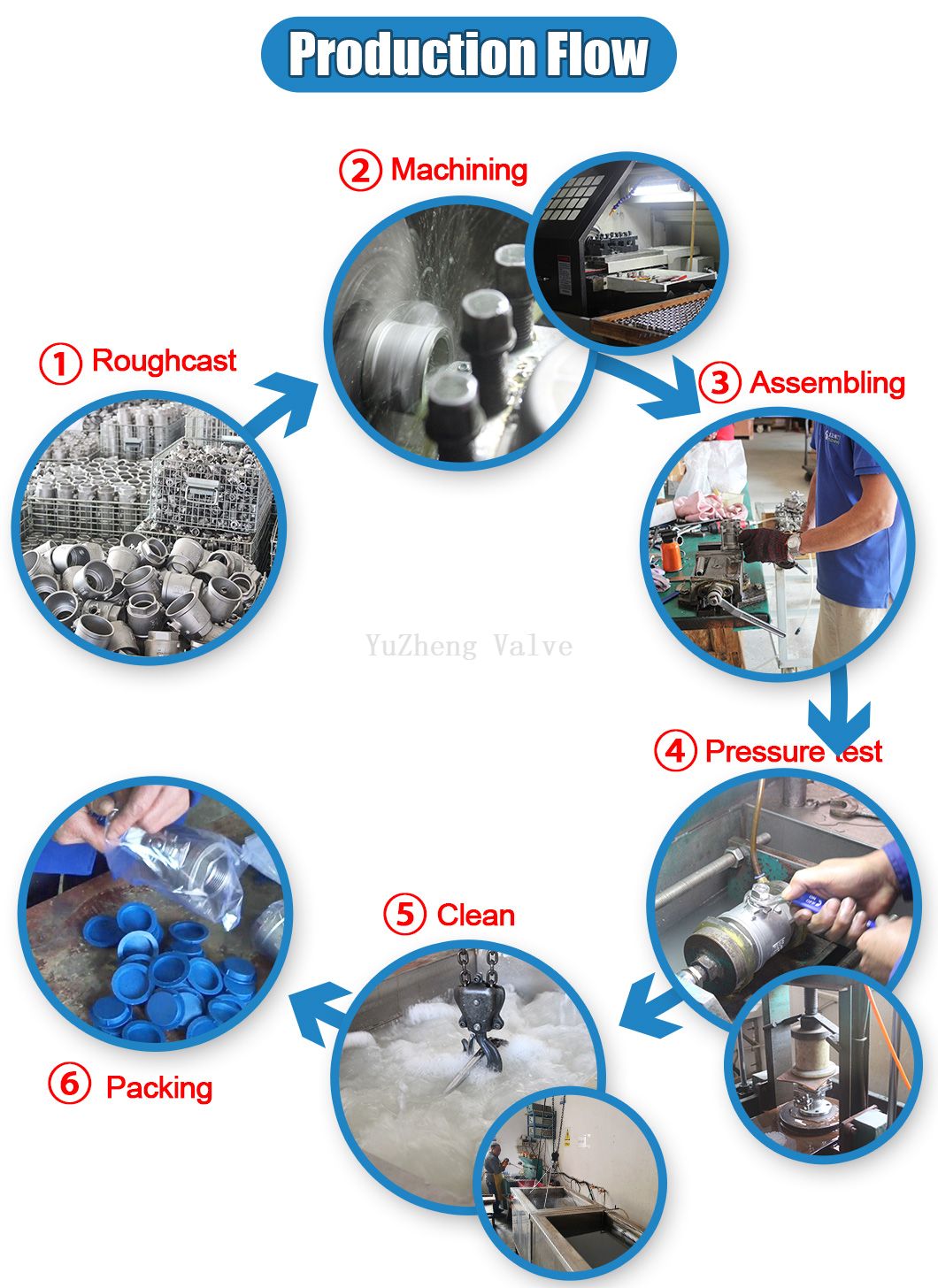

Processing | Precision CNC turning, mirror polished surface, laser engraved size, material & pressure mark |
Seal | PTFE soft seal, bubble-tight zero leakage shut-off |
Function | Quick manual on-off control for water supply, pneumatic and small industrial pipelines |
Our advantage | Survival by quality and development by credibility. Quality first, customer foremost ! Full specification stock, OEM drawing customization available All stainless steel structure, anti-rust and durable for long-term use |
Delivery time | usual 30 days around and can negotiate as per order qty |
Shipping port | Ningbo, Shanghai |
Term of Payment | 30% TT deposit, the balance is paid before shipping the goods |
Package detail | inner CTN, outside ply-wooden case |
MOQ | 10 PCS/size |
Guarantee Period | 18 months |
