HP-FG series
YUZHENG
Item | Details |
|---|---|

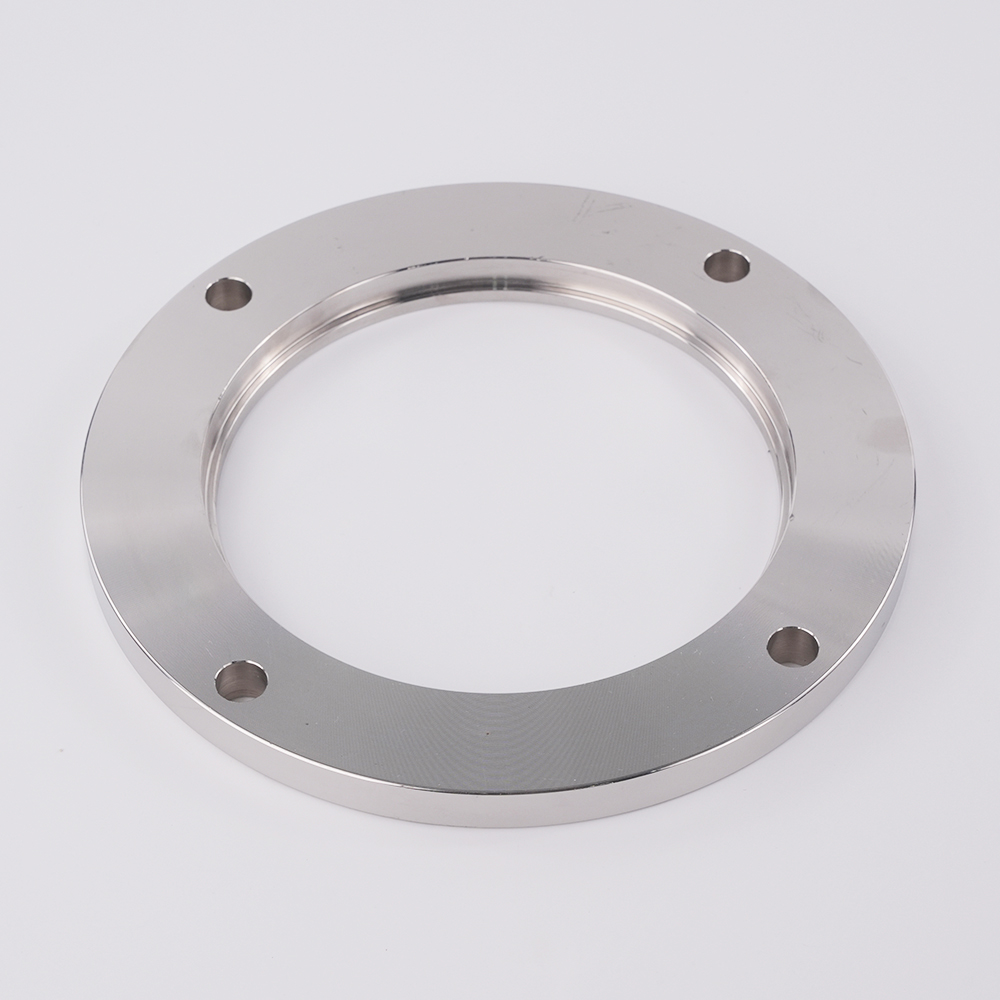

Product name | Stainless Steel High Pressure Flange Spacer / Flange Gasket Ring |
Model | HP-FG Series |
Material | SS304 / SS316L Stainless Steel |
Connection | Matched with standard flange, bolt hole positioning, metal-to-metal sealing |
Pressure Class | PN160 / PN250 / Class1500 high pressure optional |

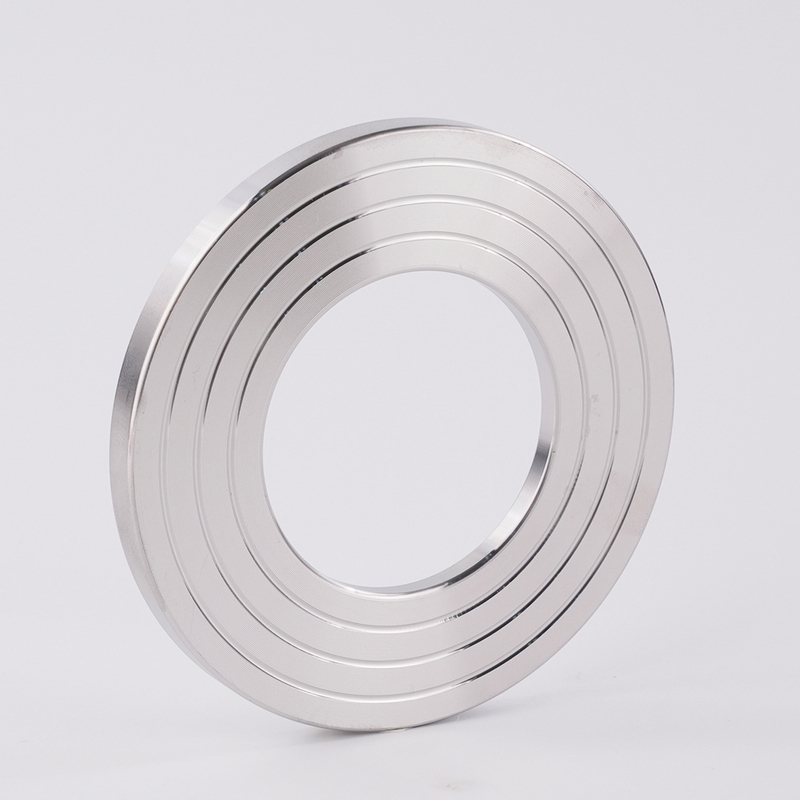

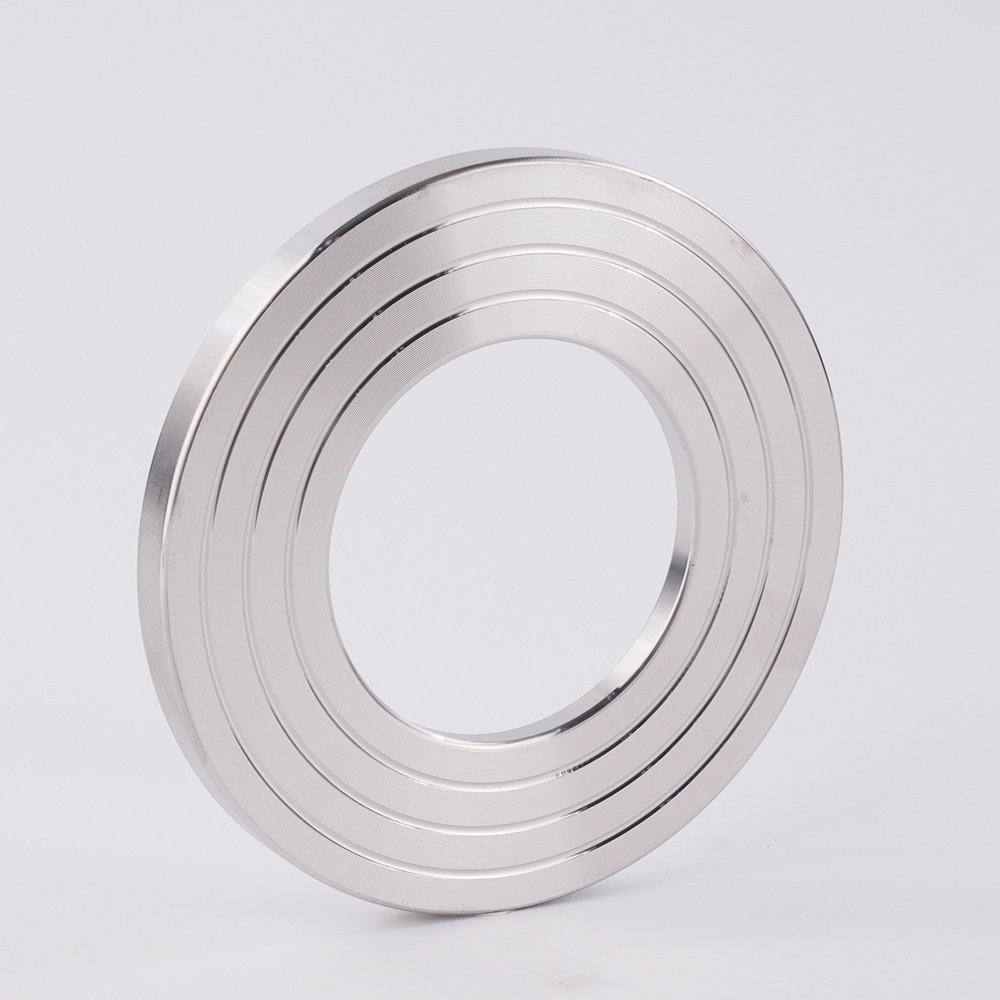

Structure | Solid flat annular ring, optional concentric sealing grooves, precision machined bolt holes |
Applicable Medium | Oil, gas, steam, water, weakly corrosive fluid; high-pressure instrument & hydraulic pipelines |
Temperature Range | -40℃ ~ 425℃ |
Processing | Precision CNC turning, smooth machined sealing surface, deburring |
Seal Form | Metal hard seal; can be used alone or cooperate with soft filler gasket |
Function | Flange sealing, pressure bearing, adjust assembly clearance, prevent leakage under high pressure & vibration |
Our advantage | Survival by quality and development by credibility. Quality first, customer foremost ! Full specification stock, OEM drawing customization available Anti-rust, high pressure and temperature resistant for petrochemical, power and energy industry |
Delivery time | usual 30 days around and can negotiate as per order qty |
Shipping port | Ningbo, Shanghai |
Term of Payment | 30% TT deposit, the balance is paid before shipping the goods |
Package detail | inner CTN, outside ply-wooden case |
MOQ | 10 PCS/size |
Guarantee Period | 18 months |
